Kroeplin

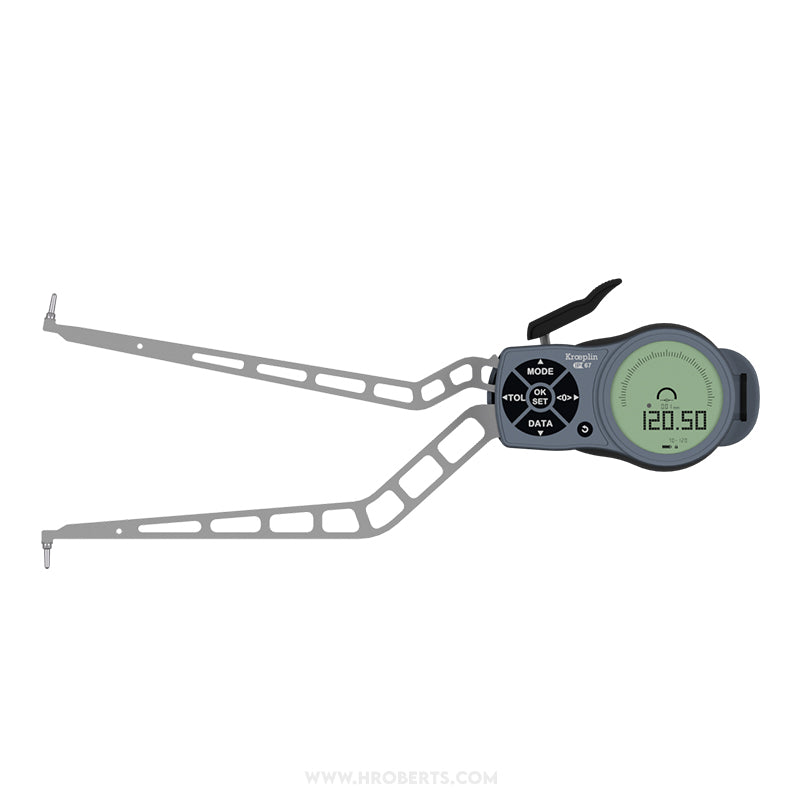

L470 Digital Internal Caliper Gauge, Range 70-120mm, Resolution 0.001, 0.002, 0.005, 0.01, 0.02, 0.05mm, Measuring Depth 192mm, Measuring Contact Ball 2mm Diameter, IP67 Protection, Metric / Imperial Switchable
SKU:Code: L470
Sale
Sold out
Regular price
£611.00
Save:
Sold out
Sale price
£611.00
Regular price
£611.00
Excl. VAT
Electronic Length Measuring Instrument for Internal Measuements
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Internal
- range 70-120mm
- display type Digital
- resolution 0.001 0.002 0.005 0.01 0.02 0.05mm
- max grove depth 8.3mm
- max measuring depth 192mm / 7.6"
- measuring units Metric / Imperial
- max permissible errors 0.05mm
- repeatability 0.03mm
- range imperial 2.75-4.72"
- resolution imperial 0.00005 0.0001 0.0002 0.0005 0.001 0.002"
- measuring contact moveable hb 8.5mm
- min groove width 2.5mm
- measuring contact Ball 2mm Diameter
- drawing 5
description
description
Wherever geometric complexity rules out the use of conventional equipment such as calipers or internal micrometers, Kroeplin gauges are the perfect and inexpensive solution. Mechanical and electronic lever gauges are used in the metalworking industry and many other sectors.
