Mitutoyo

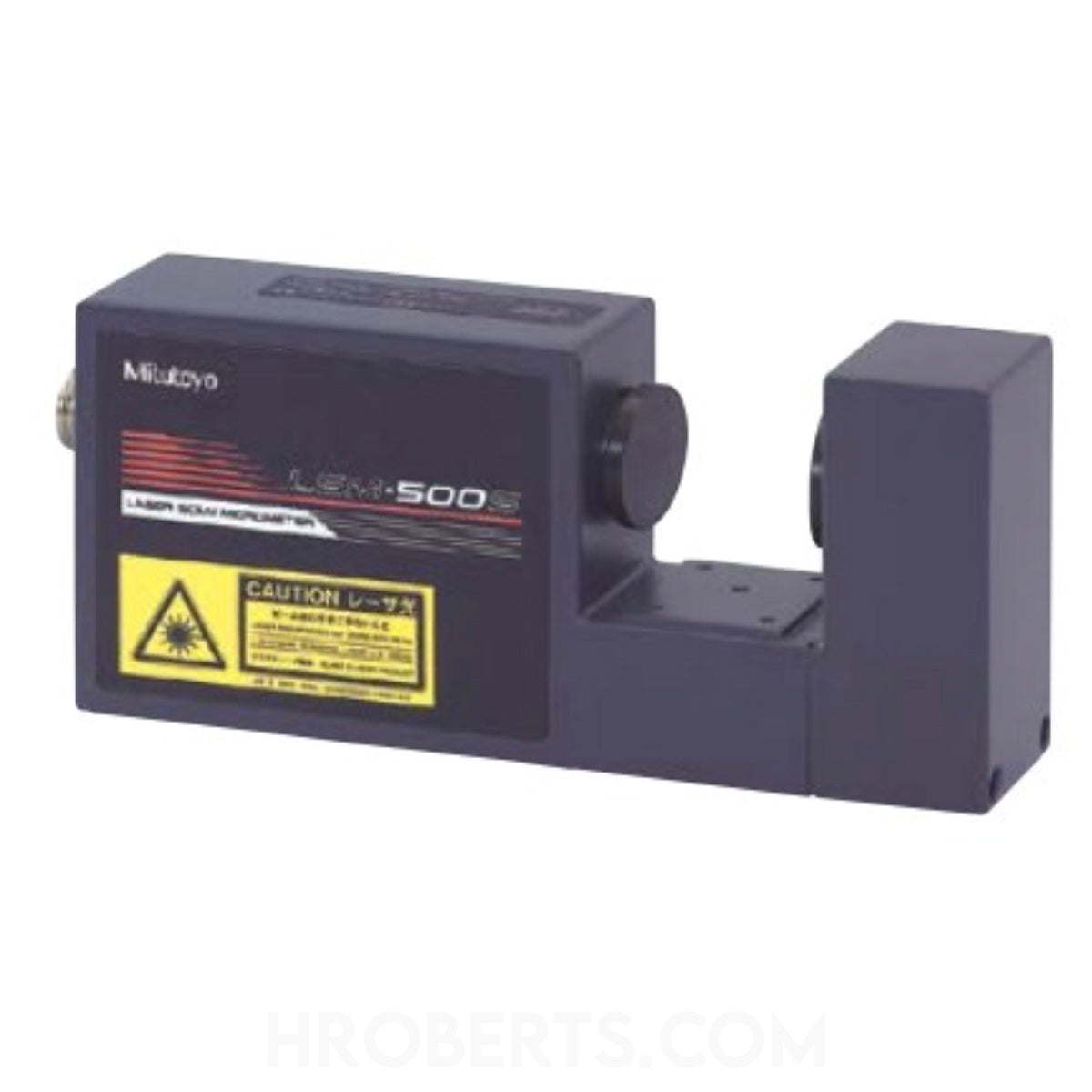

544-532 LSM-500S Ultra-High Accuracy Non-Contact Measuring System, Laser Scan Micrometer, Range 0.005-2mm / 0.0002-0.08", Resolution 0.00001-0.01mm / 0.000001-0.0005"
SKU:Code: 544-532
Sale
Sold out
Regular price
£5,740.00
Save:
Sold out
Sale price
£5,740.00
Regular price
£5,740.00
Excl. VAT
Permits measurements starting from ø5 μm. Provides ultra-high accuracy of ±0.3 μm over the entire measuring range (5 μm to 2 mm). Ultra-high repeatability of 0.03 μm.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- range 0.005-2mm / 0.0002-0.08"
- display type Digital
- graduations 0.00001-0.01mm / 0.000001-0.0005"
- measuring units Metric / Imperial
- measuring region 1 x 2 mm
- laser wavelength 650 nm visible
- scanning rate 3200 scans/s
- laser scanning speed 76 m/s
description
description
High Accuracy Non-contact Measuring System
Measuring range starting from ø5 μm.
Provides ultra-high accuracy with a linearity of ±0,3 μm over the entire measuring range (5 μm up to 2 mm).
Ultra-high repeatability of ±0,03 μm.
High scanning rate of 3200 scans/s
