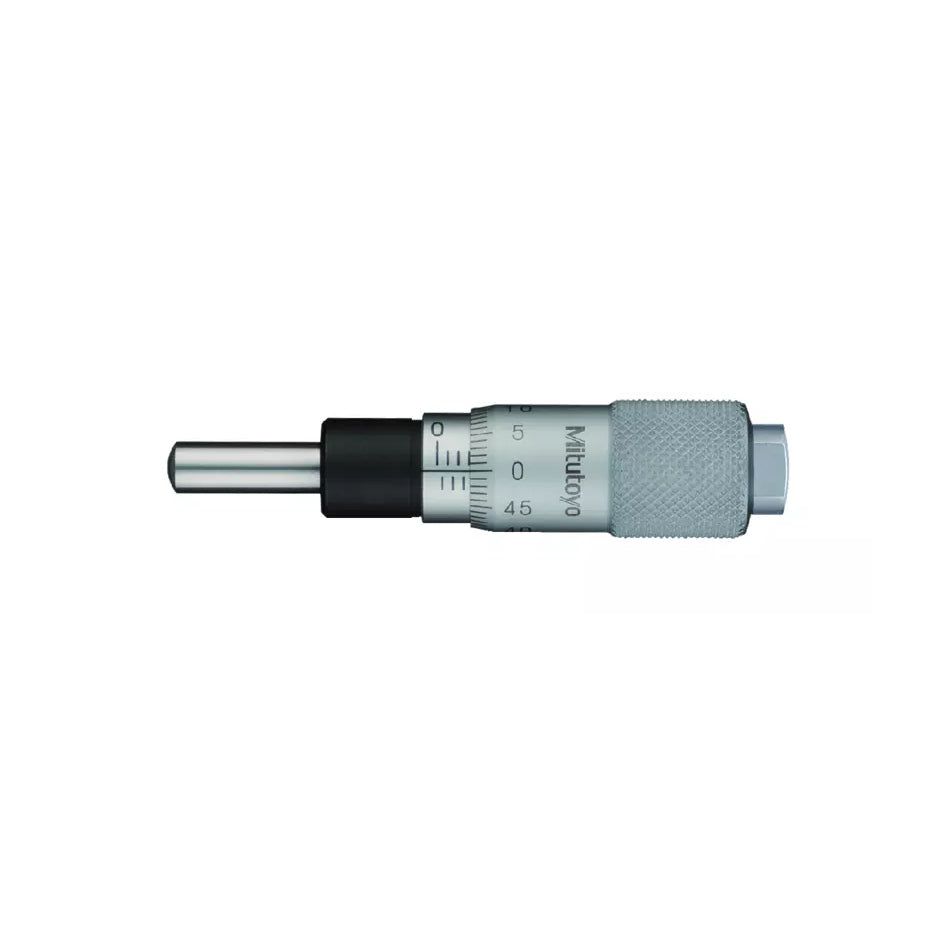

Mitutoyo 148-801-10 Small Micrometer Head, Range 0-13mm, Graduation 0.01mm
SKU:Code: 148-801-10
This item is no longer available or has been discontinued.
Short body design maintains measuring range for limited space applications.
Need more information? Ask a question or contact us.
Specification
Specification
- type Small
- range 0-13mm
- display type Non-Digital
- graduations 0.01mm
- measuring units Metric
- spindle end Spherical
- stem dia 9.5mm
- stem type Plain
- remarks Standard
- max permissible errors ±2 μm
- measuring face Hardened Steel
- brand Mitutoyo
description
description
A small, standard, non-digital Mitutoyo micrometer head with plain Ø 9.5mm stem and spherically radiused spindle tip.
