Images are for illustration purposes only - Products may differ.
Mitutoyo

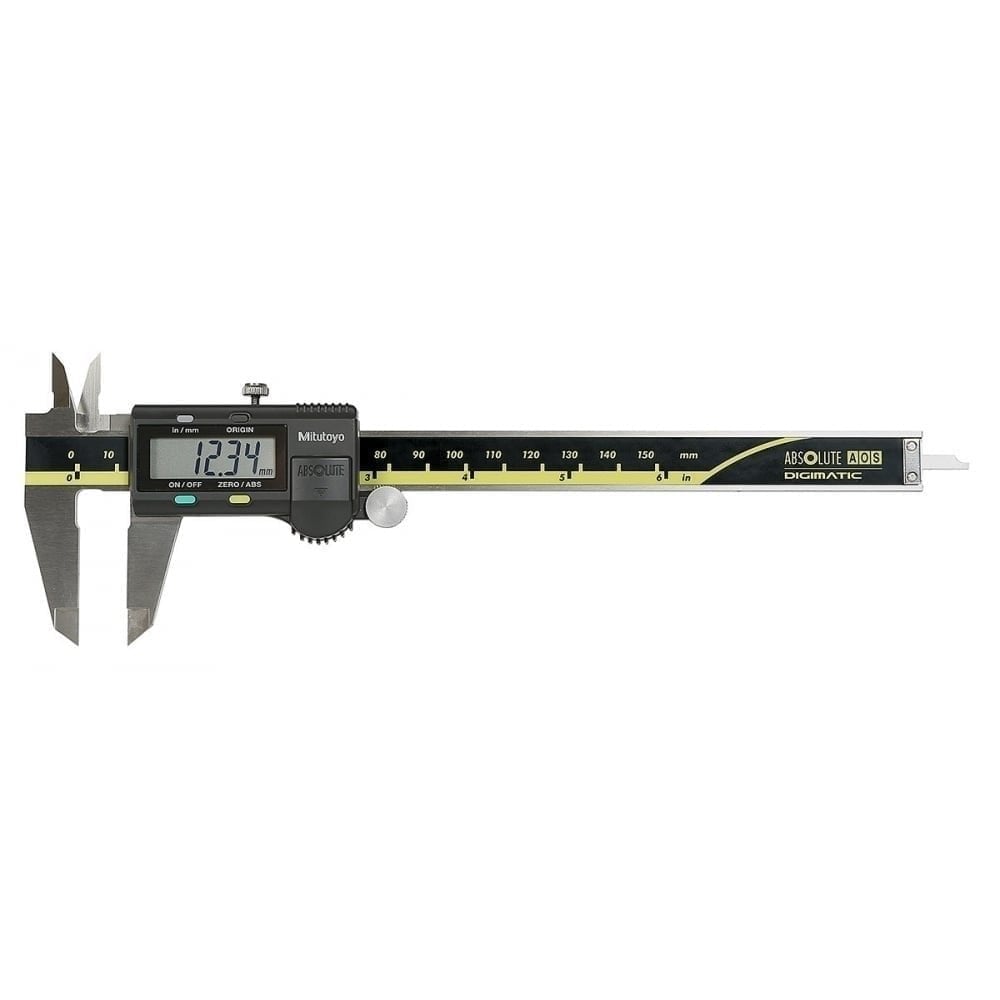

500-196-30 Digital Caliper, 0-150mm / 0-6" Range, Digimatic, Resolution 0.01mm / 0.0005", Absolute System
SKU:Code: 500-196-30
Sale
Sold out
Regular price
£80.00
Save: 43%
Sold out
Sale price
£80.00
Regular price
£140.00
Excl. VAT
A Mitutoyo digital caliper equipped with standard outside and inside jaws. ABSOLUTE AOS System scale for error free, high-speed measurement.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Standard
- range 0-150mm / 0-6"
- display type Digital
- resolution 0.01mm / 0.0005"
- data output No
- measuring units Metric / Imperial
- remarks Including box
- max permissible errors E MPE ±0.001" / S MPE ±0.002"
- power supply Low Voltage Alarm
- battery life 5 Years under normal use
- mass 168g
- battery SR44
- abs measure system Yes
- power supply Low Voltage Alarm
- calibration Comes with Certificate of Inspection
- bluetooth No
- max response speed Unlimited
- depth bar Flat Blade
- origin seting Yes
- series CD-6”ASX
- calibration Comes with Certificate of Inspection
- country of origin Japan
description

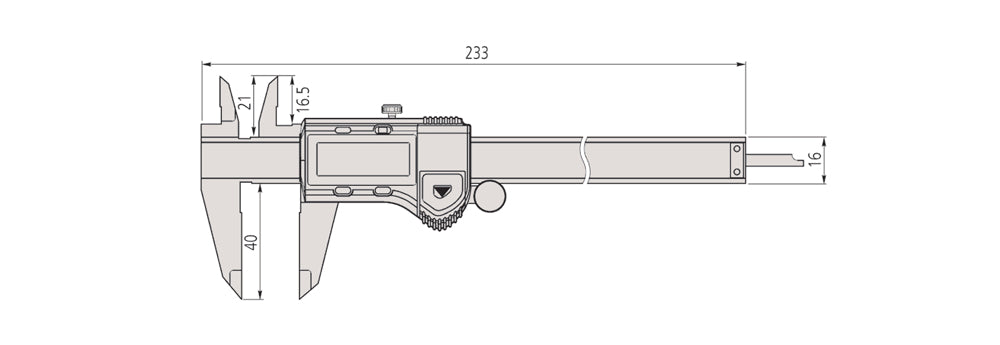

technical drawings
PDF downloads
accessories
description
- The ZERO/ABS button allows the display to be Zero-Set at any slider position along the scale for comparison measurements. This button will also allow return to the absolute (ABS) mode and display of the true position from the origin (usually jaws closed point). Large and clear LCD readout with 20,000 hours battery life. Smooth slider movement makes for comfortable operation. Can measure outside and inside dimensions, depth, and steps.

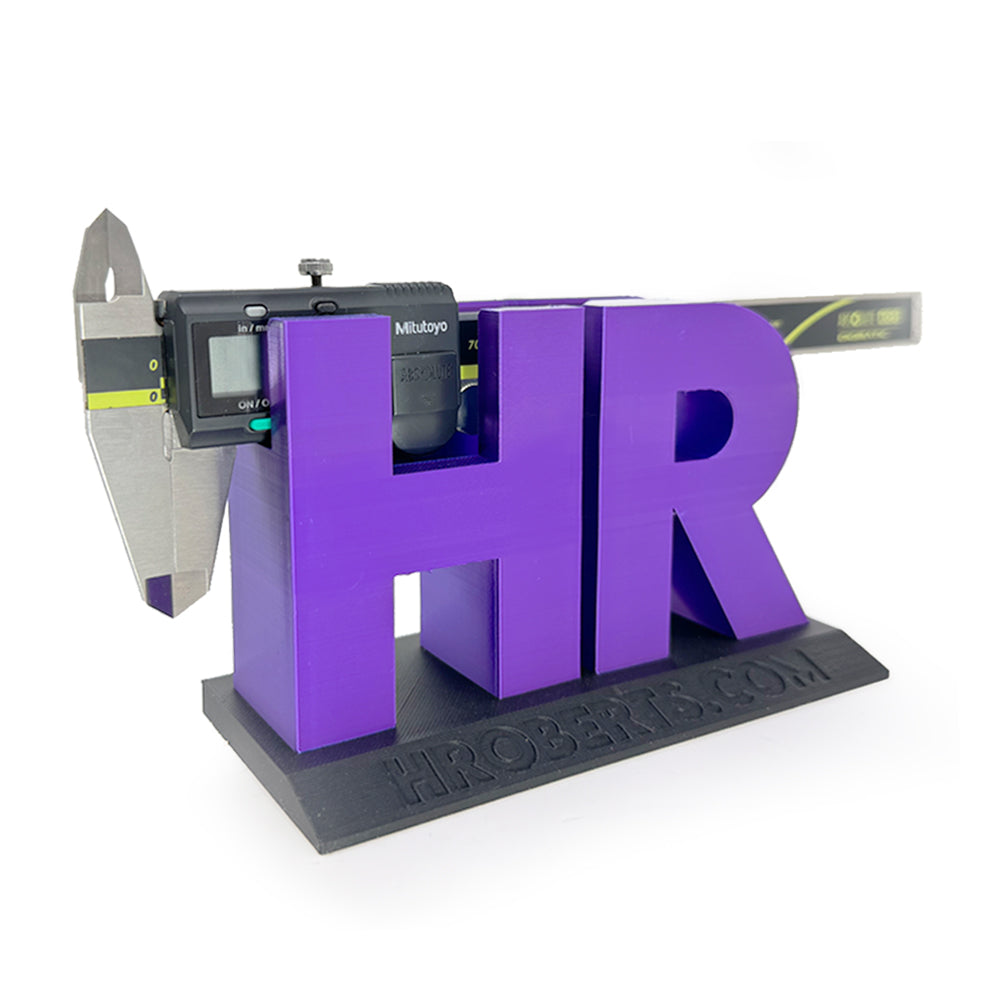

- For a limited time, grab a FREE Caliper Stand with every online order. Sleek and practical, it’s the perfect way to store your caliper when not in use. One stand per order, designed to suit standard Calipers. Hurry - while Stocks last!
