Images are for illustration purposes only - Products may differ.

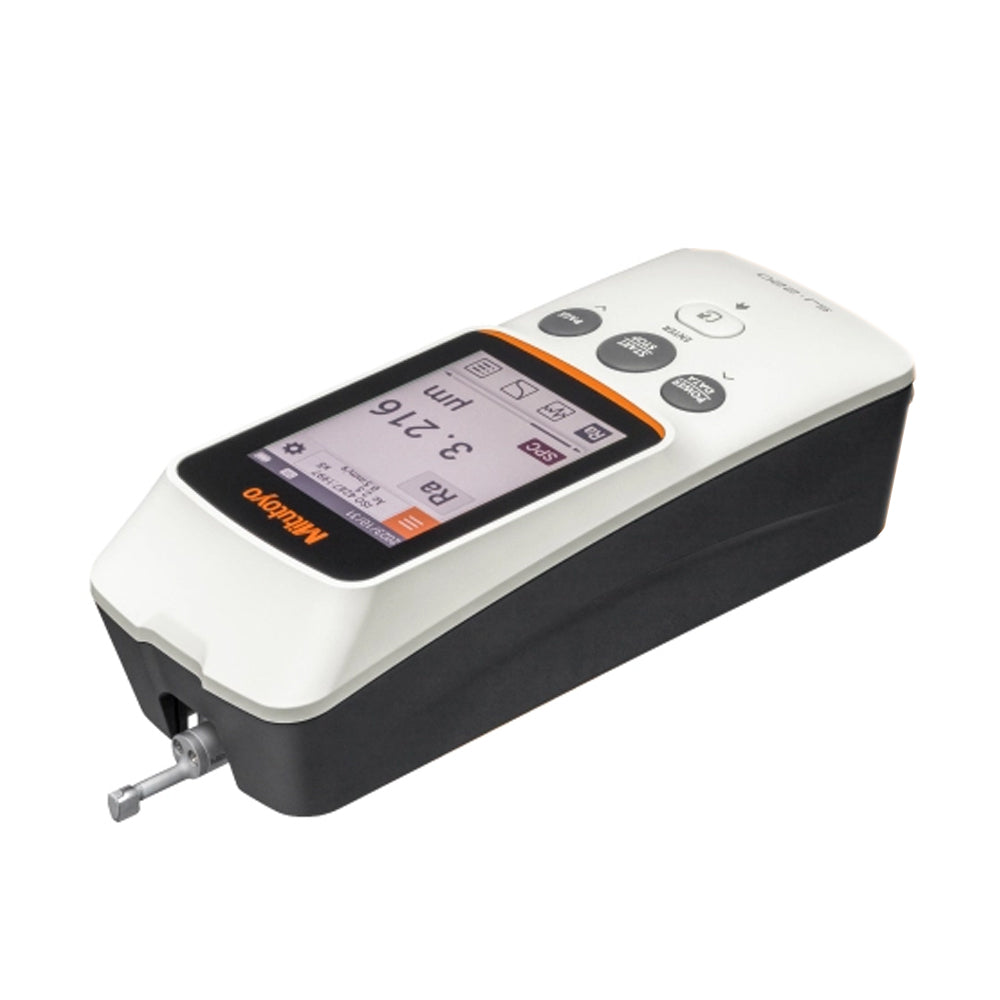

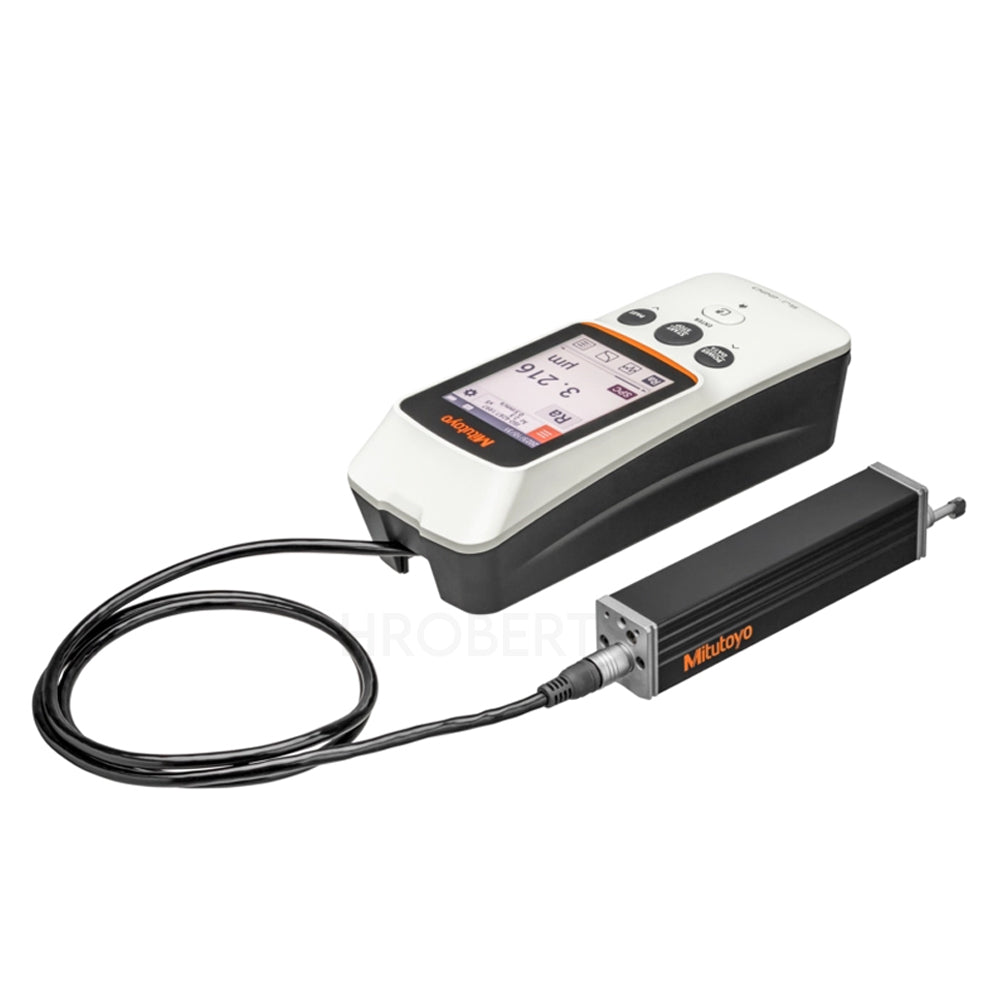

Mitutoyo 178-742-13 SJ-220 Portable Surface Roughness Tester, Standard Drive Unit, Stylus Tip Angle 90°, Radius 5μm, Imperial / Metric, Measuring Range 16mm, Resolution 0.001µm
SKU:Code: 178-742-13
Sale
Sold out
Regular price
£1,700.00
Save: 13%
Sold out
Sale price
£1,700.00
Regular price
£1,950.00
Excl. VAT

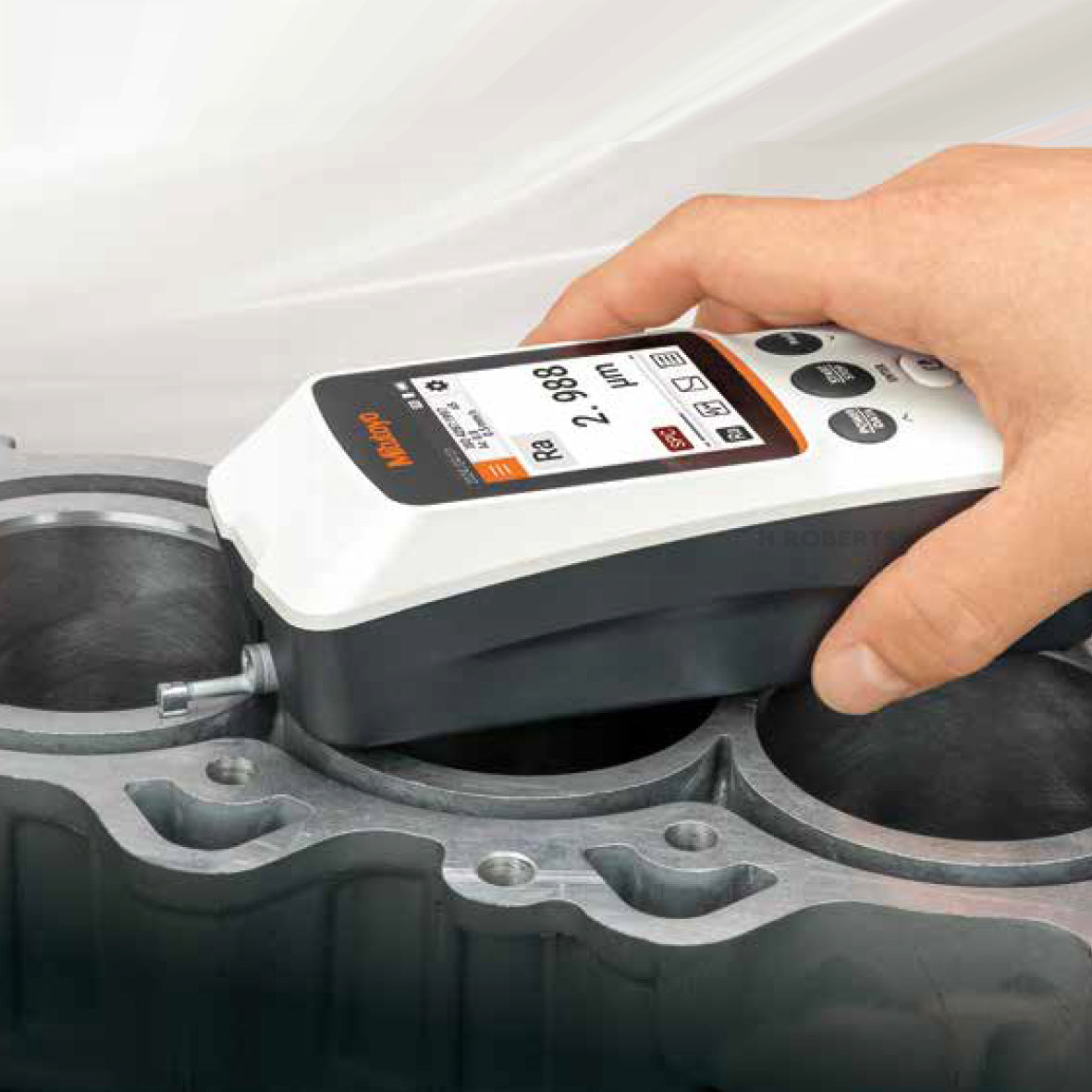

A portable surface roughness tester designed like a hand tool for easy on-site use
The SJ-220 series of portable surface roughness measuring instruments, which has contributed to industrial development and technological progress through precision measurements, has evolved even further. While maintaining excellent portability and ease of use on-site, it now also provides touch screen functionality for intuitive operability.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Standard Drive
- display type 2.4-inch colour graphic LCD
- tip angle 90º
- style Skidded
- hs code 90318020000
- country of origin Japan
- brand Mitutoyo
- tip radius 5 Micron
- traverse length 17.5mm
description
accessories
description
Mitutoyo Surftest SJ-220 Brochure
The Surftest SJ-220 offers new features such as:
- Robust design, yet comfortable handling
- Complies with many standards such as ISO 21920, ISO 4287, and many more
- Supports 25 languages

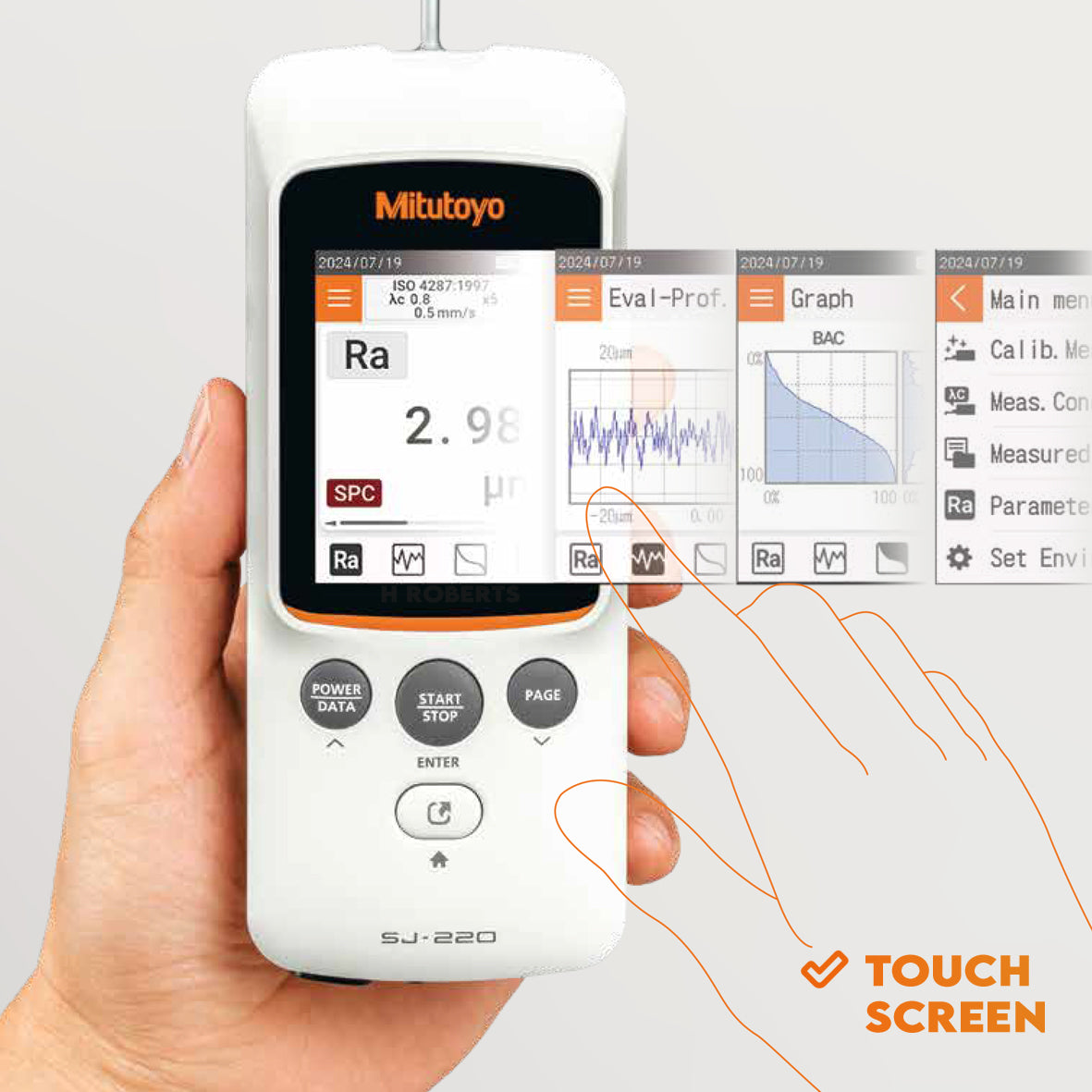

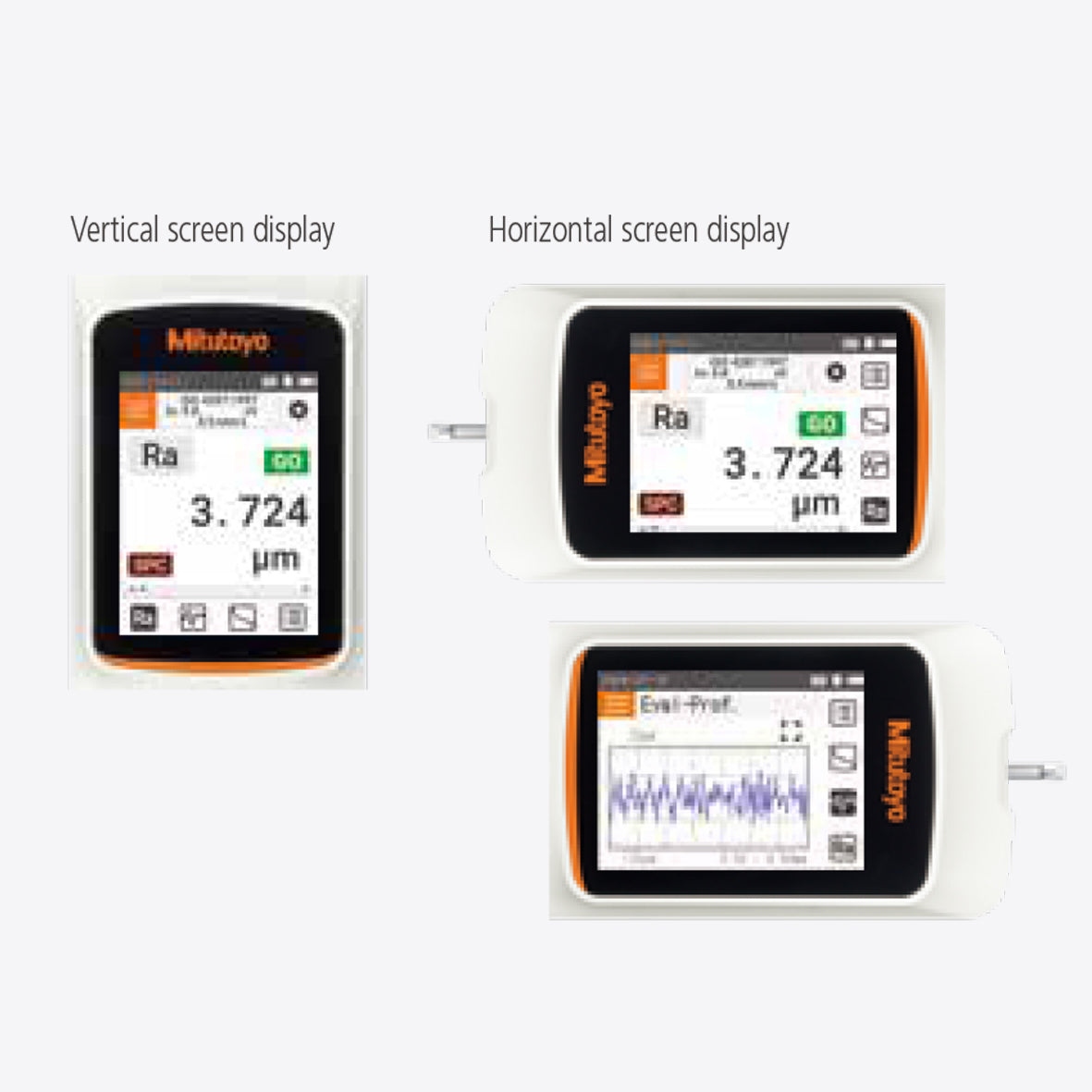

- Clear, user-friendly, and high-resolution 2,8-inch LCD touchscreen

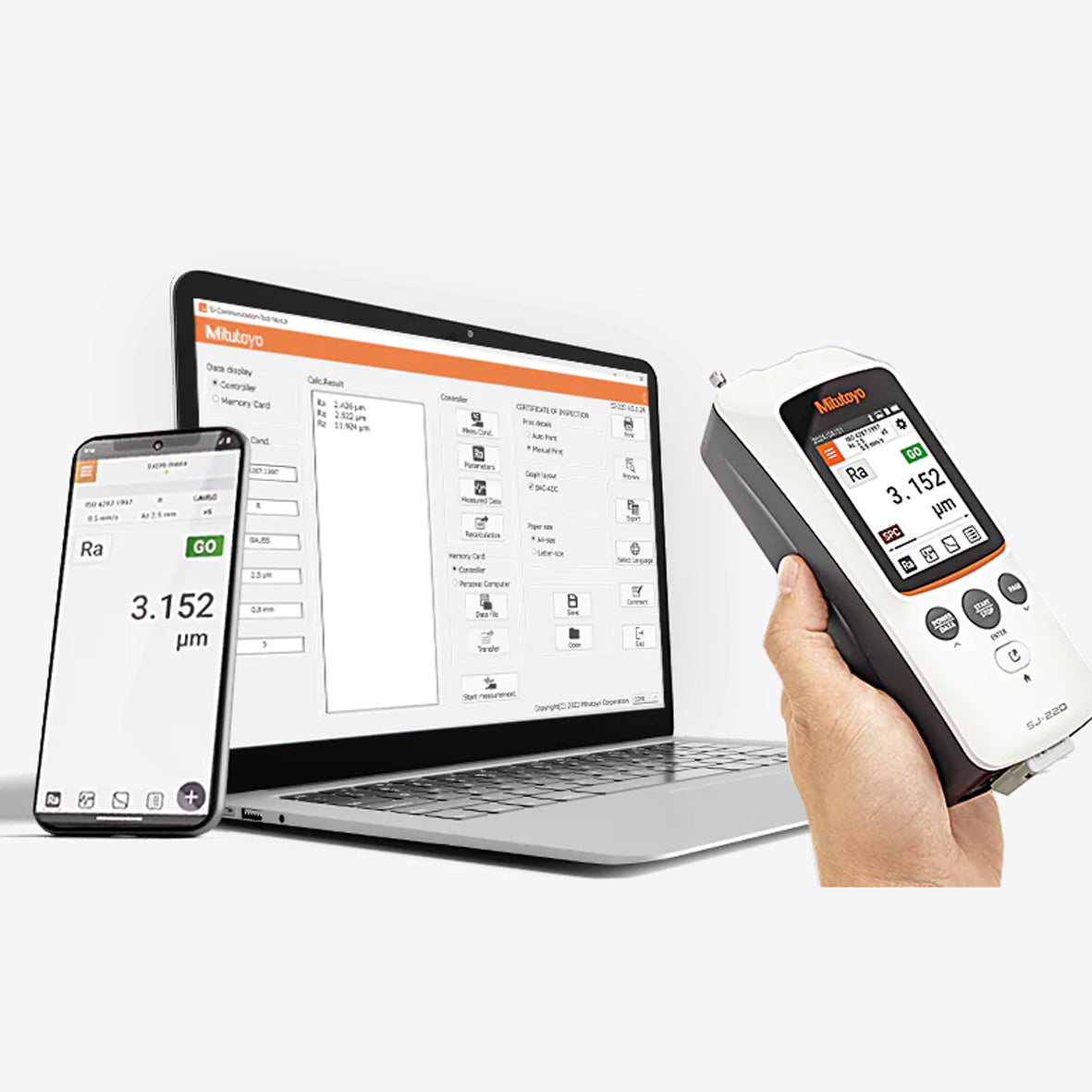

- Optional Bluetooth connectivity to PC and smartphone
- Free software SJ Communication Tool
technical drawings
PDF downloads
accessories
