Plastiform

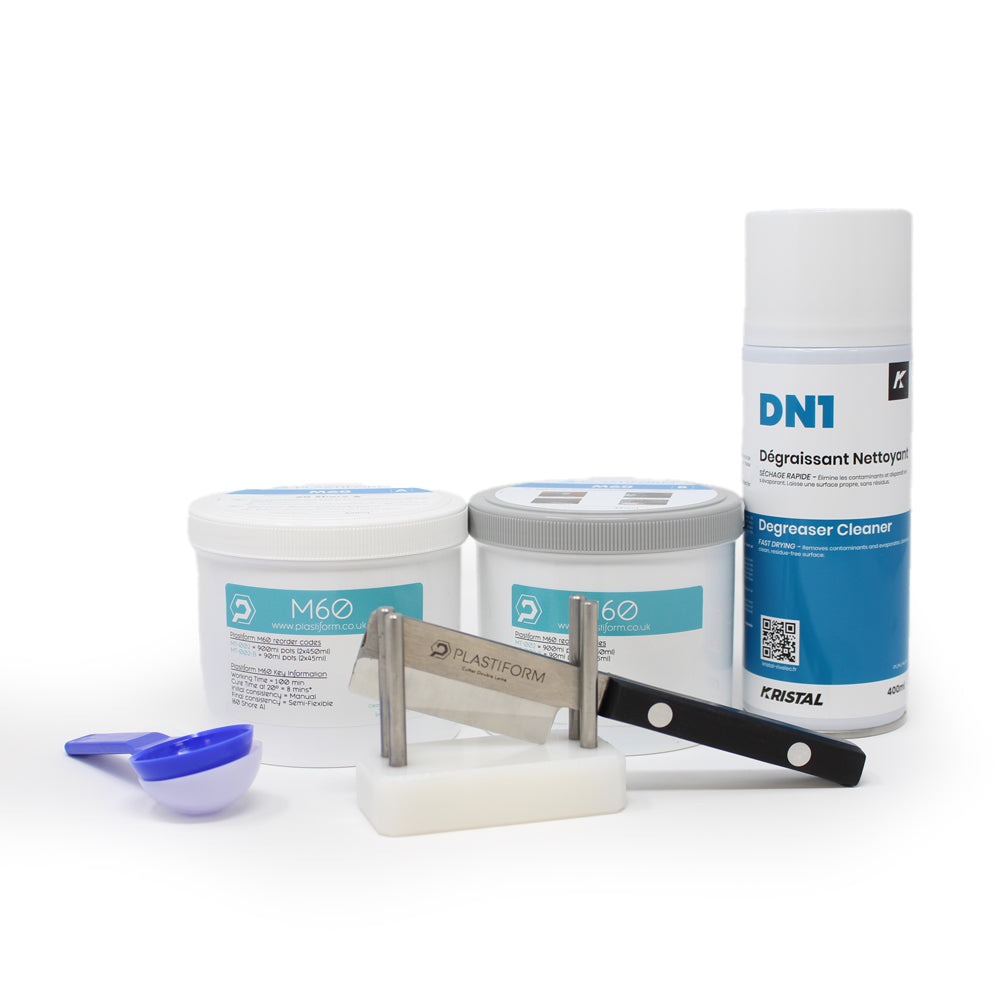

M60 Manual Replicating Compound
SKU:Code: MT-002-B
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Manual Putty
- accuracy 1 Micron
- colour Green
- final consistency Semi-Flexible
- final hardness shore a 60 Shore A
- initial consistency Putty
- remarks Recommend for External Complex Forms
- working time 60 Seconds
- setting time 8 Mins (At 20 Degrees C)
- can it be cut Yes
With its malleable consistency, M60 can be applied manually to vertical or overhanging surfaces. The final impression of this plastiform is Semi-Soft (hardness 60 Shore A), and has a low deformation capacity. It accepts a maximum Extraction Constraint of 5%. The M60 is therefore used on less complex shapes.

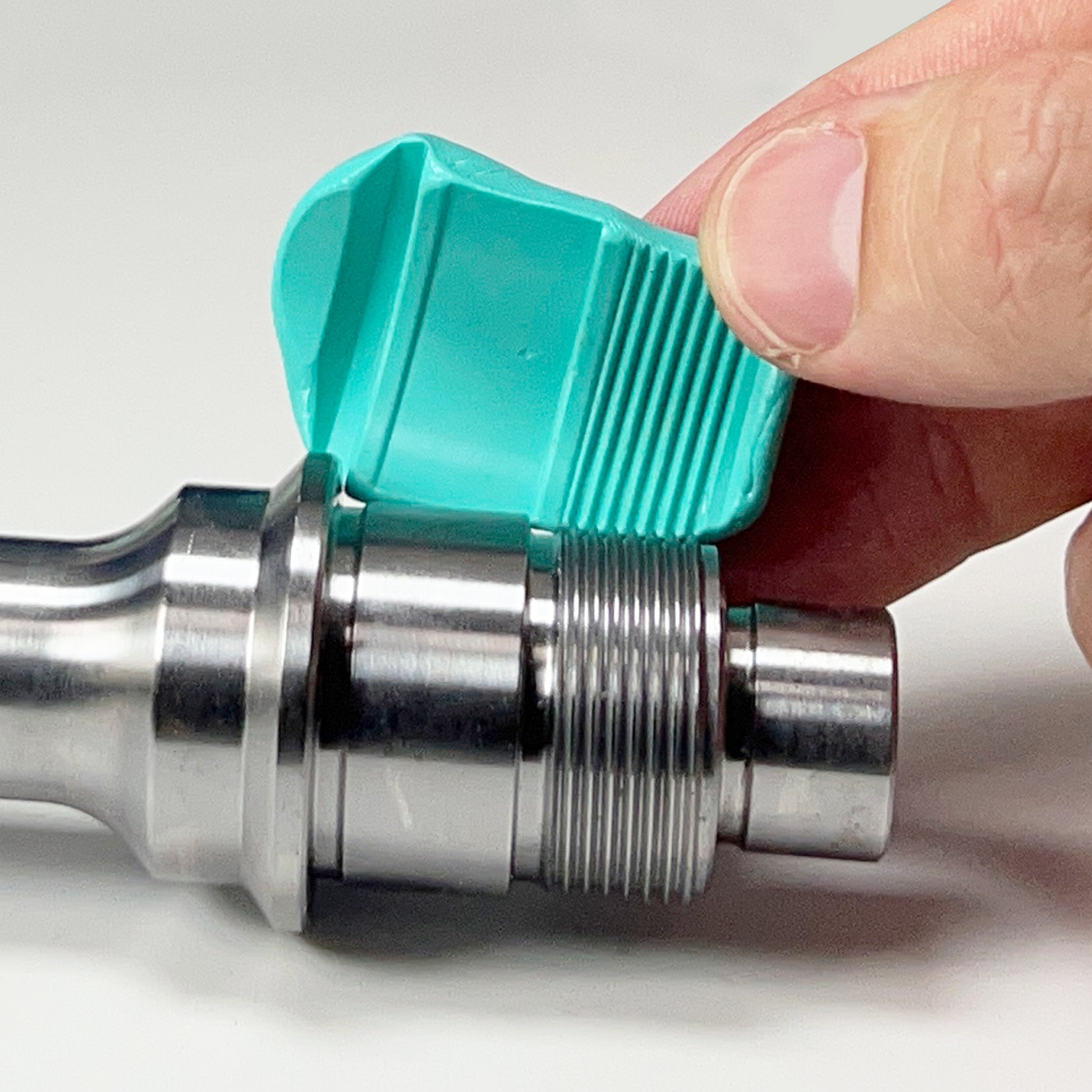

The M60 is recommended for creating simple external shape impressions (threads, grooves, grooves, etc.). It can be used on medium or large parts. Moreover, it is a very practical product to use to control large assemblies without having to disassemble them.
This product can also be used to create custom protective caps. It is possible to cut the M60‘s impressions with the Double Blade Cutter to obtain a profile of the replica. Performing your measurements on 2-dimensional profiles greatly improves the quality of your results.
