Plastiform

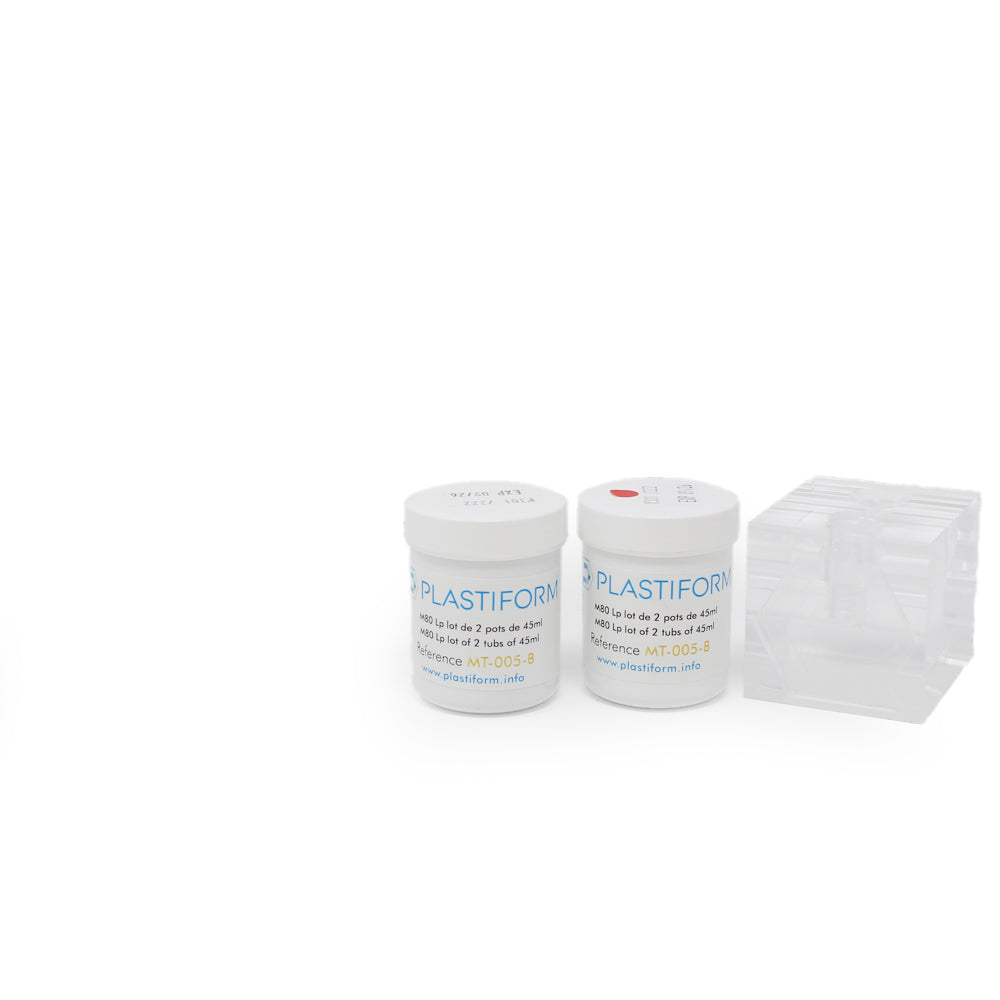

M80LP Manual Replicating Compound
SKU:Code: MT-005-B
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Manual Putty
- accuracy 1 Micron
- colour Blue
- final consistency Rigid
- final hardness shore a 80 Shore A
- initial consistency Putty
- remarks Recommend for Large External Simple Forms
- working time 8 Minutes
- setting time 30 Mins (At 20 Degrees C)
- can it be cut Yes
This products has been developed to meet a need for long-term polymerization. M80 Lp can be applied like all other Plastiform malleable products but has a cure time of 30 minutes. Its final impression is Semi-Rigid (hardness 80 Shore A), therefore non-flexible. This replica cannot be deformed during its demoulding, and does not support any extraction stress. The M80 should therefore only be used on simple shapes or for partial impressions.
The extended polymerization of the M80 Lp allows it to be used for long applications. It is a very specific product that meets specific needs. We recommend that you contact one of our experts if you plan to use it.

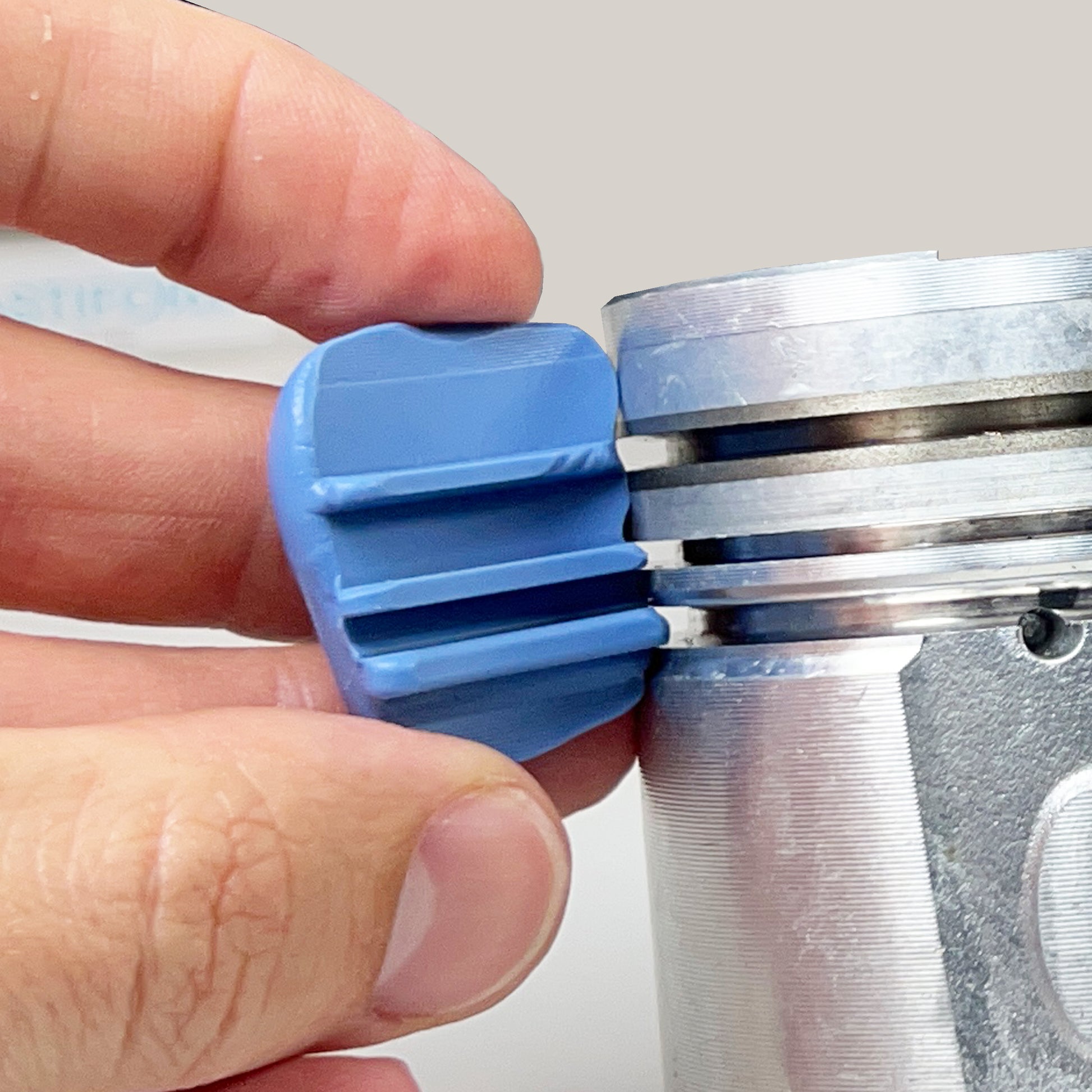

The M80 is particularly recommended for clearance and air gap control on assembled assemblies. Its capabilities also allow it to be used in injection moulds. Finally, this plastiform temporarily stiffens fragile parts before machining against vibration and resonance phenomena.

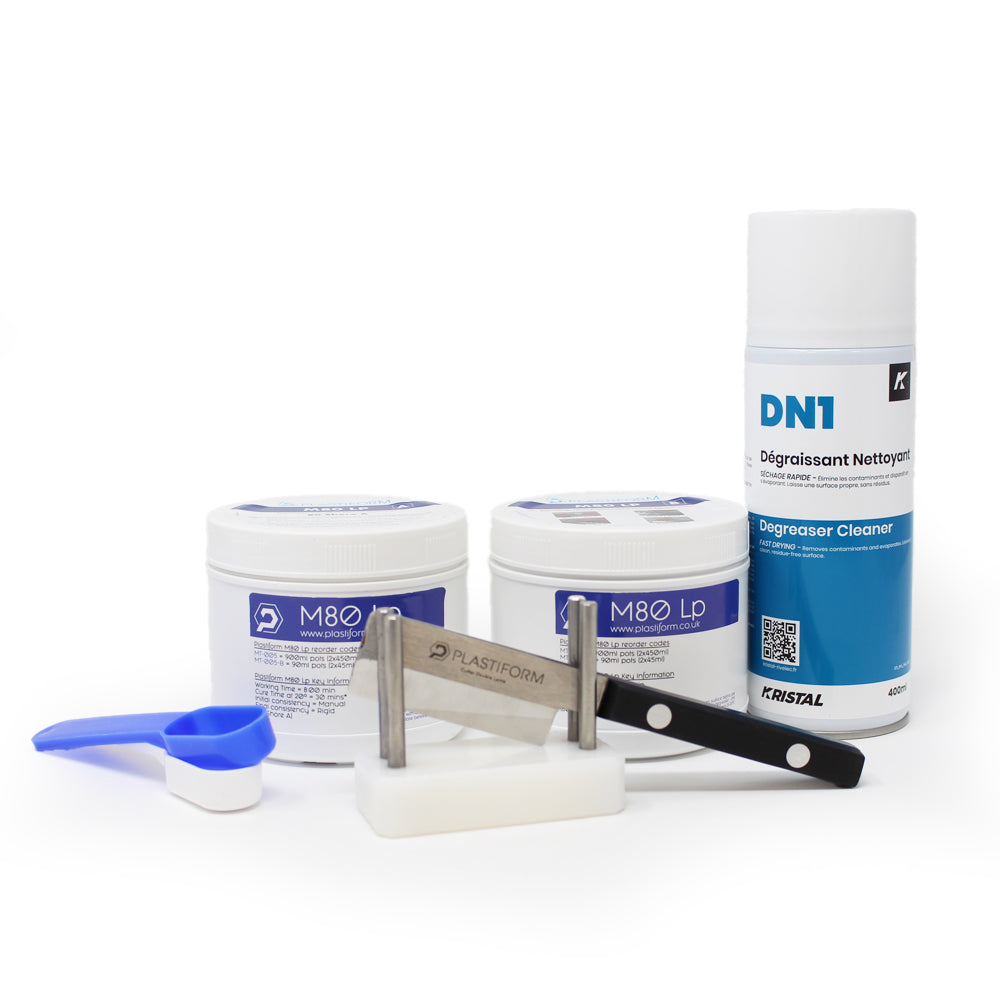

It is possible to cut the M80 Lp impressions with the Double Blade Cutter to obtain a profile of the replica.
