Plastiform

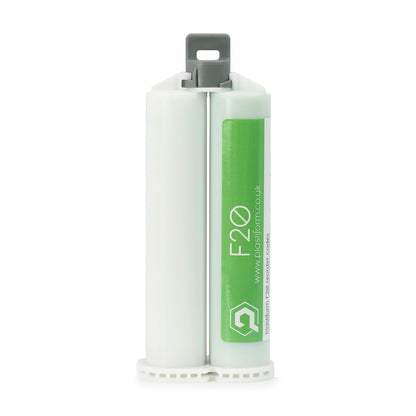

F20 Replicating Compound
SKU:Code: CA-F20-2
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Cartridge
- accuracy 1 Micron
- colour Green
- final consistency Flexible
- final hardness shore a 20 Shore A
- initial consistency Fluid
- size 50ml Cartrigdge
- remarks Recommend for Internal Complex forms
- working time 90 Seconds
- setting time 8 Mins (At 20 Degrees C)
- can it be cut No

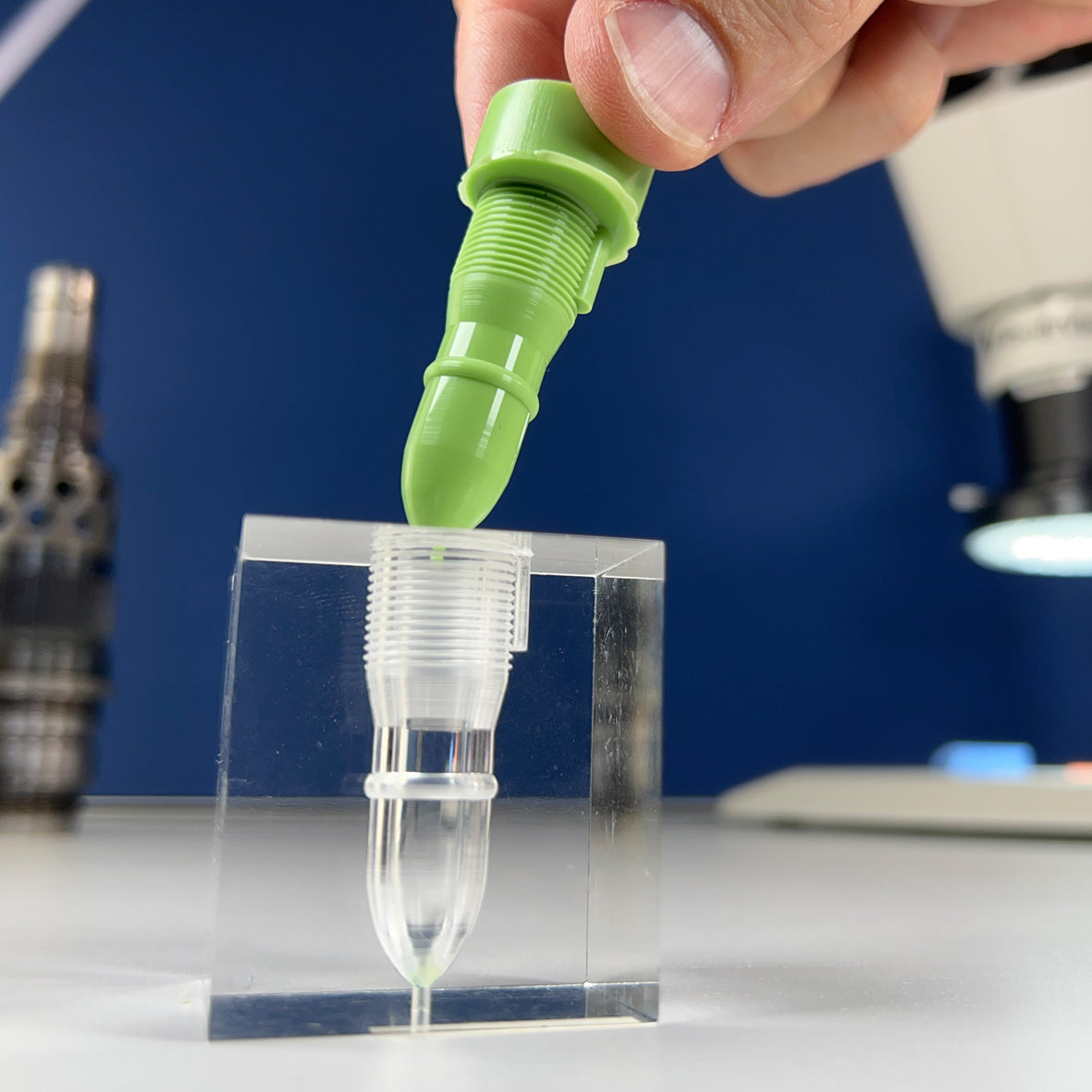

Thanks to its high initial Fluidity (flowable product), the F20 can easily infiltrate into any type of part, whether small (diameter up to 0.1 mm) or medium size.

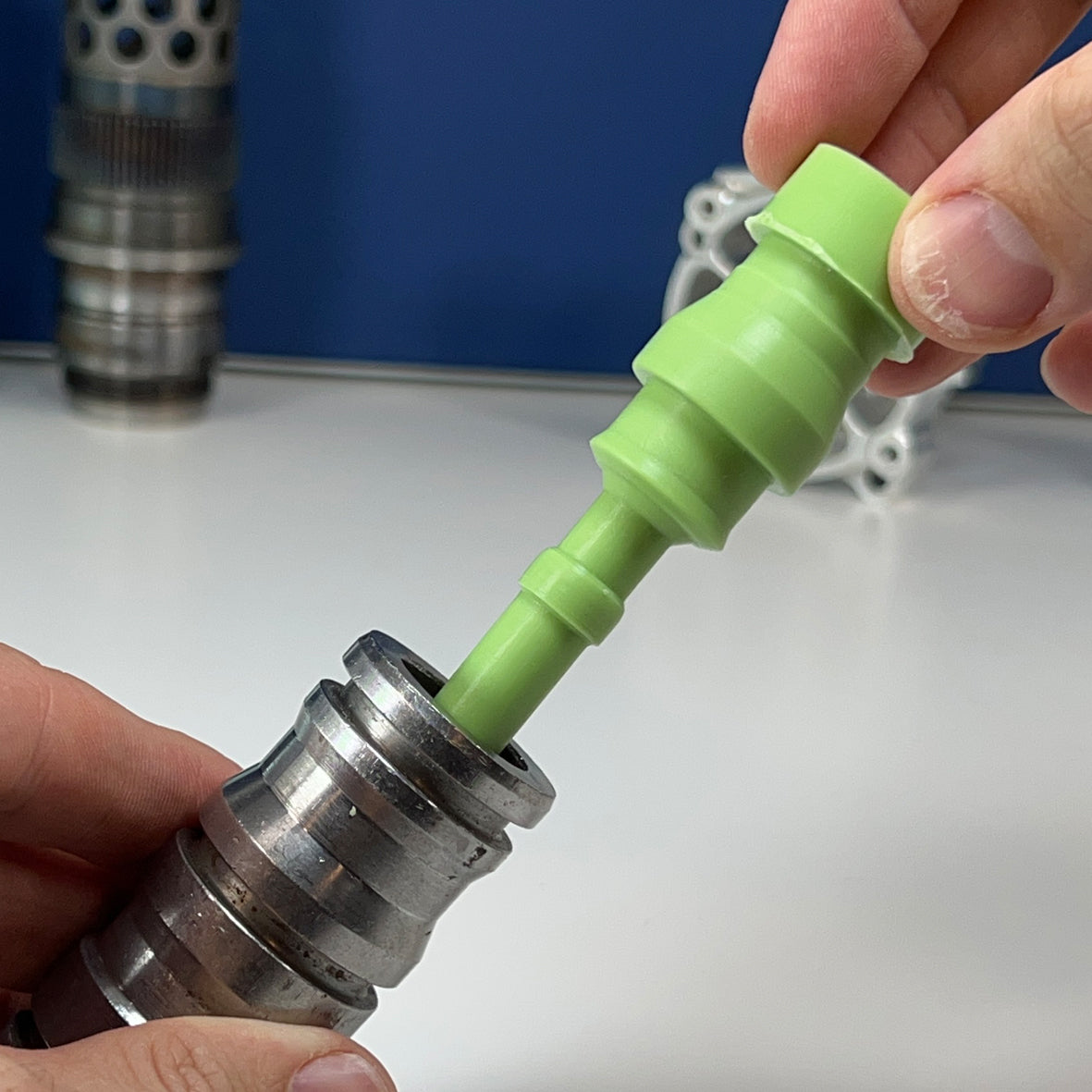

The final impression is very flexible (hardness estimated at 20 Shore A), which allows it to be strongly stretched and deformed during de-moulding without any problem.

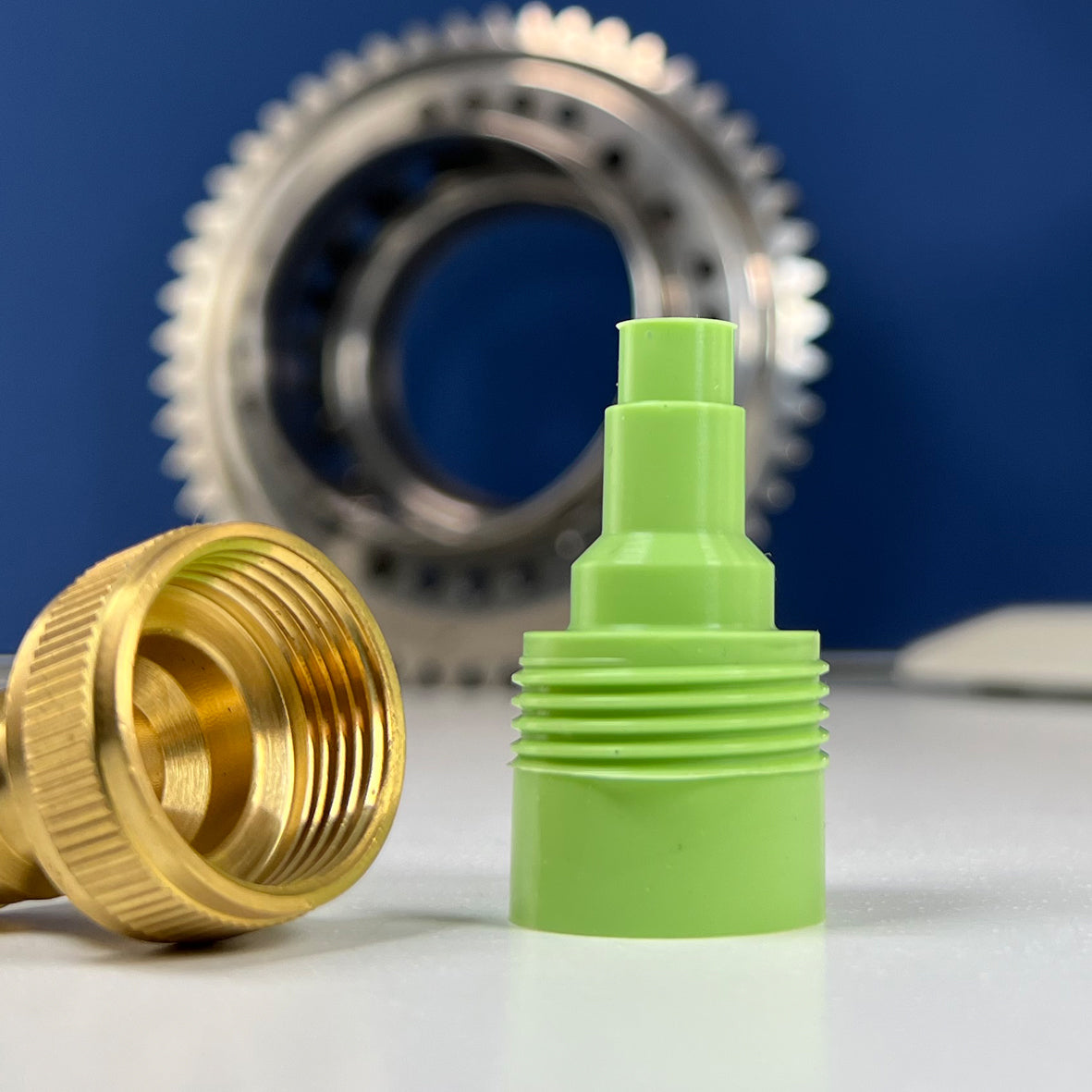

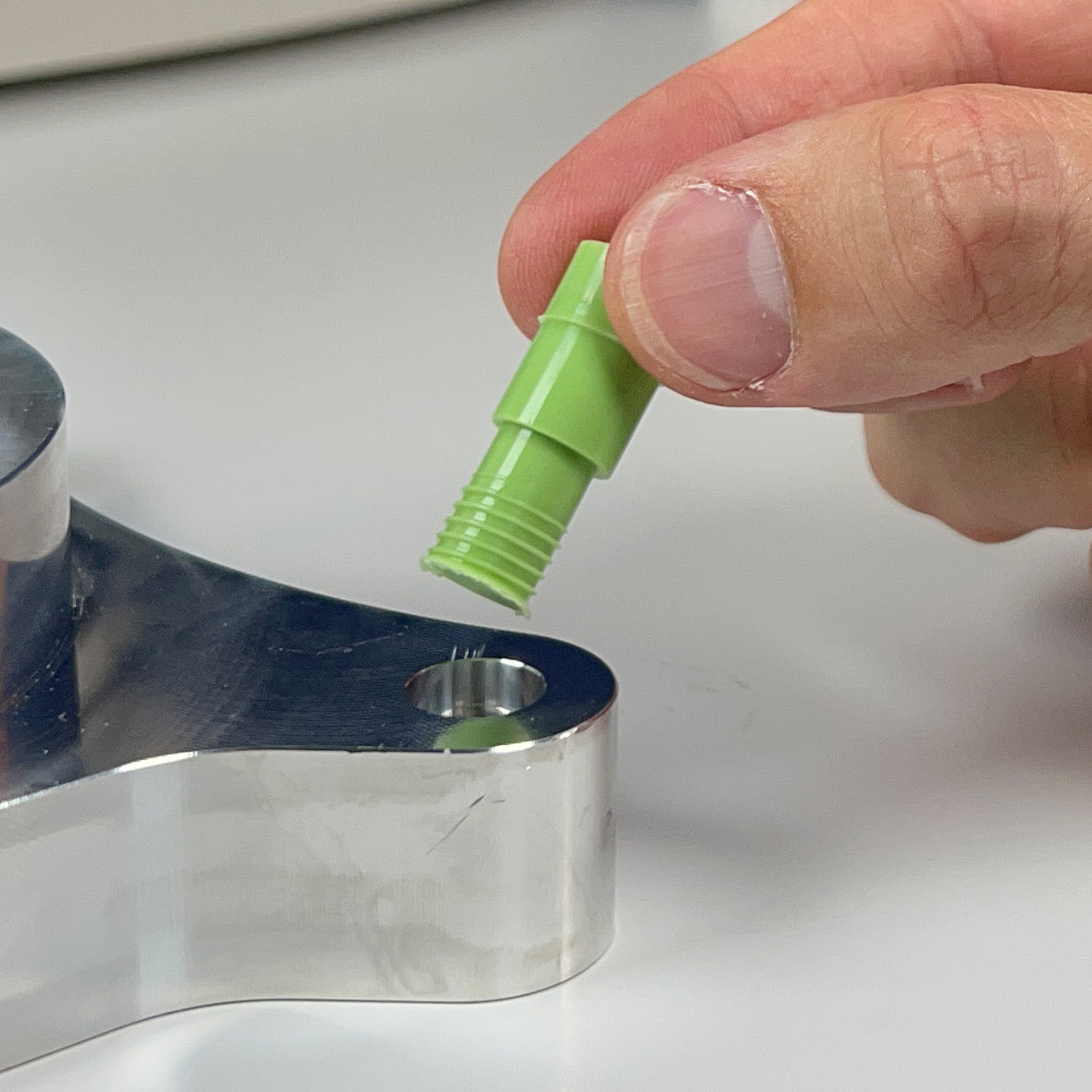

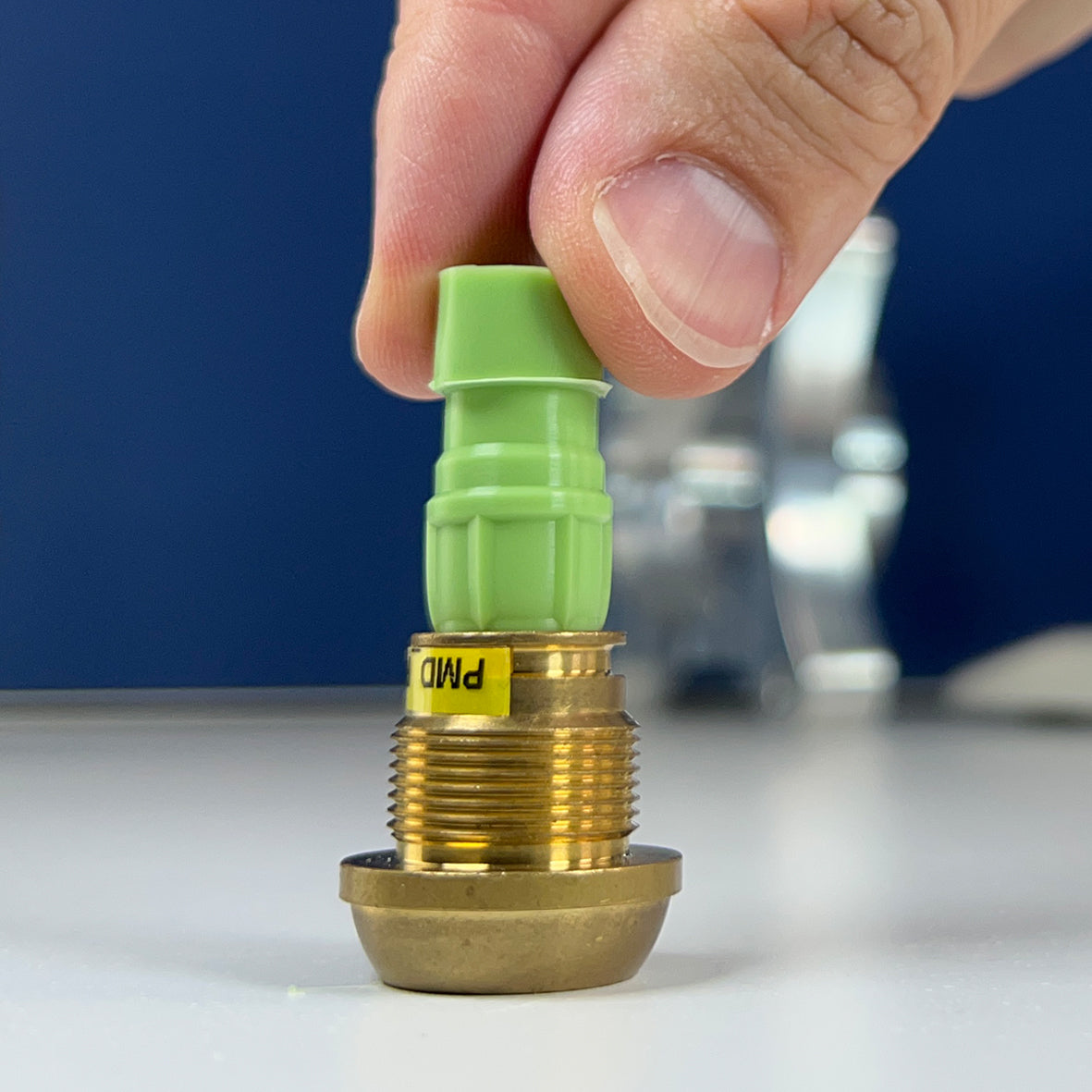

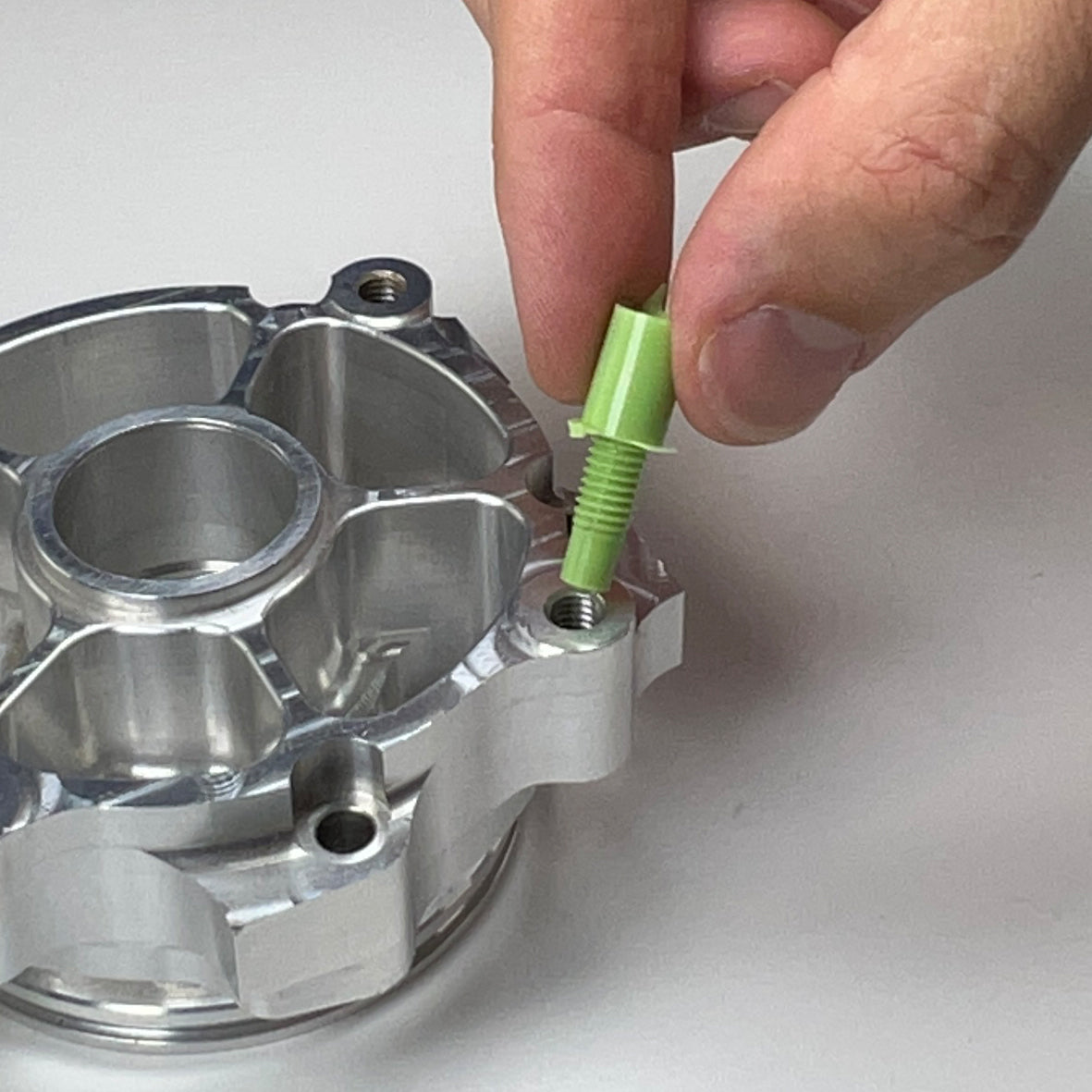

The F20 is therefore recommended for taking impressions in complex internal forms (threads, grooves and internal grooves…). However, it is important that the Extraction Constraint does not exceed 30%.
The impression is very accurate. All surface details (shape, dimension, appearance, surface condition, etc.) are reproduced in µm.
The replica is not altered during the extraction step, which allows for an optimal result. Similarly, it will not leave any trace of its passage through the controlled area.
Finally, the technical characteristics of the product also allow it to be used for protection. It is particularly effective in replacing a gasket.
