Images are for illustration purposes only - Products may differ.

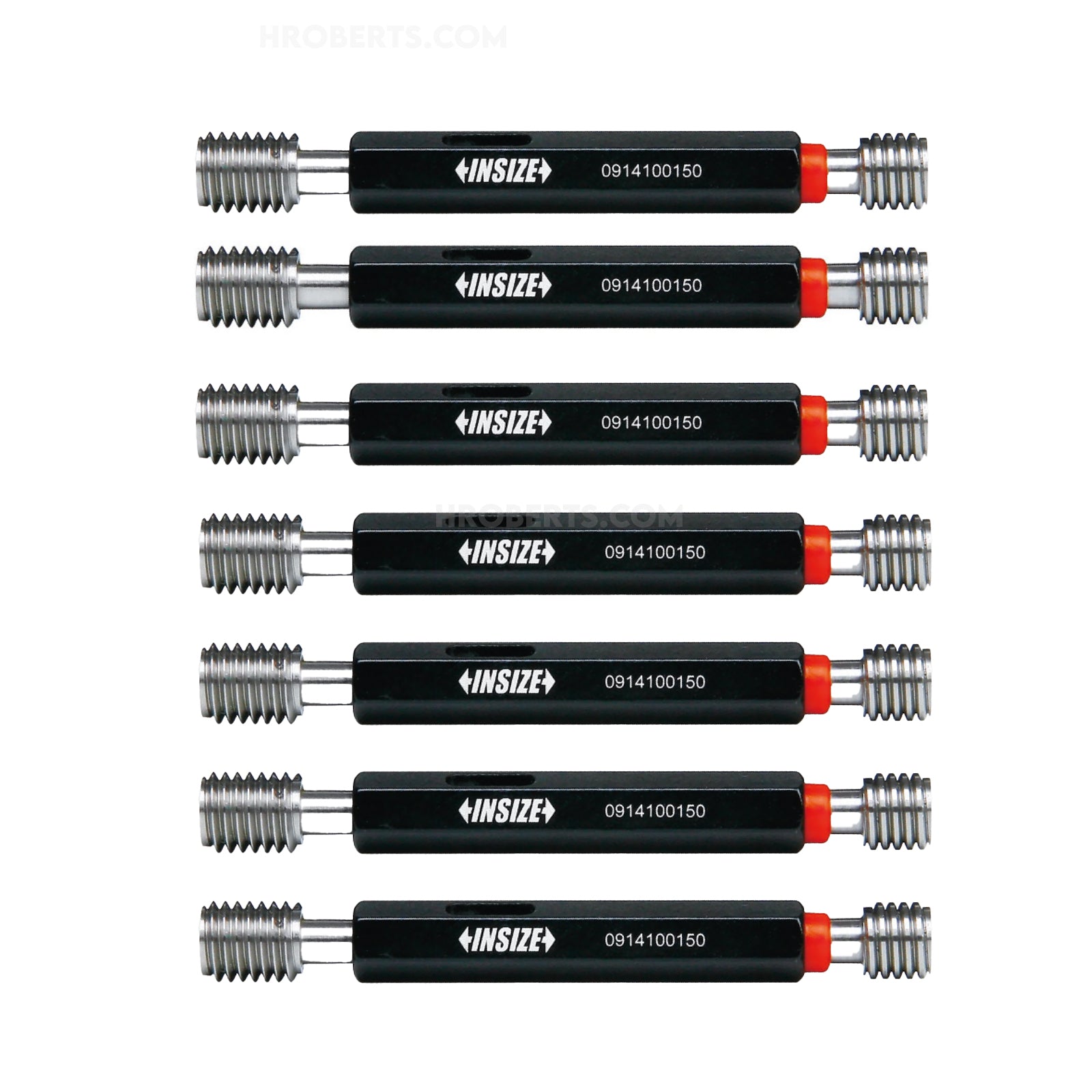

Insize 4130-S7 Metric Coarse Thread Plug Gauge Set - Sizes M3x0.5, M4x0.7, M5x0.8, M6x1, M8x1.25, M10x1.5, M12x1.75
SKU:Code: 4130-S7
Sale
Sold out
Regular price
£89.10
Save: 10%
Sold out
Sale price
£89.10
Regular price
£99.00
Excl. VAT
- Supplied with Go and No-Go End.
- Class 6H tolerance.
- GO/NO-GO Sizes M3x0.5, M4x0.7, M5x0.8, M6x1, M8x1.25, M10x1.5, M12x1.75.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Thread Plug Gauge
- brand Insize
- handed Right
- pitch 1.25
- go or nogo Go/No-Go
- thread form Metric ISO
description
description
The Insize 4130 Thread Plug gauges for gauging internal thread sizes, to determine if the thread is within the upper/lower limits of the components tolerance. The hole size can be determined by using go and no go plug. Made from hardened alloy steel for longer tool life and durability from machine shop wear.
GO/NO-GO Metric Coarse Thread plug gauge including sizes
M3x0.5
M4x0.7
M5x0.8
M6x1
M8x1.25
M10x1.5
M12x1.75
