Tesa

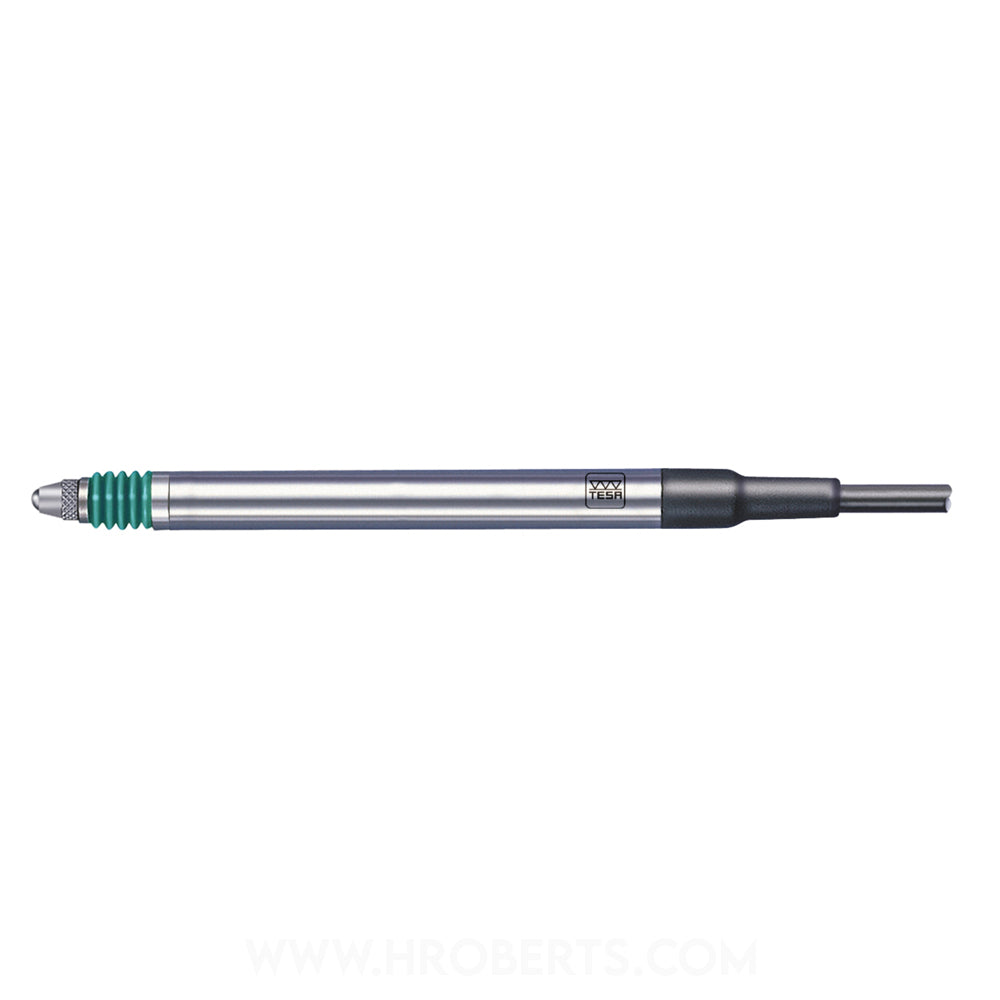

03230057 GTL21 Transducer Probe, Measuring Range +/- 2mm, Nominal Measuring Force 0.63 N, Straight Cable

SKU:Code: TESA-03230057

Sale Sold out Regular price £322.40
Save: 20% Sold out Sale price £322.40 Regular price £403.00
Excl. VAT
Universal probe for standard and continuous use applications. 8mm diameter probe housing. Can be clamped over its entire lengrh. Measuring bolt mounted on a ball bearing. Both the probe housing and ball bearing guide are separate from one another, so that the measuring bolt moves easily even if the probe is not clamped appropriately. Degree of protection IP65 to IEC 60529
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
Specification
  • type Linear Probe
  • range +/- 2mm
  • ip rating IP65
  • travel 4.3mm
description


• PROBE
- Linearized probe
- Measuring bolt mounted on a ball bearing
- Guiding is insensitive to any radial force exerted on the measuring bolt
- Separate guiding from the housing so that the movement of the measuring bolt moves easily even if the probe is not clamped appropriately
- Ø 8 mm probe housing, can be clamped over its entire length
- The guides are effectively protected against penetration of liquids (oils) or solids (dust) by sealing bellows

• MEASUREMENT
- The measuring force can be adjusted by changing the spring (depending on model)
- The measuring inserts can be replaced or exchanged
