Tesa

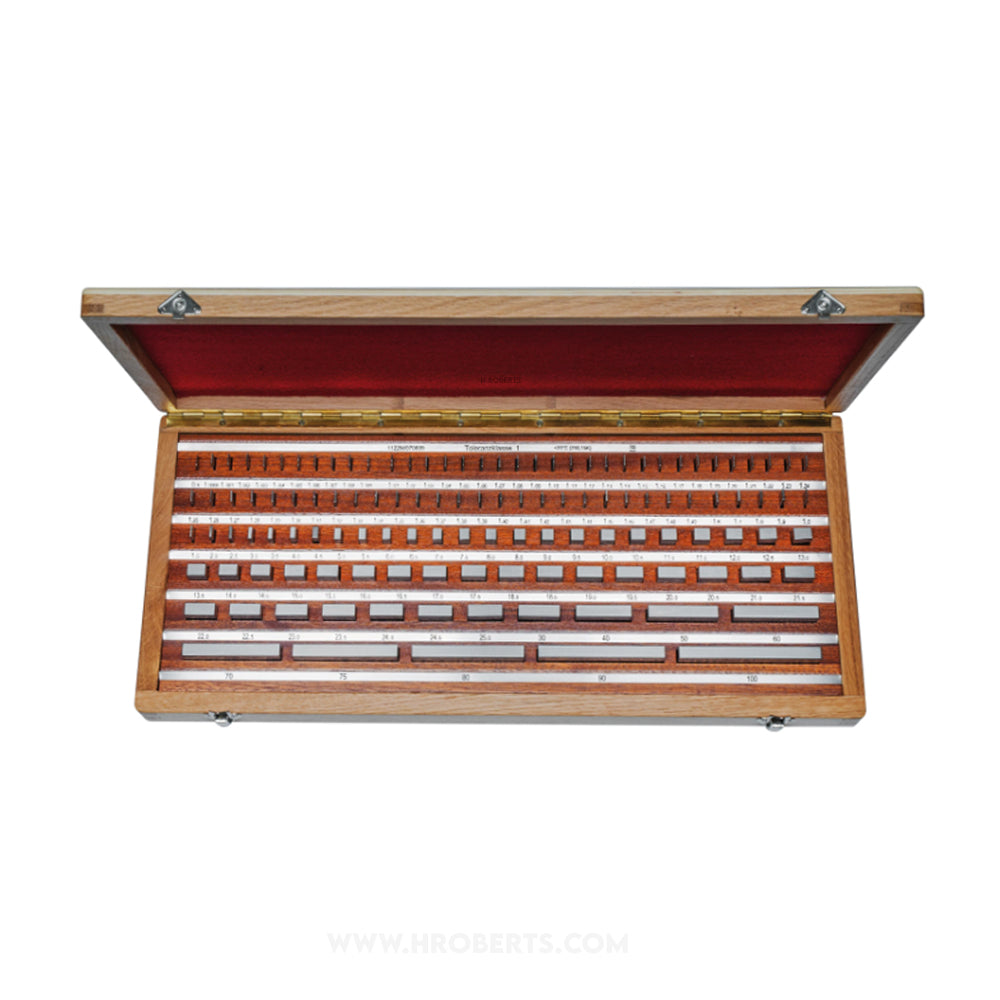

0651536011 Gauge Block Set, Metric M122, Grade K, Ceramic
SKU:Code: TESA-0651536011
Sale
Sold out
Regular price
£9,329.76
Save: 12%
Sold out
Sale price
£9,329.76
Regular price
£10,602.00
Excl. VAT
Gauge blocks are a system for producing precision lengths. The individual gauge block that has been precision ground and lapped to a specific thickness. Gauge blocks come in sets of blocks with a range of standard lengths. In use, the blocks are stacked to make up a desired length.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Gauge Block Set
- accuracy ISO3650
- material Ceramic
- measuring units Metric
- Includes Inspection Certificate
- grade K
- blocks per set 122
- set configuration 1.0005mm 1.001-1.009mm by 0.001 step 1.01-1.49mm by 0.01 step 1.6-1.9mm by step 0.1mm 0.5-24.5mm by 0.5 step 30-100mm by 10 step 25 75mm
description
description
They must me cleaned carefully after use, stored in a dry environment and be protected against corrosion
