Tesa

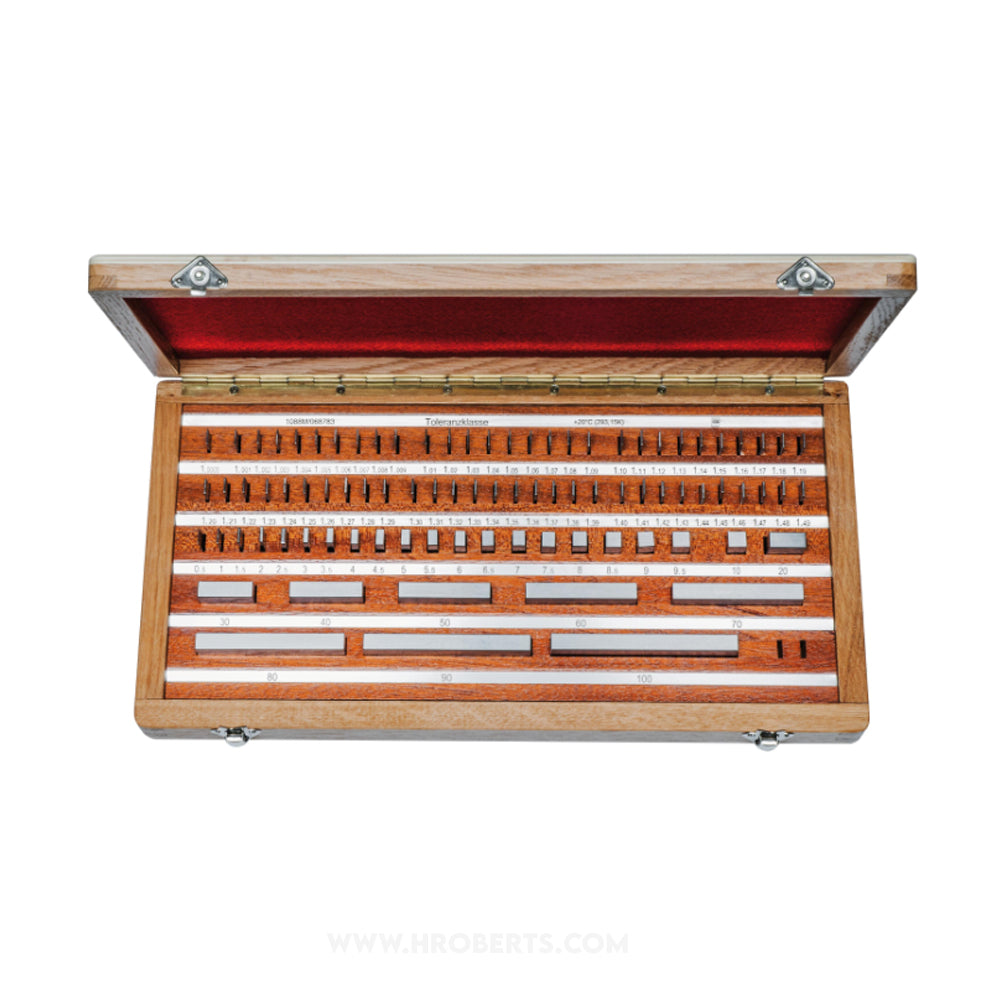

0651536014 Gauge Block Set, Metric M88, Grade K, Ceramic
SKU:Code: TESA-0651536014
Sale
Sold out
Regular price
£5,511.44
Save: 12%
Sold out
Sale price
£5,511.44
Regular price
£6,263.00
Excl. VAT
Gauge blocks are a system for producing precision lengths. The individual gauge block that has been precision ground and lapped to a specific thickness. Gauge blocks come in sets of blocks with a range of standard lengths. In use, the blocks are stacked to make up a desired length.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Gauge Block Set
- accuracy ISO3650
- material Ceramic
- measuring units Metric
- Includes Inspection Certificate
- grade K
- blocks per set 88
- set configuration 1.0005mm 1.001-1.009mm by 0.001 step 1.01-1.49mm by 0.01 step 0.5-9.5mm by 0.5 step 10-100mm by 10 step
description
description
They must me cleaned carefully after use, stored in a dry environment and be protected against corrosion
