Accretech

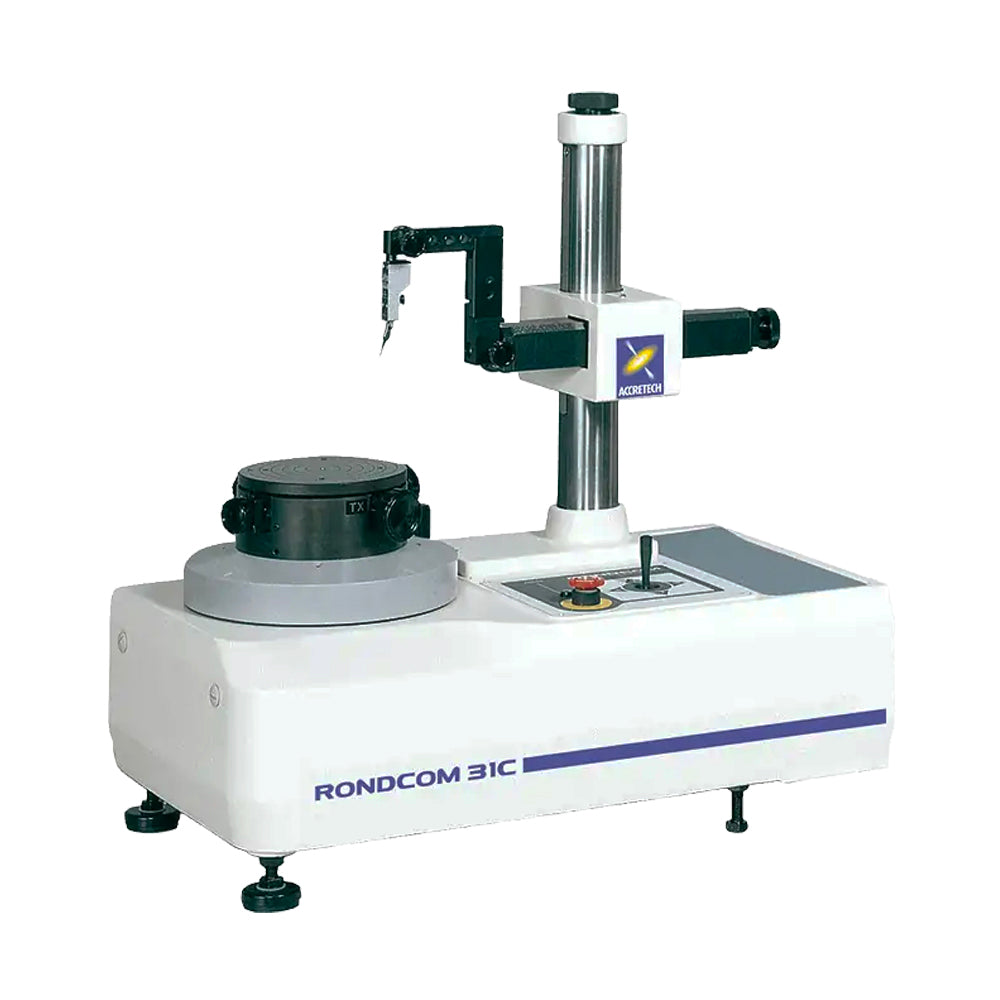

RONDCOM 31 High precision polar profile measurement with a large measurement area
SKU:Code: RONDCOM 31
Item priced on application.
Request a Price
High precision polar profile measurement with a large measurement area
Software-supported alignment of the workpiece
Measurement range up to 250 mm outer diameter
Rotation precision: (0.04+6H/10,000) µm
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- remarks Max. workpiece ø 250 mm
description
description
RONDCOM 31 is designed for the quick, simple and precise execution of profile measurement tasks such as measurement of polar parameters, roundness, evenness, coaxiality, concentricity, etc.
High quality axes with air bearing equipped table-rotating instrument, optional 500 mm Z columns
Measurement range and probing force can be adjusted
CNC analysis with printout
ACCTee measurement software with help functions for centralising and levelling
Workpieces up to max. 25 kg
