Accretech

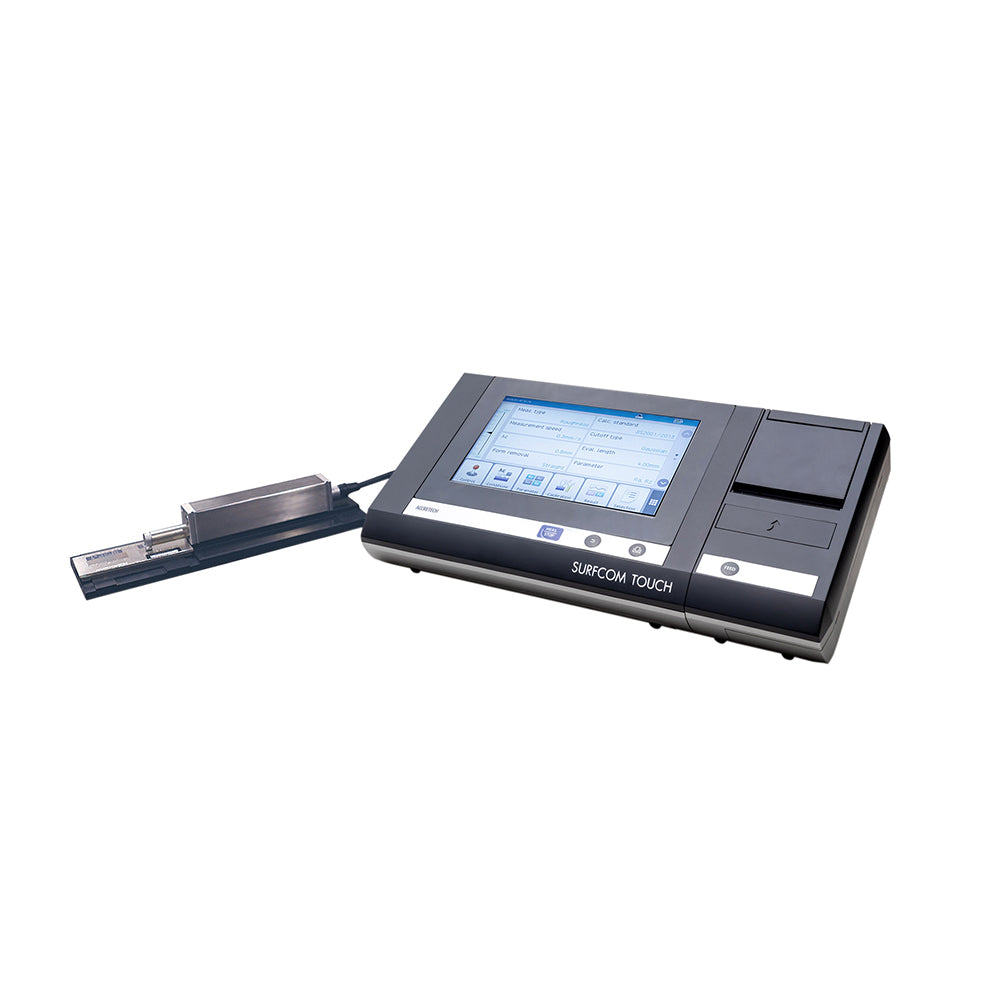

Surfcom Touch 35B Surface Roughness tester R2μm with Printer
SKU:Code: S-Tch35B2
Sale
Sold out
Regular price
£3,790.00
Save:
Sold out
Sale price
£3,790.00
Regular price
£3,790.00
Excl. VAT
Portable-type entry model in the SURFCOM TOUCH
series useful in any measurement situation
Small and light tracing drivers selectable for application.
In addition to horizontal surface, measurement on
vertical surface with the driver and in narrow areas
with transverse trace can be performed.
Skid-measurement-type for measurement
with different attitudes.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Standard
- display type 7-inch colour liquid crystal touch panel
- resolution 0.0007μm
- style Skidded
description
description
Palm-sized(Handy sized) tracing drivers selectable for workpieces and measurement areas
A roughness specimen for surface texture and a driver selected above are set to the standard calibration table. Calibration can be conducted easily without need of height and inclination adjustment of the driver as before.
The pick-up, that comes in contact with the workpiece is replaceable. Various types of workpieces can be measured by using optional pick-ups such as those for small or extremely small holes, deep grooves, etc.
