Bowers

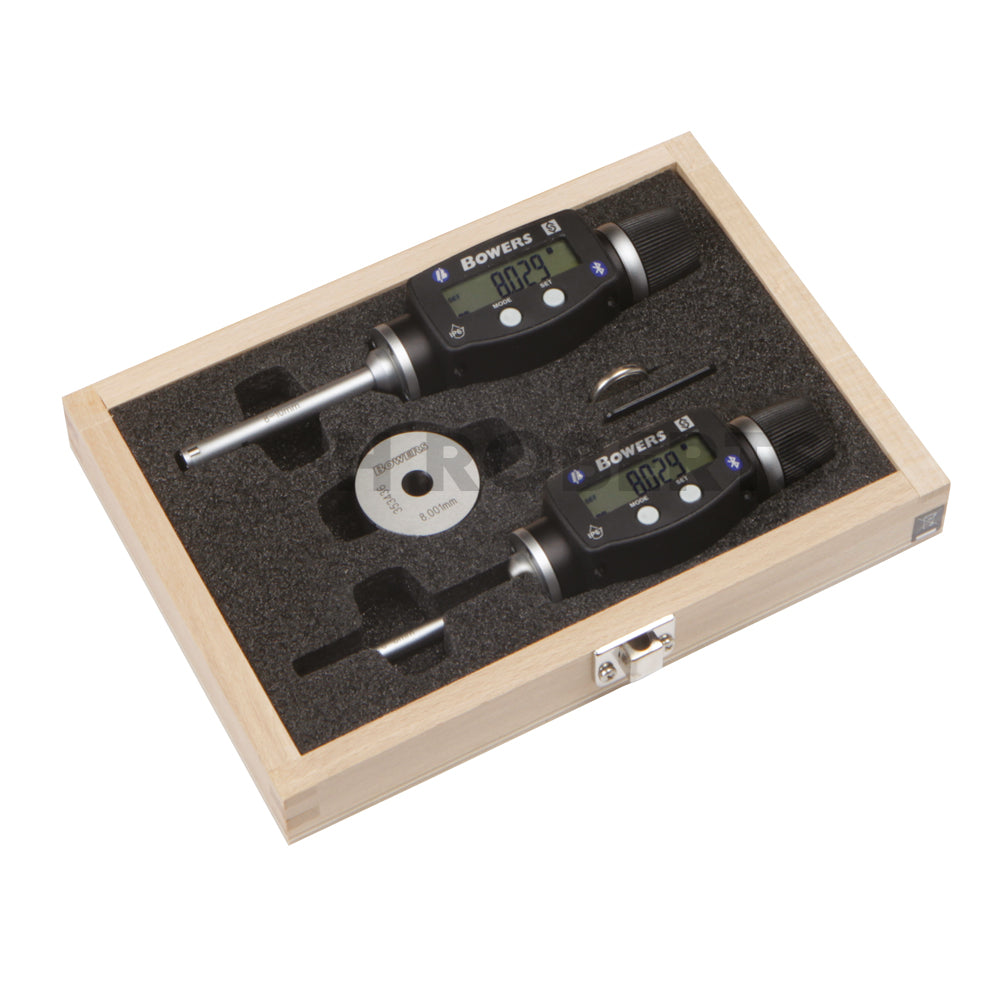

SXTD4U-BT Digital Bore Gauge Set, Range 10-20mm, Resolution 0.001mm, 3-Point Contact with Bluetooth, Supplied with Setting Rings and Ukas Certificate
SKU:Code: SXTD4U-BT
Sale
Sold out
Regular price
£2,053.60
Sale
Sold out
Sale price
£2,053.60
Regular price
£2,567.00
Excl. VAT
Advantages of digital bore gauging include its speed, precision, and ease of use compared to traditional manual methods. It allows for efficient quality control and ensures that components meet the required specifications.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Standard
- range 10-20mm
- display type Digital
- resolution 0.001mm
- accuracy 0.004mm
- data output Yes
- ip rating IP67
- max measuring depth 58mm 62mm
- measuring units Metric
- remarks 3-Point Contact
- measuring face Tungsten Carbide
- bluetooth Yes
- bore gauge heads 3
- digital display units 3
- with rings Yes
- size rings included 12.50mm / 20.00mm
- blind bore measurement Yes
description
description
Bowers XT3 digital internal micrometers offer a new ergonomic design - including a larger and clearer LCD display - along with IP67 electronics protection, proximity output with built-in Bluetooth; both allow bi-directional communication giving greater flexibility for data acquisition and storage.
