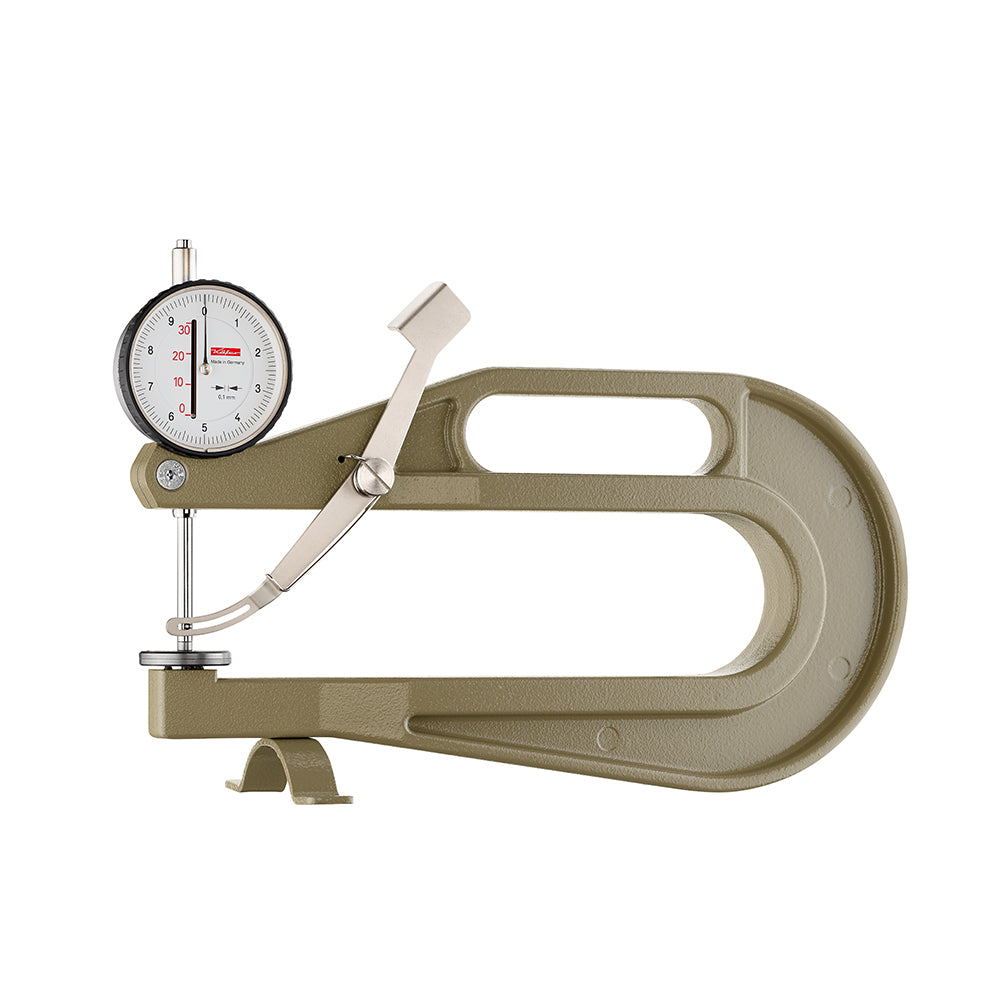

Kafer K 200 Dial Thickness Gauge, Range 30mm, Graduation 0.1mm, Depth of Jaw 200mm
SKU:Code: K200 (20006)
Sale
Sold out
Regular price
£195.25
Sold out
Sale price
£195.25
Regular price
£195.25
Excl. VAT
Dial Thickness Gauges are used for measuring the thickness of a very wide range of materials
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Dial Thickness Gauges
- range 0-30mm
- display type Non-Digital
- graduations 0.01mm
- bezel dia 58mm
- measuring units Metric
- throat depth 200mm
- contact point 10mm Diameter
- brand Kafer
description
description
The Dial Thickness Gauge K 200 possesses a lifting device and thus the contact force is independent of the user.
For the model K 200 in standard version the contact force is 1.5 N. Specials with increased or reduced contact force are available on request with values listed in the table below the illustration.
