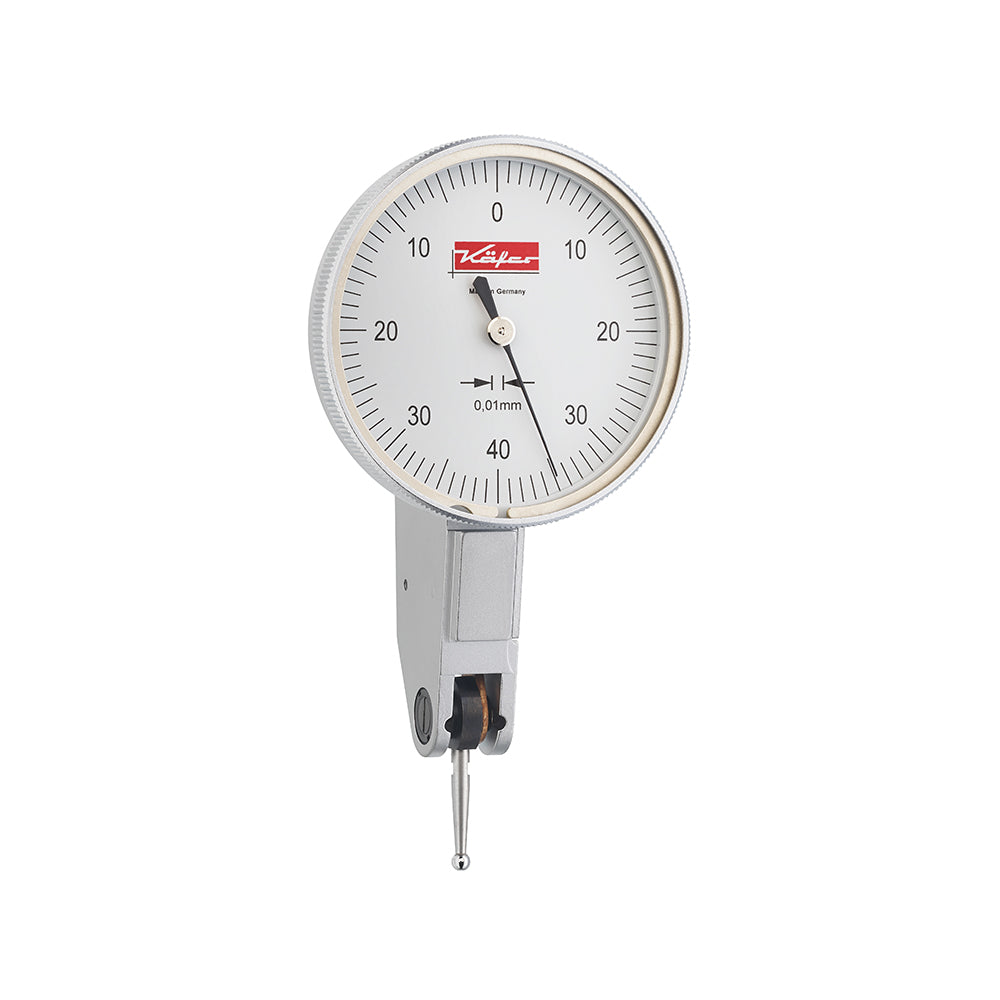

Kafer K 40 Dial Test Indicator, Graduation 0.01mm, Range 0.8mm, Scale 0-40-0, Stylus Length 12.8mm, Bezel Diameter 40mm
SKU:Code: K40 (30034)
Sale
Sold out
Regular price
£99.43
Sold out
Sale price
£99.43
Regular price
£99.43
Excl. VAT
Standard equipment includes: 1 contact point with tungsten carbide ball 2 mm Ø, 1 stem 8 mm Ø and 1 spanner for changing the contact points.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Horizontal Type
- range 0.8mm
- display type Non-Digital
- graduations 0.01mm
- bezel dia 40mm
- measuring units Metric
- scale 0-40-0
- brand Kafer
description
description
The friction clutch mechanism of these Dial Test Indicators provides a very effective shockproof system. Standard versions are equipped with contact points having a tungsten carbide ball of 2 mm diameter. On request contact points with ball diameters of 0.4 mm, 1 mm or 3 mm can be fitted. Also available are contact points with a 2 mm diameter ruby ball.
