Kroeplin

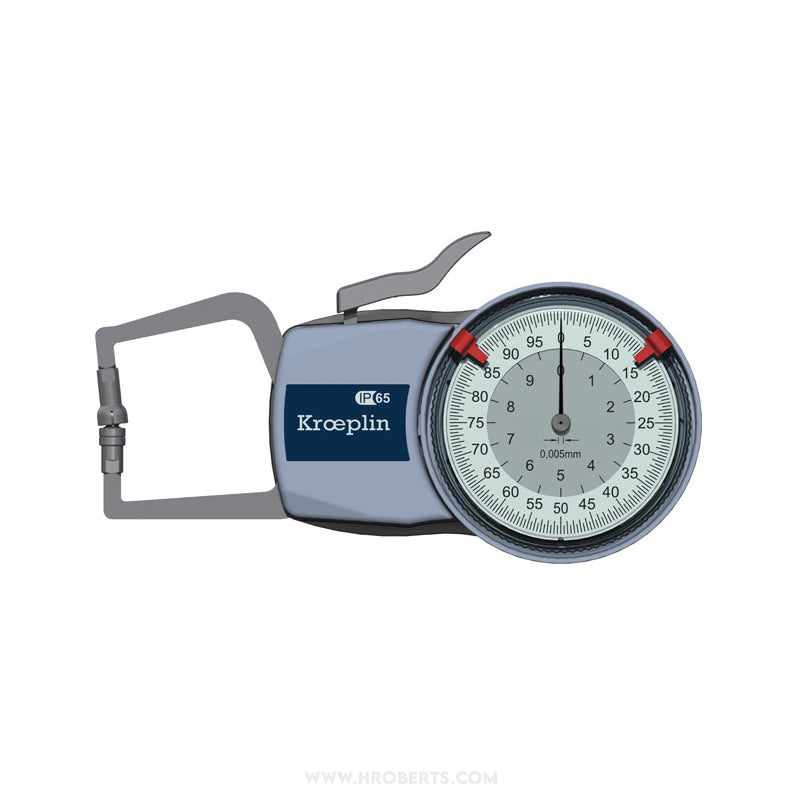

D110T External Caliper Gauge, Range 0-10mm, Graduation 0.005mm, Measuring Depth 35mm, Measuring Contact Flat 6mm, IP65 Protection
SKU:Code: D110T
Sale
Sold out
Regular price
£430.00
Save:
Sold out
Sale price
£430.00
Regular price
£430.00
Excl. VAT
Mechanical Length Measuring Instrument for External Measuements
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type External
- range 0-10mm
- display type Non-Digital
- graduations 0.005mm
- ip rating IP65
- measuring units Metric
- type of measuring contact moveable Flat 6mm Diameter
- measuring contact moveable hb 21.7mm
- type of-measuring-contact fixed Flat 6mm Diameter
- type of-measuring-contact fixed hf 14.8mm
description
description
Wherever geometric complexity rules out the use of conventional equipment such as calipers or internal micrometers, Kroeplin gauges are the perfect and inexpensive solution. Mechanical and electronic lever gauges are used in the metalworking industry and many other sectors.
