Images are for illustration purposes only - Products may differ.
Kroeplin

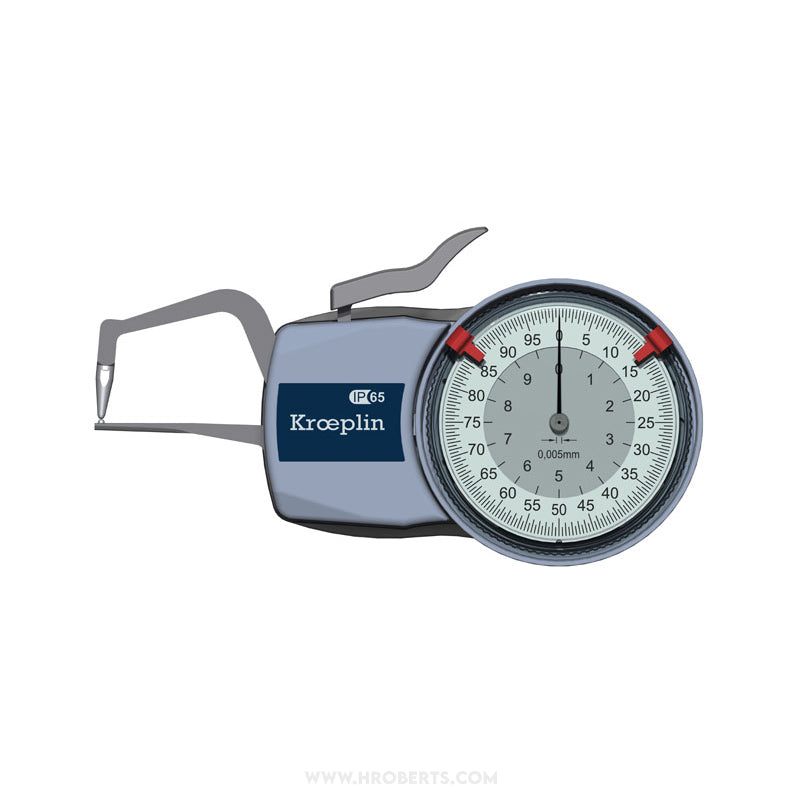

D1R10 External Dial Caliper Gauge, Range 0-10mm, Graduation 0.005mm, Measuring Depth 35mm, Measuring Contact Ball 1.5mm Diameter, IP65 Protection
SKU:Code: D1R10
Sale
Sold out
Regular price
£430.00
Save:
Sold out
Sale price
£430.00
Regular price
£430.00
Excl. VAT
Mechanical Length Measuring Instrument for External Measuements
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type External
- range 0-10mm
- display type Non-Digital
- graduations 0.005mm
- ip rating IP65
- measuring units Metric
- type of measuring contact moveable Ball 1.5mm Diameter
- measuring contact moveable hb 19.1mm
- type of-measuring-contact fixed Ball 1.5mm Diameter
- type of-measuring-contact fixed hf 0.9mm
- min bore diameter 3mm
description
description
Wherever geometric complexity rules out the use of conventional equipment such as calipers or internal micrometers, Kroeplin gauges are the perfect and inexpensive solution. Mechanical and electronic lever gauges are used in the metalworking industry and many other sectors.
technical drawings
PDF downloads
accessories
