Kroeplin

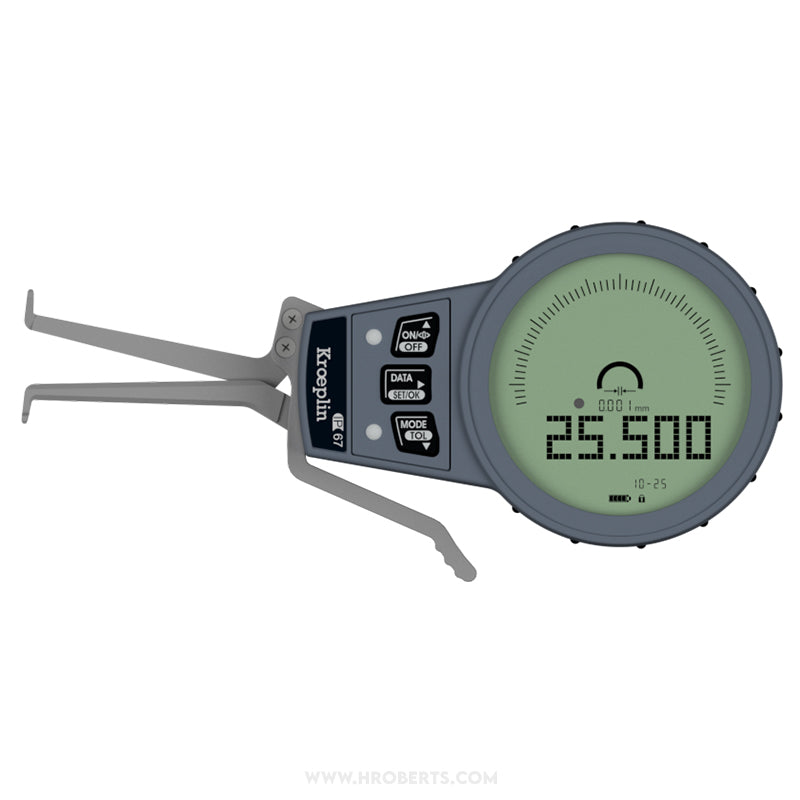

G010 Digital Internal Caliper Gauge, Range 10-25mm, Resolution 0.001, 0.002, 0.005, 0.01mm, Measuring Depth 46mm, Measuring Contact Ball 0.6mm Diameter, IP67 Protection, Metric / Imperial Switchable
SKU:Code: G010
Sale
Sold out
Regular price
£495.00
Save:
Sold out
Sale price
£495.00
Regular price
£495.00
Excl. VAT
Electronic Length Measuring Instrument for Internal Measuements
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Internal
- range 10-25mm
- display type Digital
- resolution 0.001 0.002 0.005 0.01mm
- ip rating IP67
- max grove depth 4mm
- max measuring depth 46mm / 0.47"
- measuring units Metric / Imperial
- max permissible errors 0.01mm
- repeatability 0.005mm
- range imperial 0.10-0.49"
- resolution imperial 0.0001 0.0002 0.0005"
- measuring contact moveable hb 4.4mm
- min groove width 1.5mm
- measuring contact Ball 0.6mm Diameter
- drawing 2
description
description
Wherever geometric complexity rules out the use of conventional equipment such as calipers or internal micrometers, Kroeplin gauges are the perfect and inexpensive solution. Mechanical and electronic lever gauges are used in the metalworking industry and many other sectors.
technical drawings
PDF downloads
accessories
