Images are for illustration purposes only - Products may differ.
Kroeplin

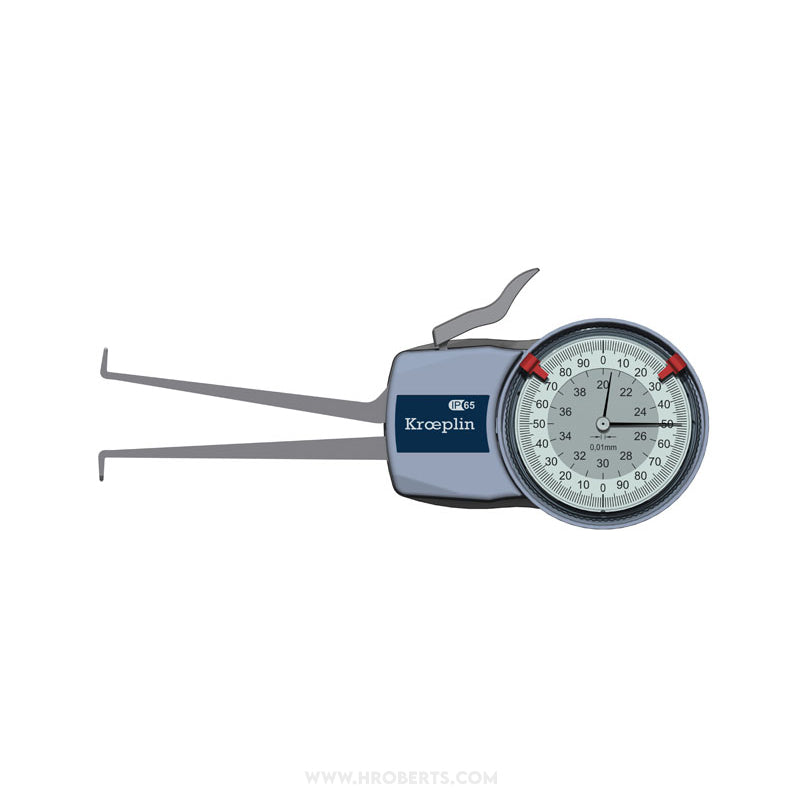

H220 Internal Caliper Gauge, Range 20-40mm, Resolution 0.01mm, Measuring Depth 85mm, Measuring Contact Ball 1mm Diameter, IP65 Protection
SKU:Code: H220
Sale
Sold out
Regular price
£430.00
Save:
Sold out
Sale price
£430.00
Regular price
£430.00
Excl. VAT
Mechanical Length Measuring Instrument for External Measuements
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Internal
- range 20-40mm
- display type Non-Digital
- graduations 0.01mm
- ip rating IP65
- max grove depth 7mm
- measuring units Metric
- measuring contact moveable hb 7.3mm
- type of-measuring-contact fixed hf 7.3mm
- min groove width 1.5mm
- measuring contact Ball 1mm Diameter
description
description
Wherever geometric complexity rules out the use of conventional equipment such as calipers or internal micrometers, Kroeplin gauges are the perfect and inexpensive solution. Mechanical and electronic lever gauges are used in the metalworking industry and many other sectors.
technical drawings
PDF downloads
accessories
