Images are for illustration purposes only - Products may differ.
Kroeplin

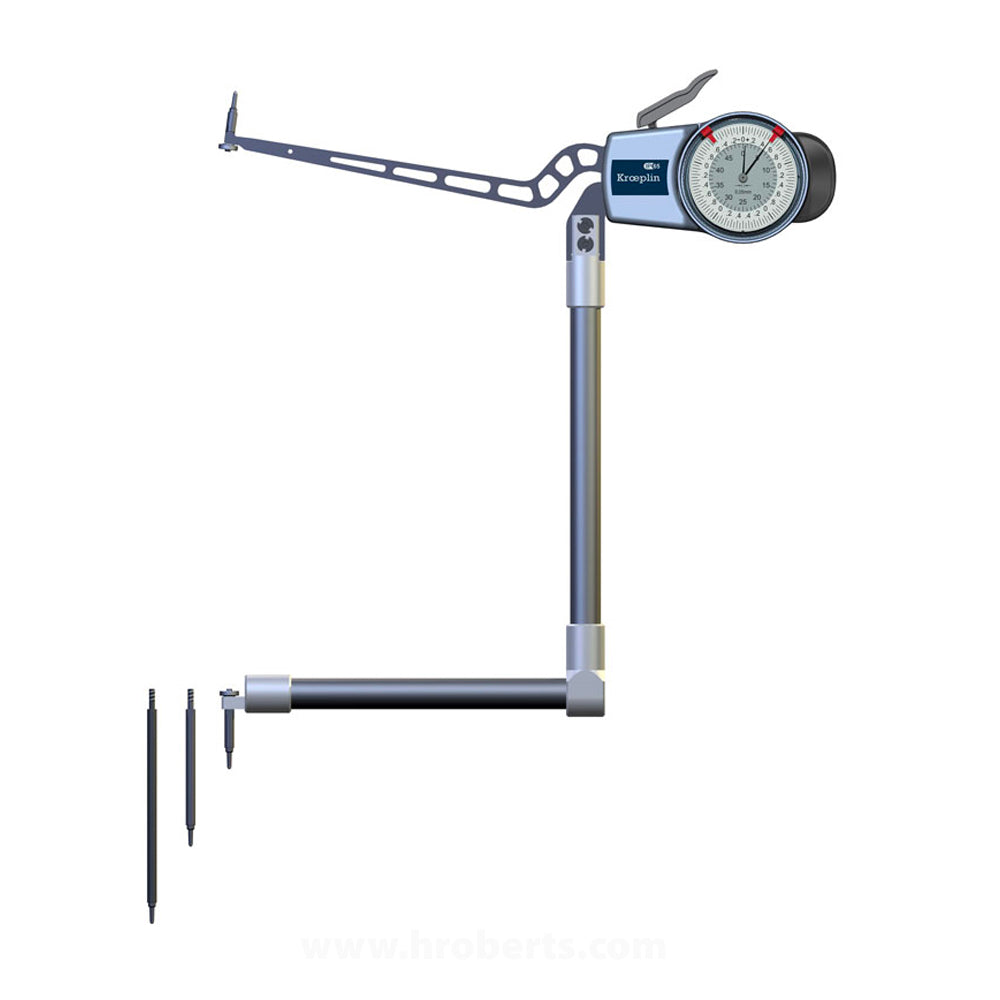

H4M300 Internal Caliper Gauge, Range 300-430mm, Graduation 0.05mm, Measuring Depth 170mm, Measuring Contact Ball 2mm Diameter, IP65 Protection
SKU:Code: H4M300
Sale
Sold out
Regular price
£811.00
Save:
Sold out
Sale price
£811.00
Regular price
£811.00
Excl. VAT
Mechanical Length Measuring Instrument for External Measuements
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Internal
- range 300-430mm
- display type Non-Digital
- graduations 0.05mm
- ip rating IP65
- max grove depth 8.3mm
- measuring units Metric
- measuring contact moveable hb 21.0mm
- type of-measuring-contact fixed hf Variable
- min groove width 2.5mm
- measuring contact Ball 2mm Diameter
description
description
Wherever geometric complexity rules out the use of conventional equipment such as calipers or internal micrometers, Kroeplin gauges are the perfect and inexpensive solution. Mechanical and electronic lever gauges are used in the metalworking industry and many other sectors.
technical drawings
PDF downloads
accessories
