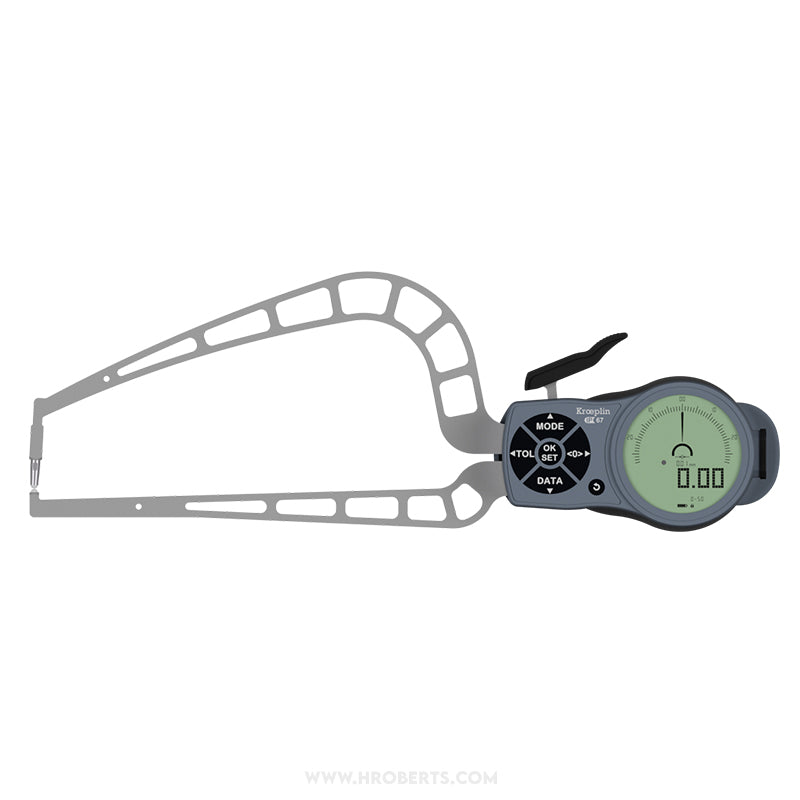

K4R50 Digital External Caliper Gauge, Range 0-50mm, Resolution 0.001, 0.002, 0.005, 0.01, 0.02, 0.05mm, Measuring Depth 169mm, Measuring Contact Ball 3mm Diameter, IP67 Protection, Metric / Imperial Switchable
SKU:Code: K4R50
Sale
Sold out
Regular price
£611.00
Save:
Sold out
Sale price
£611.00
Regular price
£611.00
Excl. VAT
Electronic Length Measuring Instrument for External Measuements
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type External
- range 0-50mm
- display type Digital
- resolution 0.001 0.002 0.005 0.01 0.02 0.05mm
- ip rating IP67
- max measuring depth 169mm / 6.7"
- measuring units Metric / Imperial
- max permissible errors 0.05mm
- repeatability 0.03mm
- range imperial 0-1.97"
- resolution imperial 0.00005 0.0001 0.0002 0.0005 0.001 0.002"
- type of measuring contact moveable Ball 3mm Diameter
- measuring contact moveable hb 30mm
- type of-measuring-contact fixed Ball 3mm Diameter
- type of-measuring-contact fixed hf 4.3mm
- min bore diameter 13mm
- drawing 10
description
description
Wherever geometric complexity rules out the use of conventional equipment such as calipers or internal micrometers, Kroeplin gauges are the perfect and inexpensive solution. Mechanical and electronic lever gauges are used in the metalworking industry and many other sectors.
