Kroeplin

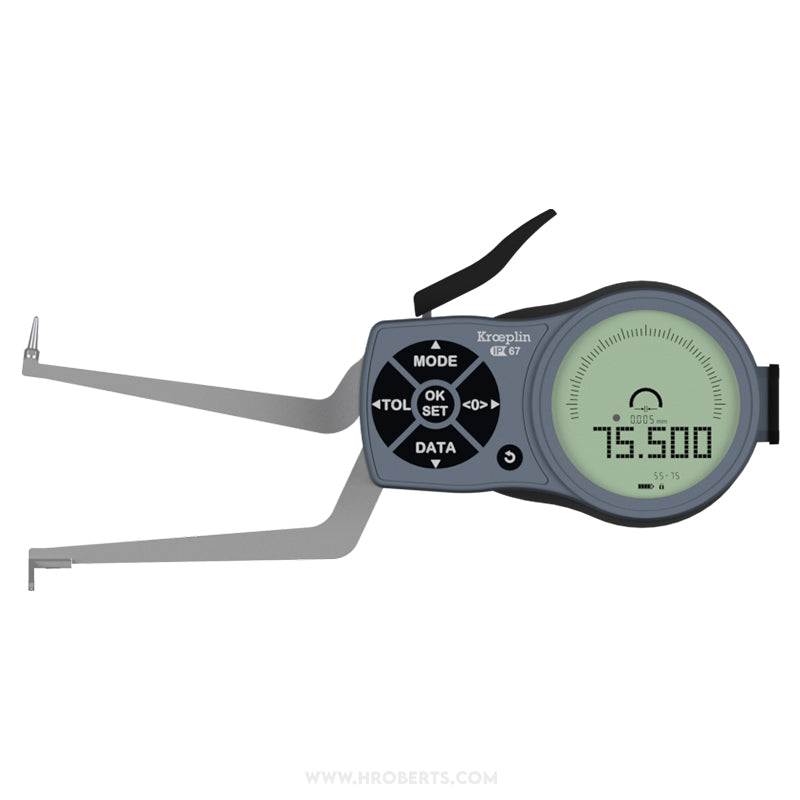

L255P3 Digital Internal Caliper Gauge, 3-Point Contact, Range 55-75mm, Resolution 0.001, 0.002, 0.005, 0.01, 0.02, 0.05mm, Measuring Depth 84mm, Measuring Contact Ball 1mm Diameter, IP67 Protection, Metric / Imperial Switchable
SKU:Code: L255P3
Sale
Sold out
Regular price
£531.00
Save:
Sold out
Sale price
£531.00
Regular price
£531.00
Excl. VAT
Electronic Length Measuring Instrument for Internal Measuements
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Internal
- range 55-75mm
- display type Digital
- resolution 0.001 0.002 0.005 0.01 0.02 0.05mm
- ip rating IP67
- max grove depth 8.0mm
- max measuring depth 84mm / 3.31"
- measuring units Metric / Imperial
- max permissible errors 0.02mm
- repeatability 0.01mm
- range imperial 2.17-2.95"
- resolution imperial 0.00005 0.0001 0.0002 0.0005 0.001 0.002"
- measuring contact moveable hb 12.2mm
- min groove width 1.6mm
- measuring contact Ball 1mm Diameter
- drawing 3
description
description
Wherever geometric complexity rules out the use of conventional equipment such as calipers or internal micrometers, Kroeplin gauges are the perfect and inexpensive solution. Mechanical and electronic lever gauges are used in the metalworking industry and many other sectors.
