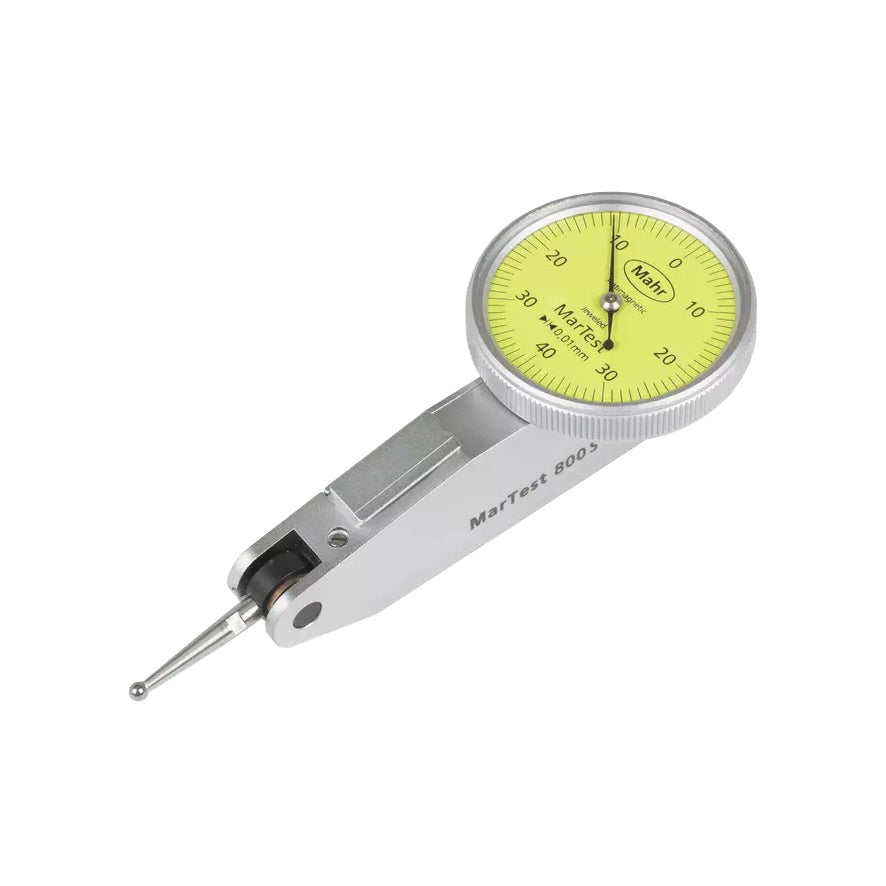

Mahr 4305200 Dial Test indicator MarTest 800 S, Graduation 0.01mm, Range 0.8mm, Scale 0-40-0, Stylus Length 17.8mm, Bezel Diameter 30mm
SKU:Code: 4305200
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Horizontal Type
- range 0.8mm
- display type Non-Digital
- graduations 0.01mm
- bezel dia 40mm
- measuring units Metric
- scale 0-40-0
- brand Mahr
Product features
High-contrast dial face, sealed with O-ring
Mineral glass viewing panel for best protection:
- against cracking, scratching or damage caused by hot shavings
- optimum resistance to solvents
Matt chrome-plated protective casing with three integrated dovetail guide rails
Shockproof measuring mechanism
Anti-magnetic model
Automatic adjustment to the contacting direction ensuring infallible readings
Ball bearing mounted double lever
Friction clutch overload protection
Scope of delivery
spanner for changing the styli, stylus dia. ø 2 mm, mounting shaft 800a8, test certificate, instruction manual, case
