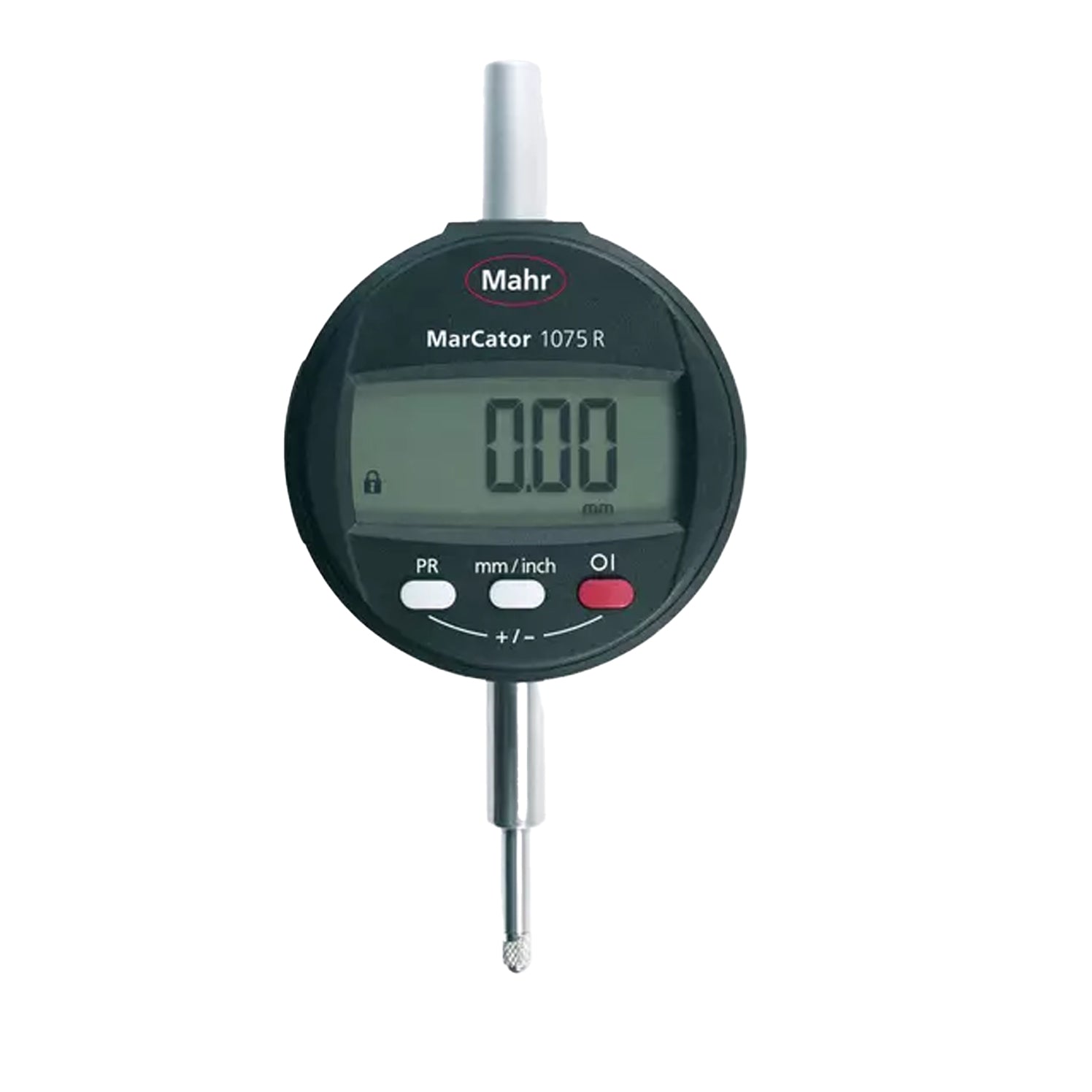

Mahr 4336010 MarCator 1075 R Digimatic Digital Indicator ID-SX, Range 0.5" / 12.5mm, Resolution 0.0005" / 0.01mm
SKU:Code: 4336010
Sale
Sold out
Regular price
£130.50
Save: 20%
Sold out
Sale price
£130.50
Regular price
£163.00
Excl. VAT
High contrast LCD display, thus very clear and safe to read
Protection cap on end of measuring pin
Mounting shank and measuring spindle are both made of hardened stainless steel
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- range 0.5" / 12.5mm
- display type Digital
- resolution 0.01mm / 0.0005"
- data output Yes
- ip rating IP52
- measuring units Imperial / Metric
- stem dia 8mm
- contact point thread M2.5
- brand Mahr
description
description
Cost-effective and user-friendly type equipped with only the basic functions necessary. The ABSOLUTE sensor restores the last origin position automatically when the indicator is turned on, and ensures high reliability by eliminating over-speed errors. Battery life of 20,000 hours in continuous use. Easy-to-read large LCD readout with a character height of 8.5 mm. Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.
