Mahr

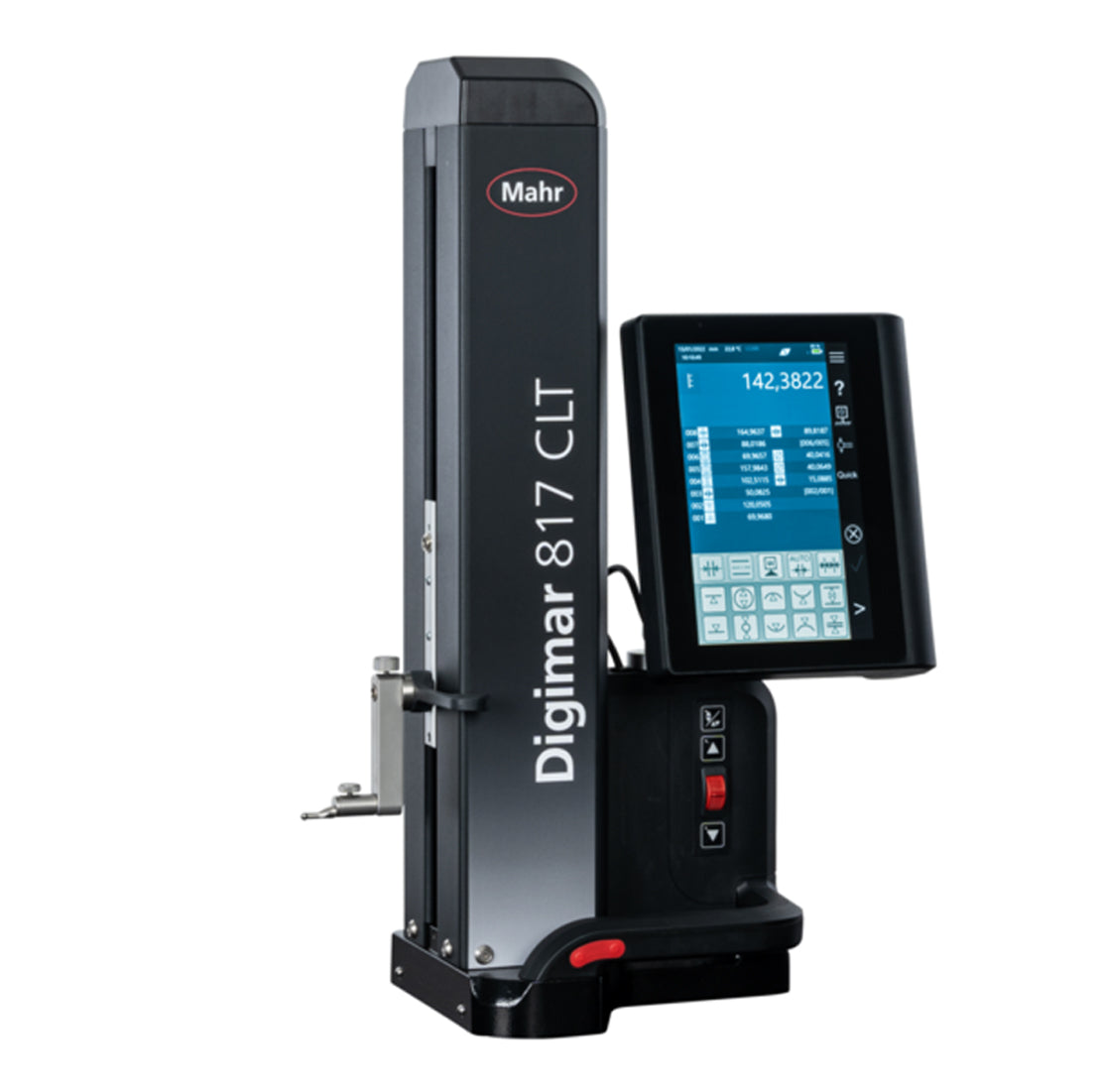

4429600 Height Gauge Digimar 817 CLT 0-350mm
SKU:Code: 4429600
Sale
Sold out
Regular price
£5,718.60
Sale
Sold out
Sale price
£5,718.60
Regular price
£6,727.50
Excl. VAT
Digimar 817 CLT - Motorized measurement - fast, safe, easy.
Touch operation, ergonomic handling and a wide range of evaluation options: This is what the Digimar 817 CLT height measuring device stands for.
Reaching great heights with maximum precision and flexibility
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Measuring
- range 0-350mm / 14"
- resolution 0.001mm 0.0001mm / 0.00005" 0.000005"
- power supply 240v
- mass 22.2Kg
- battery Yes
- power supply 240v
- suspension Yes
- setting master Yes
description
description
Excellent measuring accuracy and reliability due to optical incremental measuring system with double reading head.
• Dynamic probe system for high repeatability
• Air bearing system for easy, jerk-free displacement
• Measuring head guided in precision ball bearings
• Simple measuring sequences due to motorised measuring slide
• Probe constant remains after switch-off
• Integrated rechargeable battery with high operating time for mains-independent measuring
• Temperature compensation via int. temperature sensor
• Dynamic probe system for high repeatability
• Air bearing system for easy, jerk-free displacement
• Measuring head guided in precision ball bearings
• Simple measuring sequences due to motorised measuring slide
• Probe constant remains after switch-off
• Integrated rechargeable battery with high operating time for mains-independent measuring
• Temperature compensation via int. temperature sensor
technical drawings
PDF downloads
accessories
