Mitutoyo
02AGD440 Centre Support
SKU:Code: 02AGD440
Sale
Sold out
Regular price
£515.00
Save:
Sold out
Sale price
£515.00
Regular price
£515.00
Excl. VAT
Standard Accessory for a Miutoyo Laser Scan Micrometer
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Mitutoyo 02AGD440 Centre Support
- remarks Application - LSM-501S/503S/6902H
description
description
Horizontal adjustment:
5 mm (.2") or more
Point angle:
60°
Center point clamping force:
1.1 kgf
Mass:
0.18 kg (.4lbs.)
Description:
Centre Support

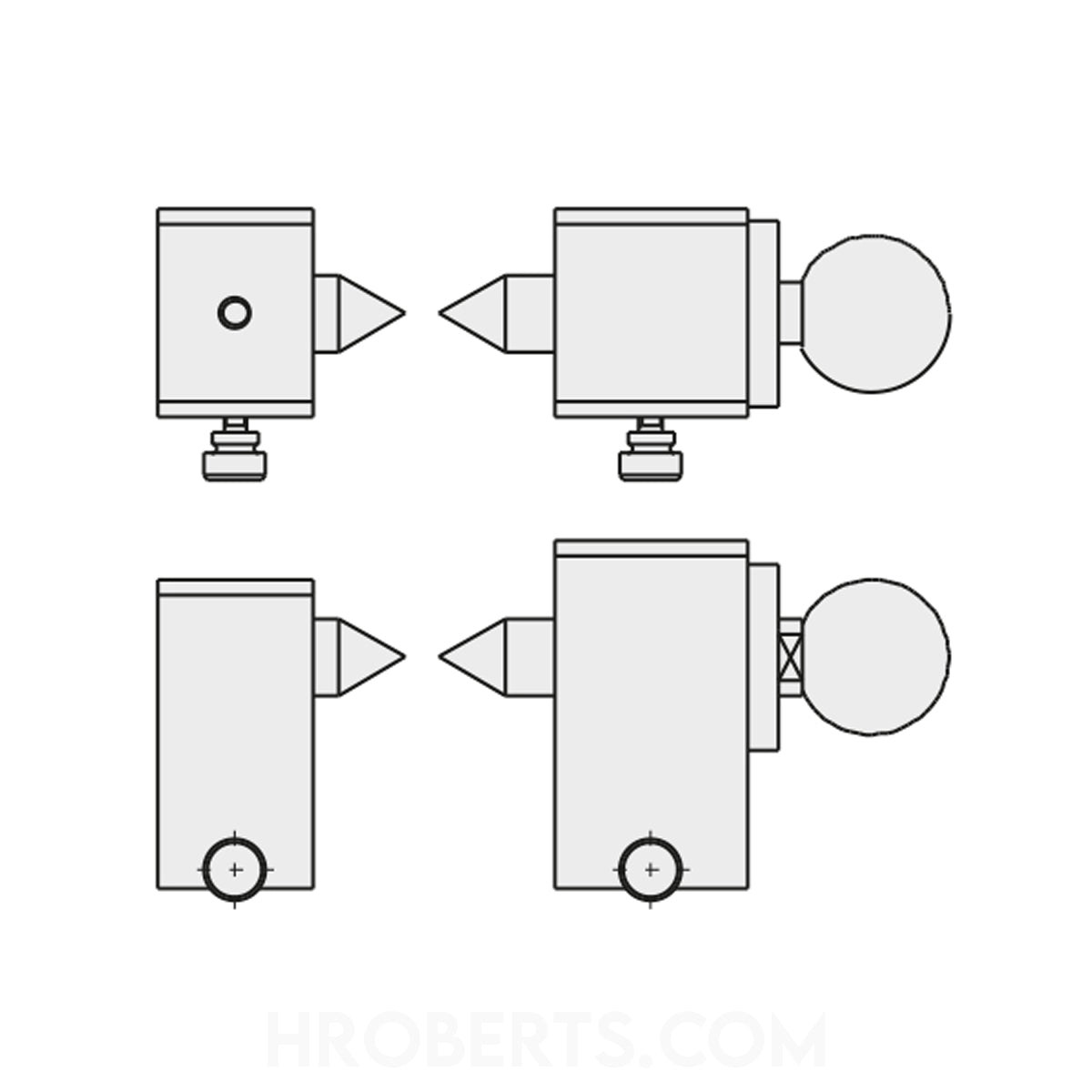

technical drawings
PDF downloads
accessories
