Mitutoyo

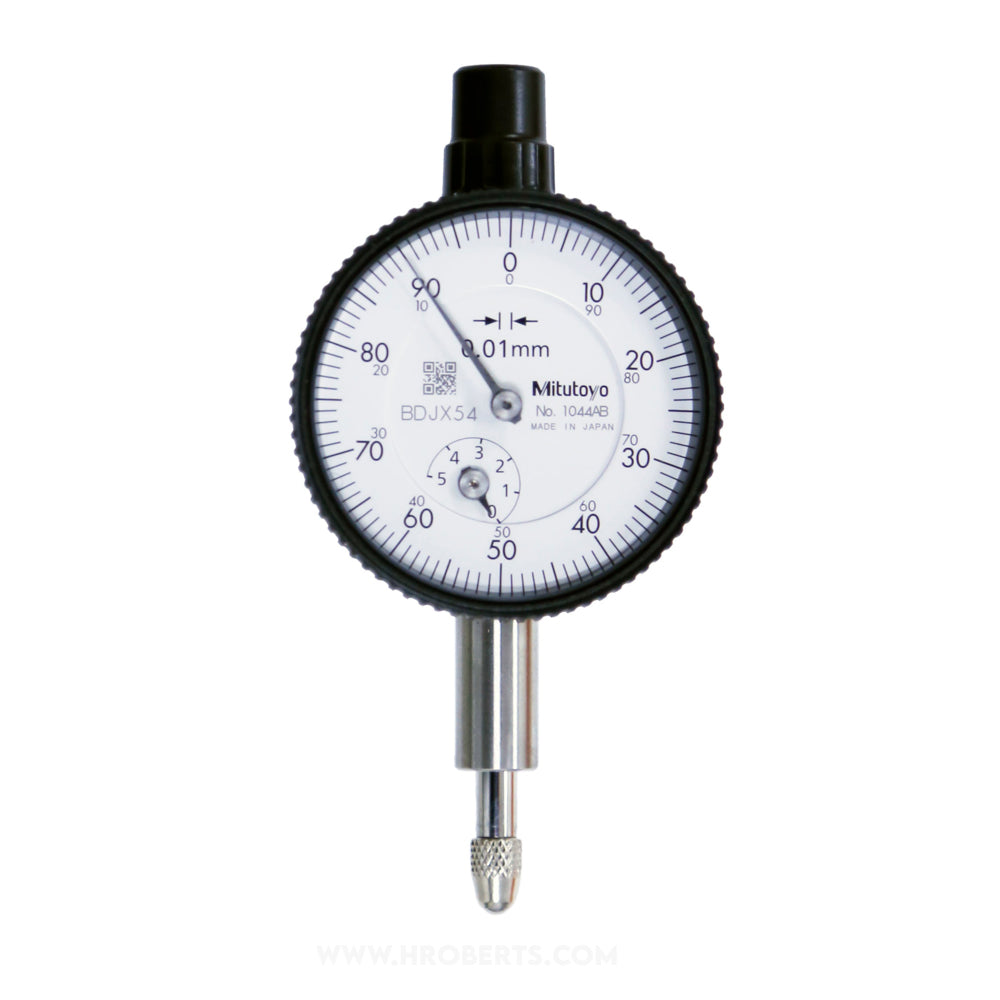

1044A Dial Indicator, Graduation 0.01mm, Range 5mm, Scale 0-100, Bezel Diameter 40mm
SKU:Code: 1044A
Sale
Sold out
Regular price
£44.40
Save: 25%
Sold out
Sale price
£44.40
Regular price
£59.20
Excl. VAT
Series 1 Compact dial indicators ideal for restricted-space applications in gauging jigs. Watertight assembly of bezel and crystal as well as the use of an O-ring prevents water or oil penetration.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Dial Indicator
- range 5mm
- range rev 1mm
- display type Non-Digital
- graduations 0.01mm
- bezel dia 40mm
- measuring force 1.4 N or Less
- measuring units Metric
- stem dia 8mm
- remarks Dial Gauge Series 1
- scale 0-100
- contact point thread M2.5 x 0.45
- back Centre Lug
description
description
Compact dial indicators ideal for restricted-space applications in gauging jigs. The bezel clamp 21AZB149, lifting lever and Limit Hands ( 2 pcs ) 21AAB363 which are all optional. Watertight assembly of bezel and crystal as well as the use of an O-ring prevents water or oil penetration. The stem and spindle are made of high-strength quench-hardened stainless steel suitable for heavy duty use. A carbide contact point is used. Application of an anti-reflective and hard surface coating improves scale visibility along with scratch and chemical resistance.
