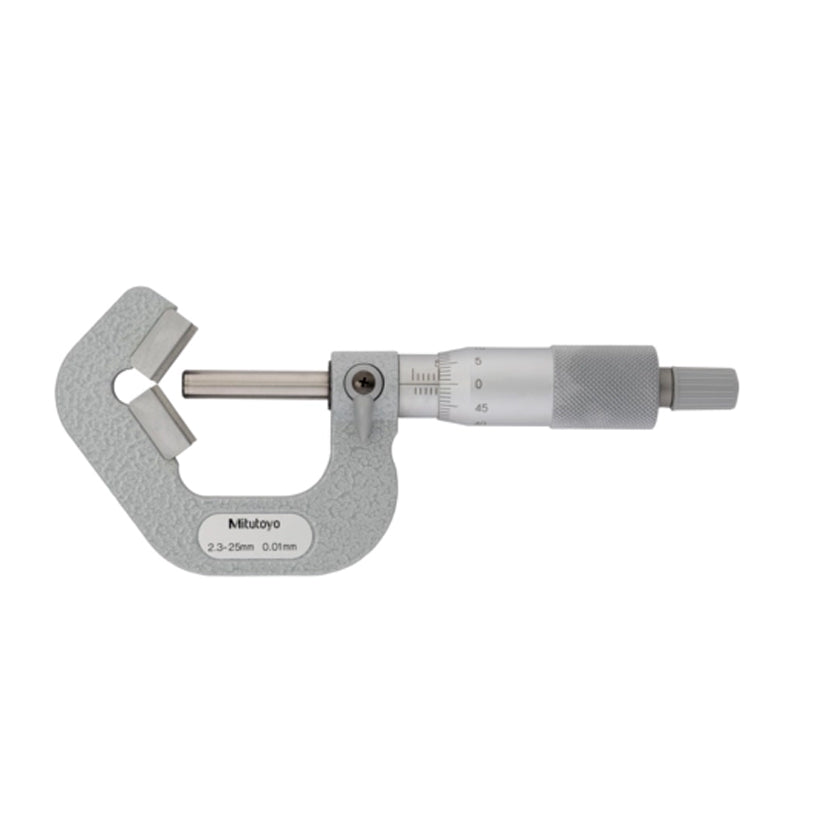

Mitutoyo 114-137 Five Flute V-Anvil Micrometer, Range 2.3-25mm, Graduation 0.01mm
SKU:Code: 114-137
Sale
Sold out
Regular price
£334.50
Save: 25%
Sold out
Sale price
£334.50
Regular price
£446.00
Excl. VAT
Measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have five flutes
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type V-Anvil
- range 2.3-25mm
- display type Non-Digital
- graduations 0.01mm
- accuracy ±4 μm
- measuring units Metric
- anvil 108 Degree
- brand Mitutoyo
description
description
This V-Anvil Micrometer helps you measure cutting tools and taps. It offers the following benefits: It measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three or five flutes.V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method
