Images are for illustration purposes only - Products may differ.
Mitutoyo
146-134 Groove Micrometer, Range Outside 2-3", Range Inside 2.05-3.05", Graduation 0.001", Flange Dia 0.5"
SKU:Code: 146-134
This item is no longer available or has been discontinued.
Our recommended alternative
Micrometers

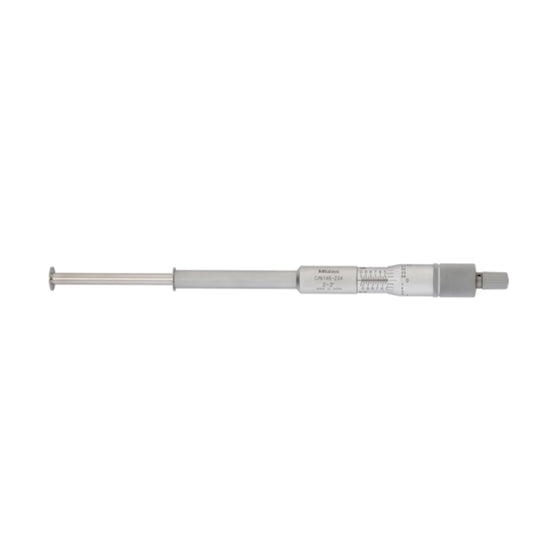

Mitutoyo 146-234 Non-Rotating Spindle Groove Micrometer, Range Outside 2-3", Range Inside 2.05-3.05", Graduation 0.001", Flange Dia 0.5"
Regular price £391.50Sale price £391.50 Regular priceExcl. VAT£522.00
Flanged spindle and anvil for measuring width and location of grooves inside bores and tubes. Dual scales for direct reading of inside and outside measurements.
Need more information? Ask a question or contact us.
Specification
Specification
- type Groove
- range 2-3" Outside
- display type Non-Digital
- graduations 0.001"
- accuracy ±0.0004"
- measuring units Imperial
- parallelism ±0.0004"
description
description
A Mitutoyo non-digital tubular micrometer equipped with concentric, disc-shaped anvils for making measurements inside holes, such as width, depth and location of grooves and projections. Separate graduations for inside and outside measurements avoid need for corrections for anvil thickness. A ratchet stop guarantees repeatable measurement
