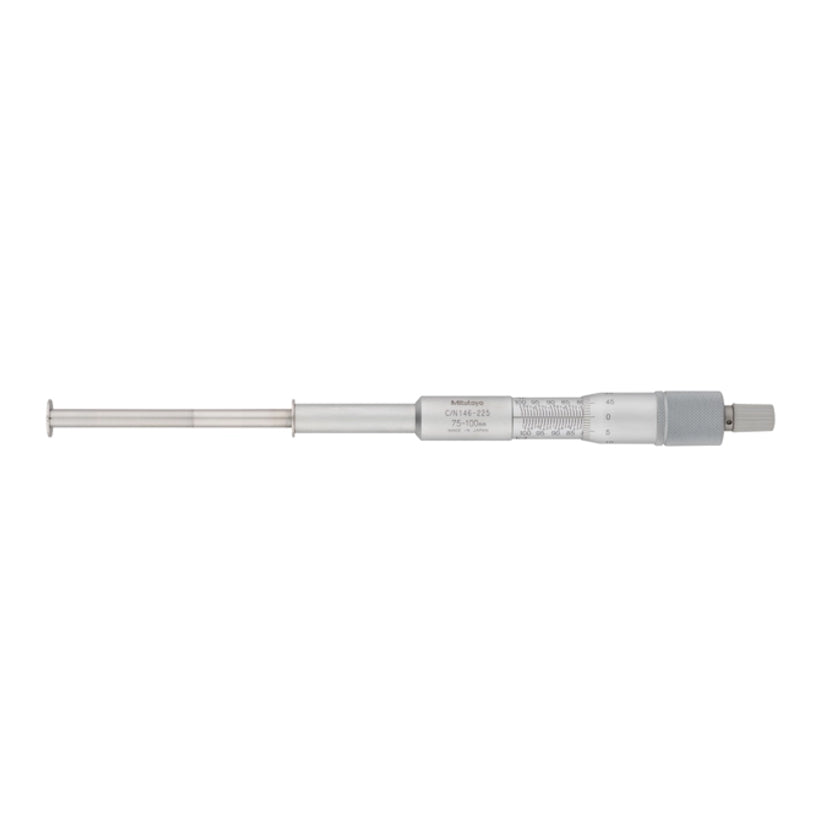

Mitutoyo 146-225 Non-Rotating Spindle Groove Micrometer, Range Outside 75-100mm, Range Inside 76.5-101.5mm, Graduation 0.01mm, Flange Dia 12.7mm
SKU:Code: 146-225
Sale
Sold out
Regular price
£402.00
Save: 25%
Sold out
Sale price
£402.00
Regular price
£536.00
Excl. VAT
Flanged spindle and anvil for measuring width and location of grooves inside bores and tubes. Dual scales for direct reading of inside and outside measurements.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Groove
- range 75-100mm Outside
- display type Non-Digital
- graduations 0.01mm
- accuracy ±10 µm
- measuring units Metric
- parallelism ±10 µm
- brand Mitutoyo
description
description
A non-digital tubular Mitutoyo micrometer equipped with concentric, disc-shaped anvils for making measurements inside holes, such as width, depth and location of grooves and projections. Separate graduations for inside and outside measurements avoid need for corrections for anvil thickness. A ratchet stop guarantees repeatable measurement.
