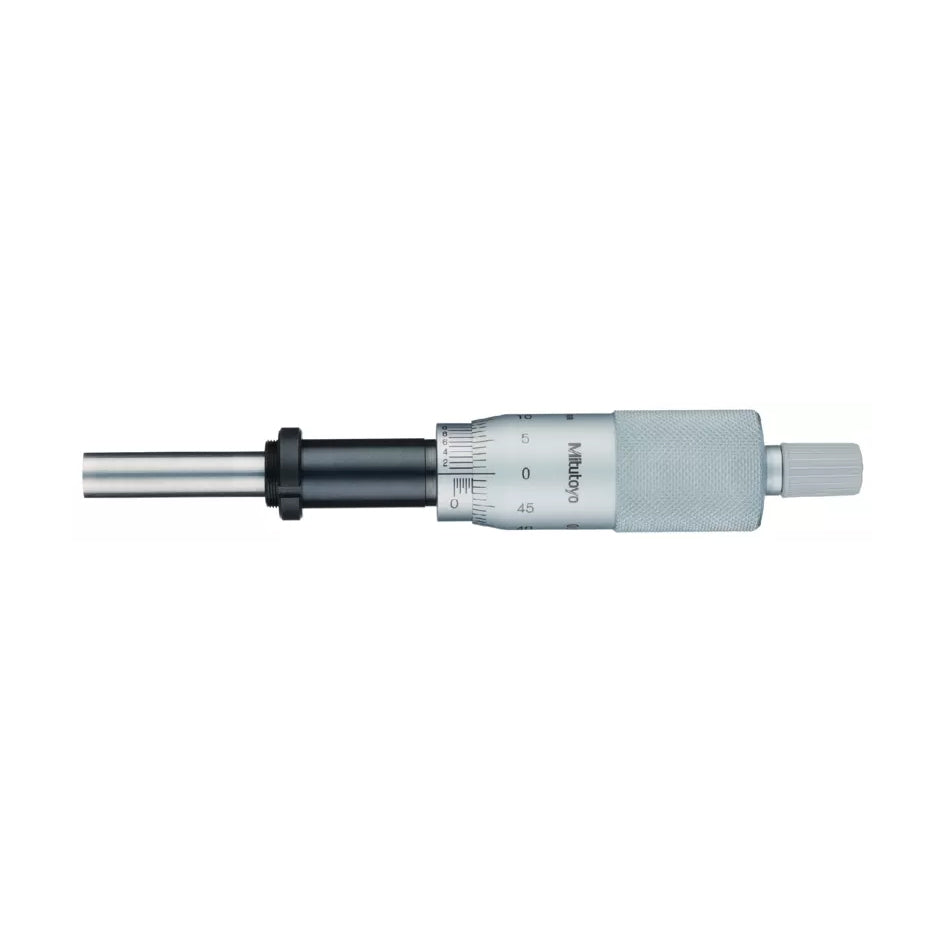

Mitutoyo 151-221 Standard Micrometer Head, Range 0-25mm, Graduation 0.001mm
SKU:Code: 151-221
Sale
Sold out
Regular price
£69.00
Save: 25%
Sold out
Sale price
£69.00
Regular price
£92.00
Excl. VAT
Larger spindle for heavy-duty applications. Carbide-tipped spindle provides high abrasion resistance.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Standard
- range 0-25mm
- display type Non-Digital
- graduations 0.001mm
- measuring units Metric
- spindle end Flat
- stem dia 12mm
- stem type Locknut
- remarks With Vernier
- max permissible errors ±2 μm
- measuring face Carbide Tipped
- brand Mitutoyo
description
description
A medium sized, standard, high resolution, non-digital Mitutoyo micrometer head with M12 clamp-nut stem and heavy-duty Ì÷8mm spindle fitted with flat tungsten-carbide tip. Ratchet stop.

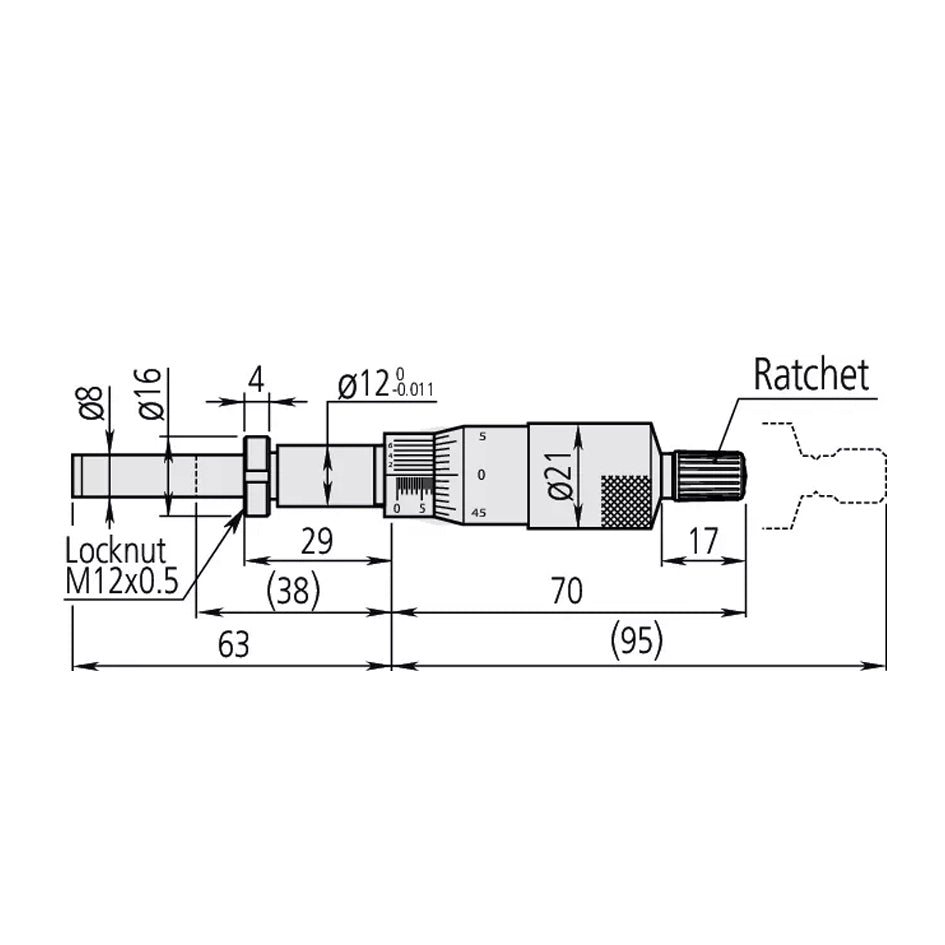

technical drawings
