Images are for illustration purposes only - Products may differ.

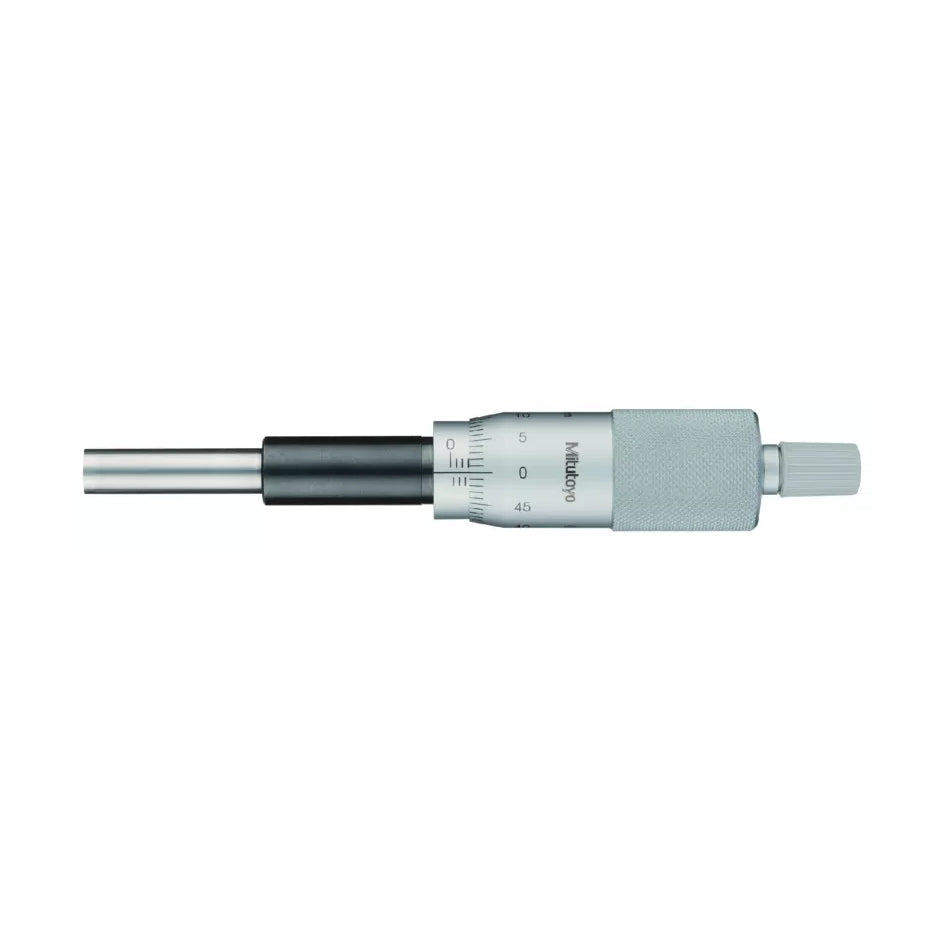

Mitutoyo 151-224 Standard Micrometer Head, Range 0-25mm, Graduation 0.01mm
SKU:Code: 151-224
Sale
Sold out
Regular price
£65.48
Save: 25%
Sold out
Sale price
£65.48
Regular price
£87.30
Excl. VAT
Larger spindle for heavy-duty applications. Carbide-tipped spindle provides high abrasion resistance.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Standard
- range 0-25mm
- display type Non-Digital
- graduations 0.01mm
- measuring units Metric
- spindle end Flat
- stem dia 12mm
- stem type Plain
- max permissible errors ±2 μm
- measuring face Carbide Tipped
- brand Mitutoyo
description
description
These micrometer heads are a medium-sized, standard type.
They offer the following benefits:
- 8 mm diameter spindle
- Extremely sturdy micrometer head with or without a ratchet.

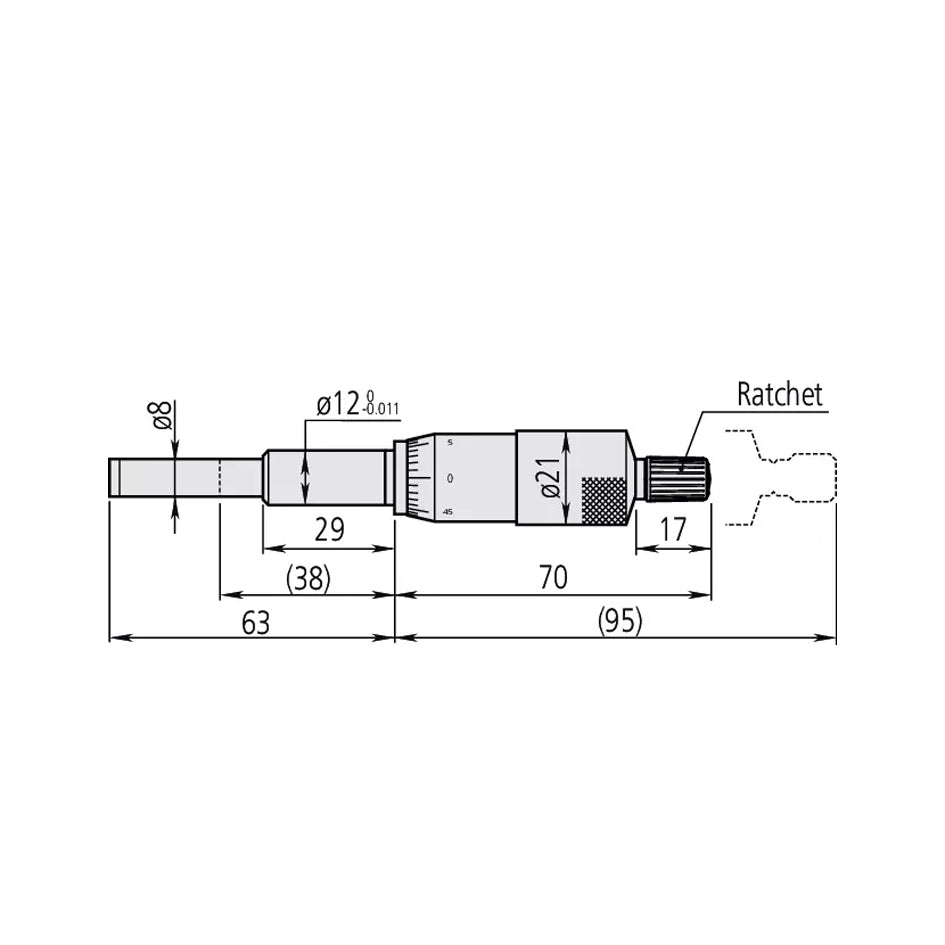

technical drawings
PDF downloads
accessories
