Mitutoyo

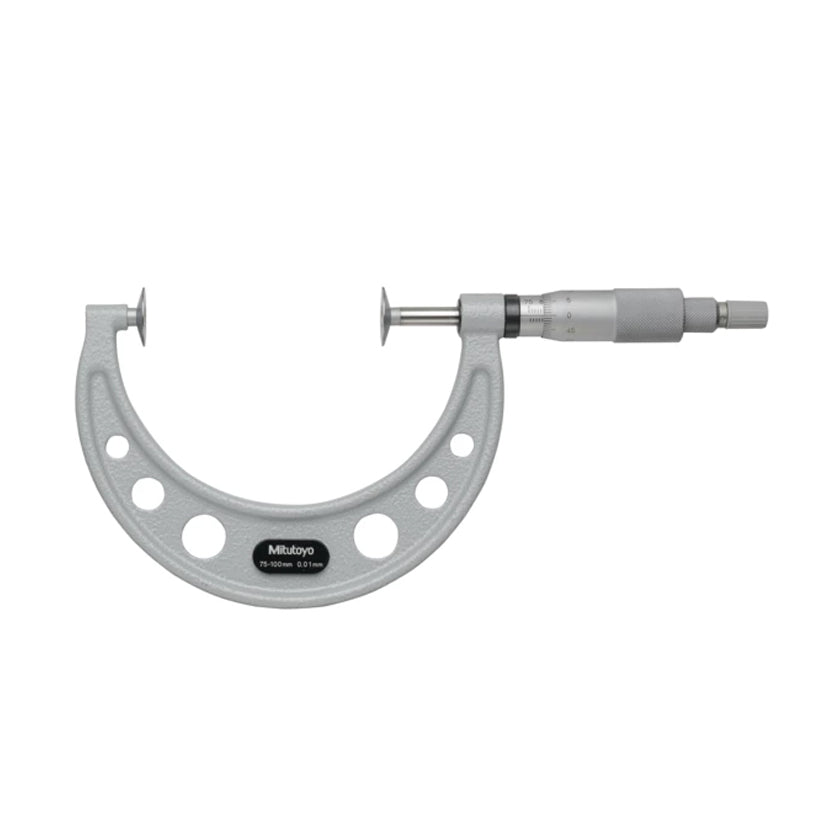

169-207-10 Non-Rotating Spindle Disc Micrometer, Range 75-100mm, Graduation 0.01mm, Disc Dia 20mm
SKU:Code: 169-207-10
Sale
Sold out
Regular price
£254.25
Save: 25%
Sold out
Sale price
£254.25
Regular price
£339.00
Excl. VAT
You can measure recessed features that are difficult to reach with a standard micrometer
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Disc
- range 75-100mm
- display type Non-Digital
- graduations 0.01mm
- measuring units Metric
description
description
Can be used for making root tangent measurements on spur gears and helical gears. Measurable range of gear pitch: 0.5 to 6 module.
