Mitutoyo
177-312 Steel Setting Ring 300mm
SKU:Code: 177-312
Sale
Sold out
Regular price
£2,242.50
Save: 25%
Sold out
Sale price
£2,242.50
Regular price
£2,990.00
Excl. VAT
A Mitutoyo steel calibration artefact for quick and accurate setting of dial bore gauges, Holtest gauges, and inside micrometers. The actual calibration value for the diameter is marked on each ring.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Setting Ring
- measuring units Metric

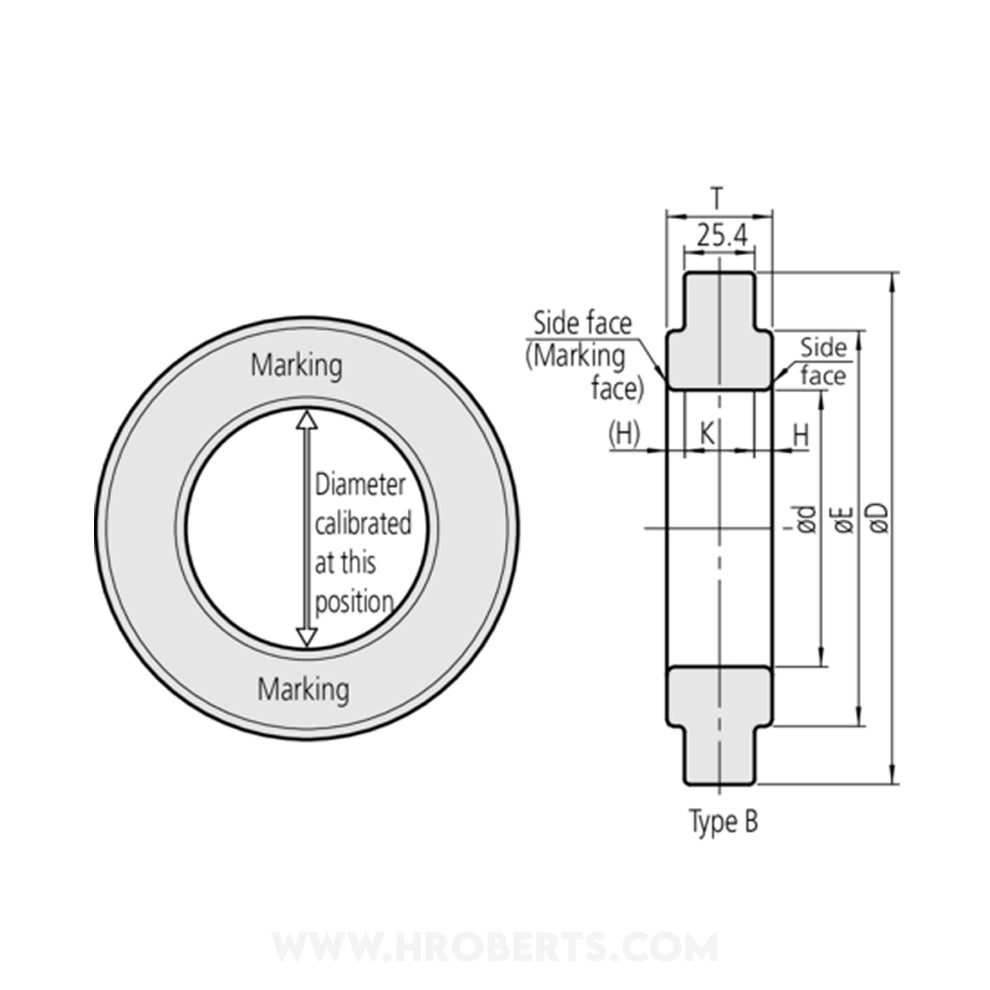

- remarks Ring Type B
- dimension b 438mm
- dimension e 340mm
- nominal size 300mm
- dimension t 38.1mm / 25.4mm
- tolerance between the nominal size and the actual diameter ±20µm
- uncertainty of marked diameter value ±2.5µm
- roundness Cylindricity 3µm
- distance from the side face h 5.3mm
- size of warranted calibration surface k 27.5mm
description
description
The primary purpose of a setting ring is to calibrate or set the measuring equipment, such as bore gauges or inside micrometers, to a known reference dimension.
technical drawings
PDF downloads
accessories
