Images are for illustration purposes only - Products may differ.
Mitutoyo

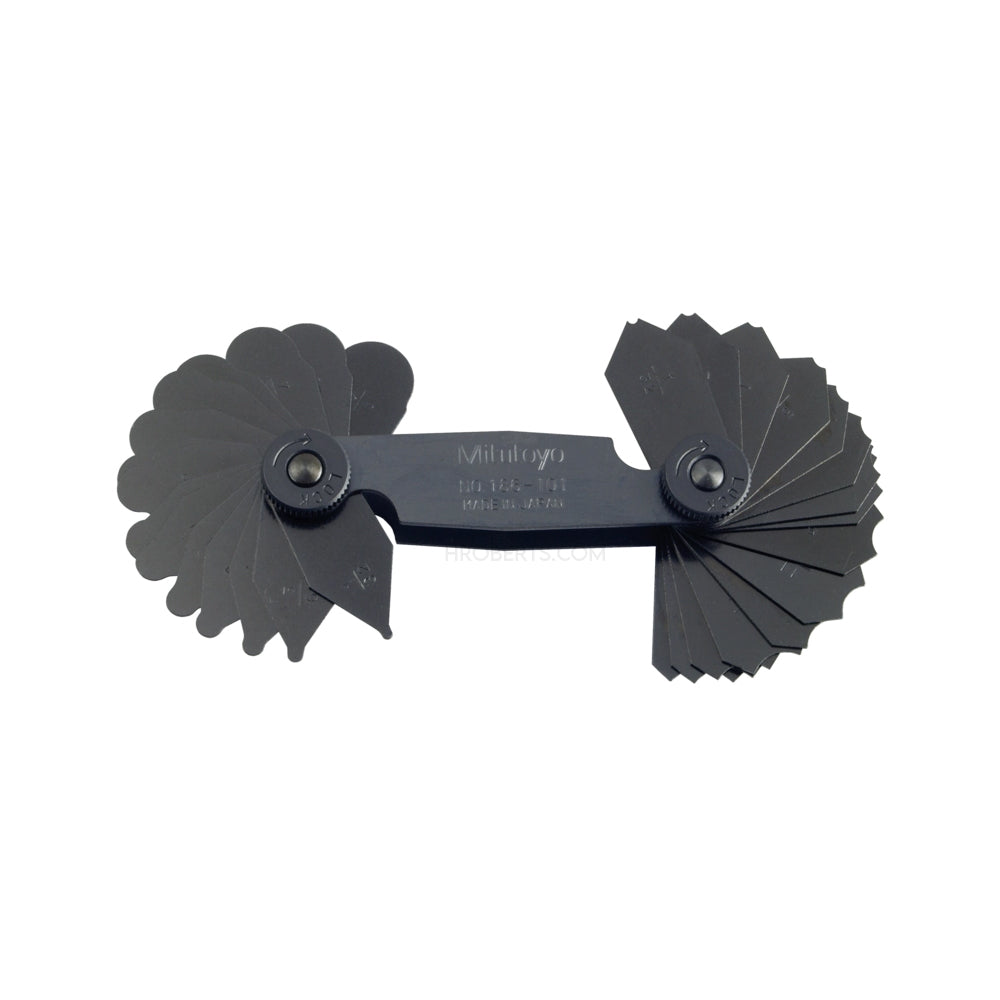

186-101 Radius Gauge Set Range 1/32" - 1/4" with 15 Leaves
SKU:Code: 186-101
Sale
Sold out
Regular price
£30.00
Save: 25%
Sold out
Sale price
£30.00
Regular price
£40.00
Excl. VAT
Designed for gauging small internal and external radii. Each leaf comprises an internal and an external radius gauge of the same size. Radius size is stamped on each leaf. With locking clamp to enable convenient handling
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Radius Gauge Sets
- range 1/32"-1/4"
- graduations 1/32"-1/4" by 64ths
- measuring units Imperial
- remarks Number of Leaves - 15
- remarks 1 Mounting via Sleeve
- remarks 2 180° arc
description
description
A radius gauge set is a tool used in various industries and applications to measure or check the radius of a curved or rounded surface. It consists of a set of individual gauges, each with a specific radius measurement
