Mitutoyo 227-213-20 Digimatic Absolute Digital Adjustable Measuring Force Micrometer, Range 0.6-1.2" / 15.24-30.48mm, Resolution 0.00005" / 0.001mm, Non-Rotating Splindle with SPC Data Output
SKU:Code: 227-213-20
Sale
Sold out
Regular price
£747.75
Save: 25%
Sold out
Sale price
£747.75
Regular price
£997.00
Excl. VAT
Digimatic micrometer dedicated to applications requiring a constant/low measuring force such as
measuring wire, paper, and plastic/rubber parts.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Adjustable Force
- range 0.6-1.2" / 15.24-30.48mm
- display type Digital
- resolution 0.00005" / 0.001mm
- data output Yes
- measuring force 0.5 / 1.0 / 1.5 / 2.0 / 2.5 N
- measuring units Imperial / Metric
- constant-force device Ratchet Thimble
- mass 380g
- measuring face Carbide Tipped
- hold button Yes
- zero setting Yes
- abs measure system Yes
- brand Mitutoyo
description
description
This Quickmike has an adjustable measuring force to suit various kinds of workpieces. The ABSOLUTE Digimatic Micrometer Quickmike offers the following benefits: It‘s dedicated to applications requiring a constant/low measuring force such as measuring wire, paper and plastic/rubber parts. Constant and low measuring force mechanism in the thimble. Non-rotating spindle. Speedy spindle feed of 10mm/rev

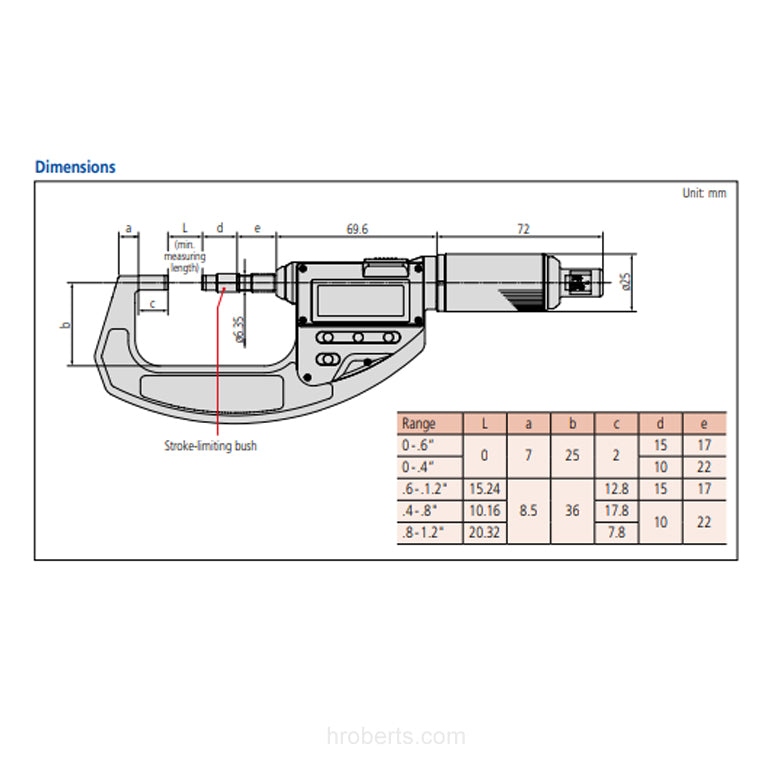

technical drawings
