Mitutoyo

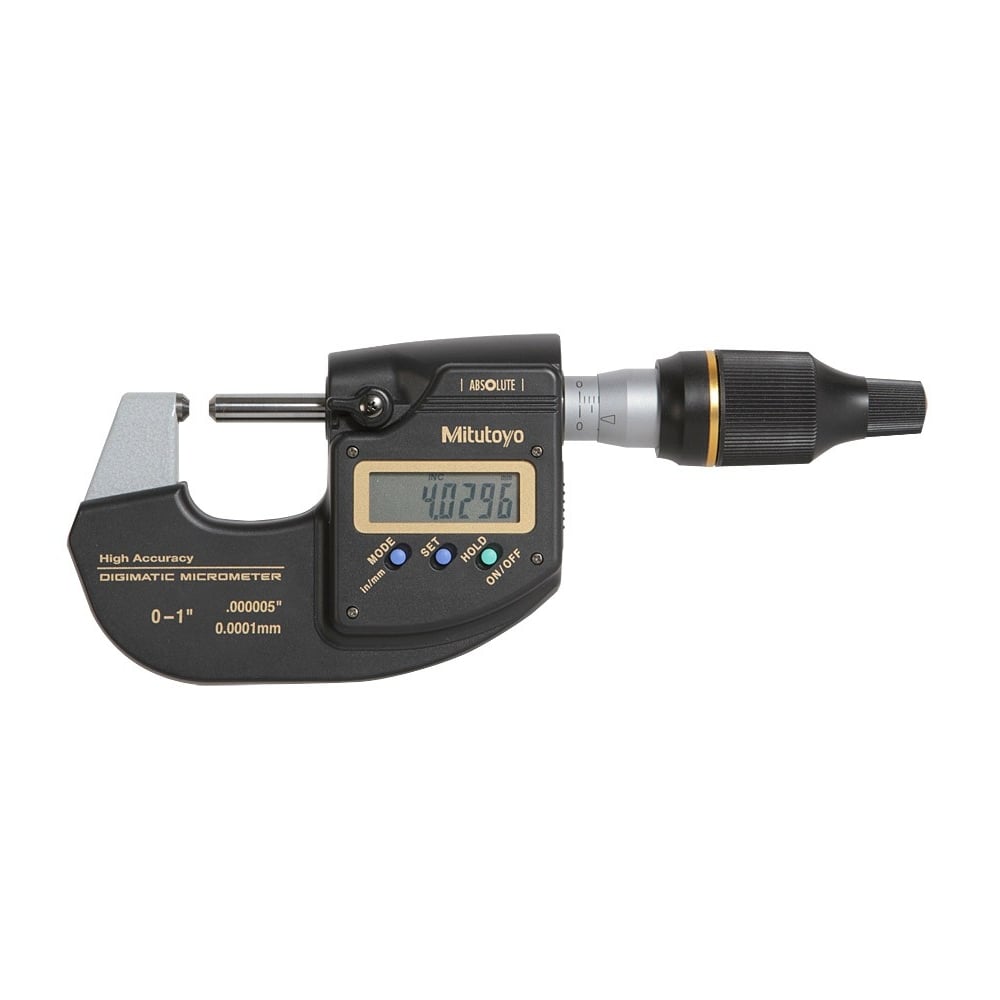

293-130-20 Digimatic Absolute Digital High- Accuracy Micrometer, Range 0-1" / 0-25.4mm, Resolution 0.000005", 0.00002" / 0.0001mm, 0.0005mm, with SPC Data Output
SKU:Code: 293-130-20
Sale
Sold out
Regular price
£1,355.00
Sale
Sold out
Sale price
£1,355.00
Regular price
£1,870.00
Excl. VAT
A world-leading 0.1 μm resolution makes this micrometer ideal for customers who need to make highly
accurate measurements with a hand-held tool.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Standard
- range 0-1" / 0-25.4mm
- display type Digital
- resolution 0.000005" / 0.00002" / 0.0001mm / 0.0005mm
- data output Yes
- measuring force 7 to 9 N
- measuring units Imperial / Metric
- spindle dia ⌀6.35mm
- constant-force device Ratchet Thimble
- max permissible errors ±0.00002"
- mass 400g
- measuring face ⌀3.2mm
- battery CR2032
- hold button Yes
- zero setting Yes
- abs measure system Yes
description

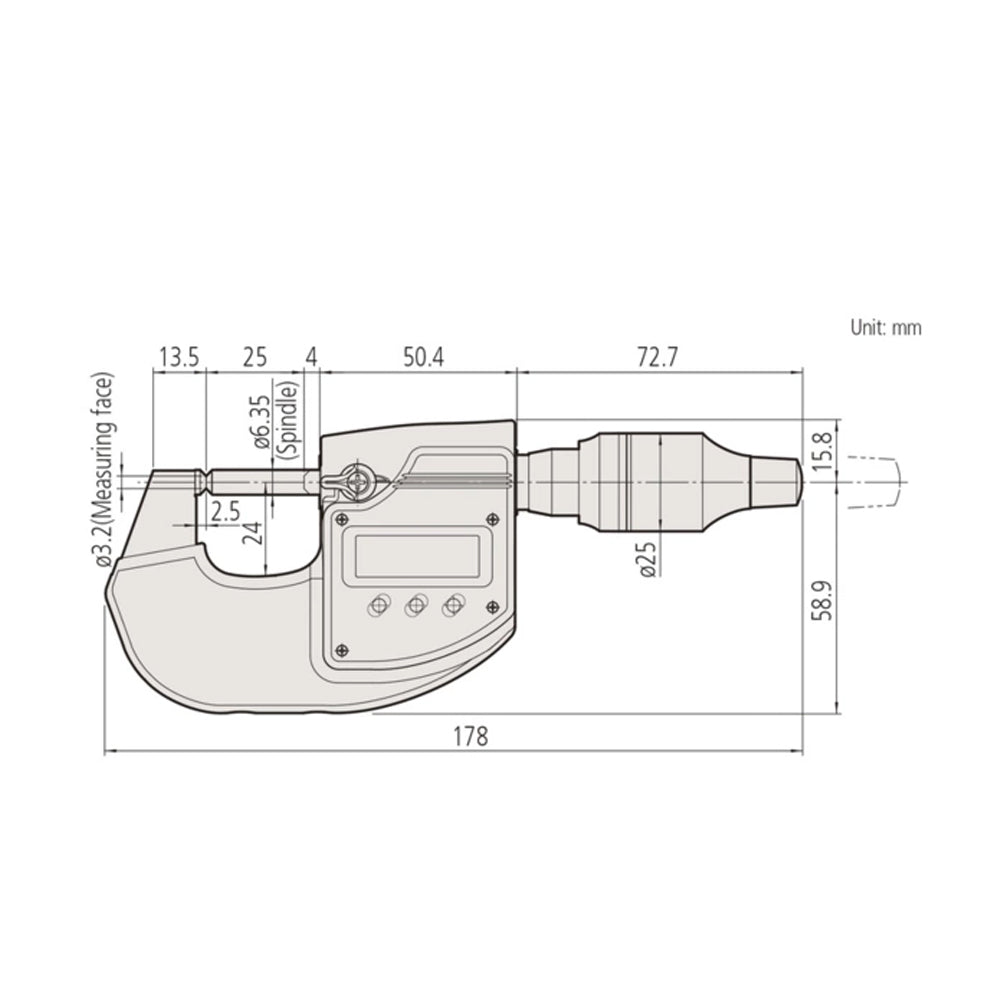

technical drawings
description
This Mitutoyo micrometer is the world first 0.1 µm (5µ_in) resolution handheld micrometer. Exceptional accuracy and resolution make this instrument ideal for SPC applications, enabling even very tightly toleranced dimensions to be effectively controlled. ABSOLUTE System scale for error free, high-speed measurement. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet thimble applies highly consistent measuring force to guarantee repeatable results. Digimatic data output
technical drawings
