Mitutoyo

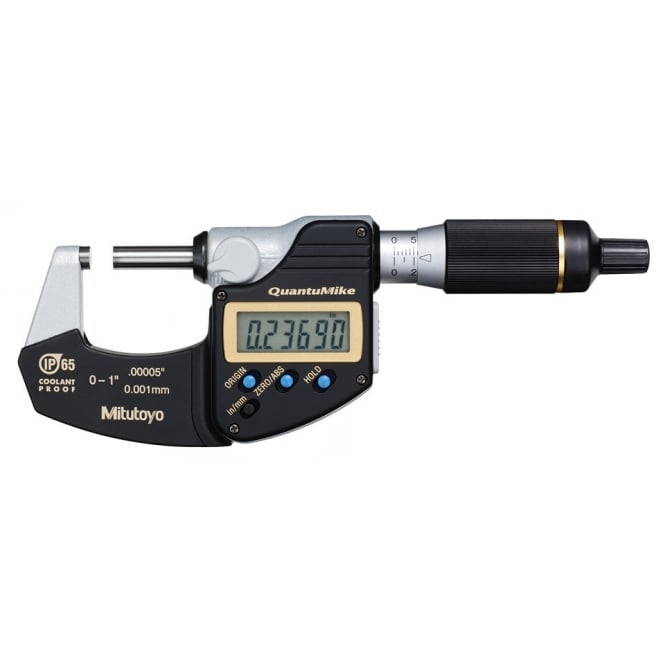

293-180-30 Digimatic Digital Quantumike Fast Action Micrometer, Range 0-1" / 0-25.4mm, Resolution 0.00005" / 0.001mm with SPC Data Output
SKU:Code: 293-180-30
Sale
Sold out
Regular price
£250.00
Sale
Sold out
Sale price
£250.00
Regular price
£351.00
Excl. VAT
A rapid action, waterproof Mitutoyo digital micrometer that enables measurements to be made several times faster than a standard micrometer.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Standard
- range 0-1" / 0-25.4mm
- display type Digital
- resolution 0.00005" / 0.001mm
- data output Yes
- ip rating IP65
- measuring force 7 to 12 N
- measuring units Imperial / Metric
- constant-force device Ratchet Thimble
- battery SR44
- hold button Yes
- zero setting Yes
- abs measure system Yes
description
description
A rapid action, waterproof Mitutoyo digital micrometer that enables measurements to be made several times faster than a standard micrometer. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet thimble guarantees repeatable measurement. Digimatic data output.
