Images are for illustration purposes only - Products may differ.

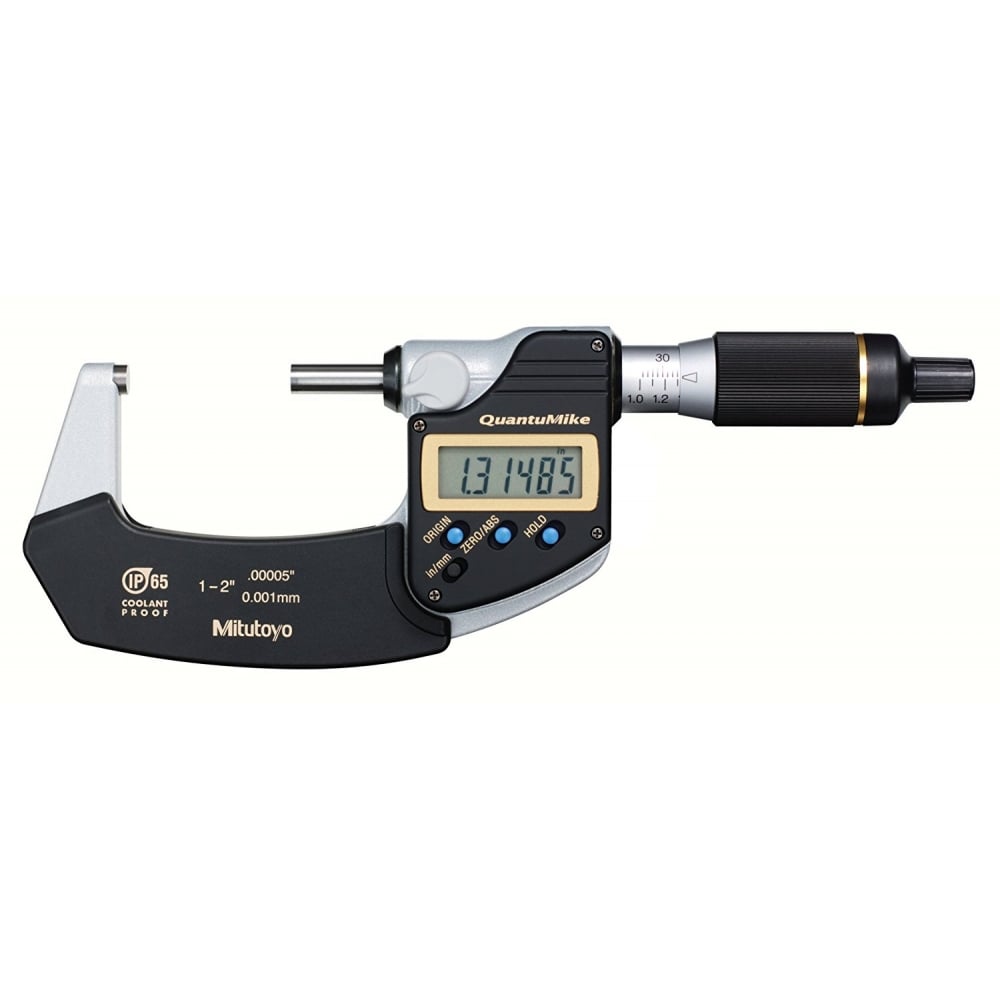

Mitutoyo 293-186-30 Digimatic Digital Quantumike Fast Action Micrometer, Range 1-2" / 25.4-50.8mm, Resolution 0.00005" / 0.001mm
SKU:Code: 293-186-30
This item is no longer available or has been discontinued.
Our recommended alternative
Micrometers
Mitutoyo 293-181-40 Digimatic Digital Quantumike Fast Action Micrometer, Range 1-2" / 25.4-50.8mm, Resolution 0.00005" / 0.001mm with SPC Data Output
Regular price £280.50Sale price £280.50 Regular priceExcl. VAT£374.00
A rapid action, waterproof Mitutoyo digital micrometer that enables measurements to be made several times faster than a standard micrometer.
Need more information? Ask a question or contact us.
Specification
Specification
- type Standard
- range 1-2" / 25.4-50.8mm
- display type Digital
- resolution 0.00005" / 0.001mm
- data output No
- ip rating IP65
- measuring force 7 to 12 N
- measuring units Imperial / Metric
- constant-force device Ratchet Thimble
- battery SR44
- hold button Yes
- zero setting Yes
- abs measure system Yes
- brand Mitutoyo
description
description
A rapid action, waterproof Mitutoyo digital micrometer that enables measurements to be made several times faster than a standard micrometer. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet thimble guarantees repeatable measurement. Digimatic data output.
