Mitutoyo

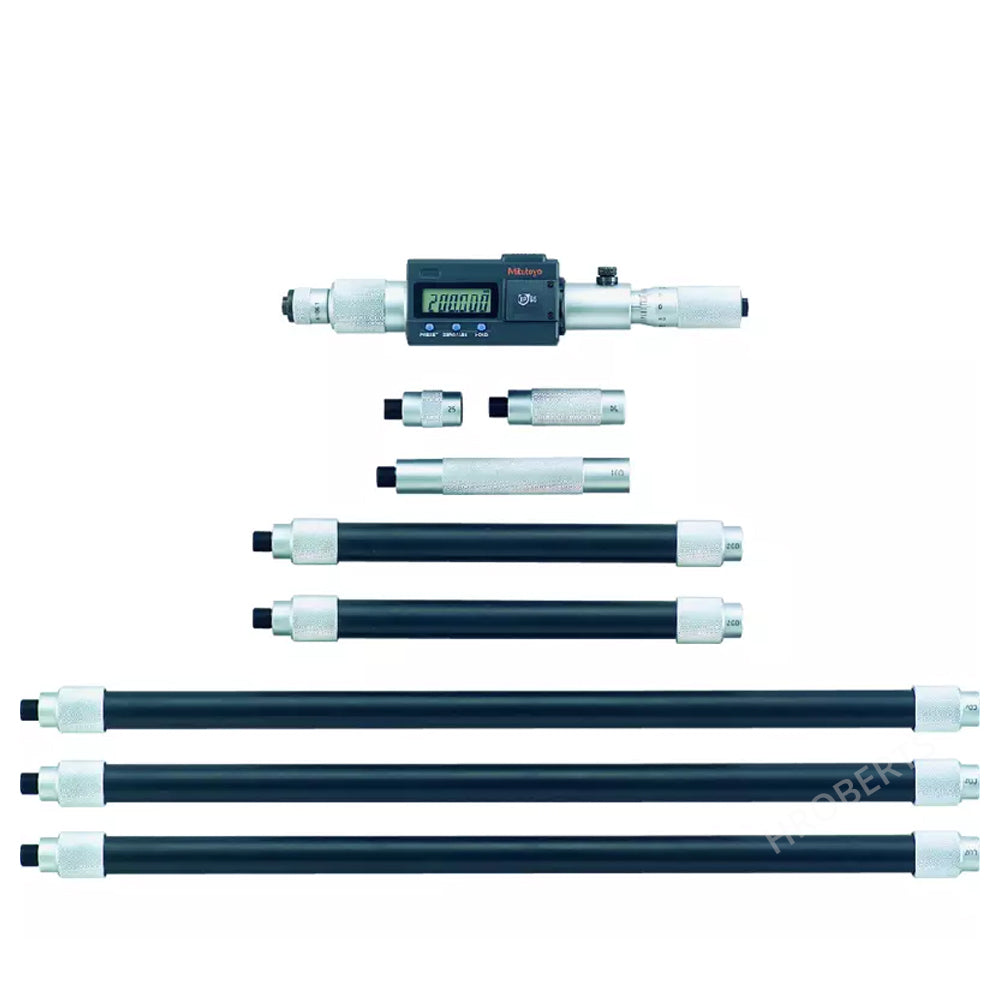

339-304 Digimatic Digital Extension Tube Inside Micrometer, Range 8-60" / 203.2-1524mm, Resolution 0.001mm / 0.0001"

Code: 339-304

Sale Sold out £1,350.00
Save: 25% Sold out £1,350.00 £1,800.00
Excl. VAT

Request a Quote

Add to Compare

Wide range of inside measurements possible by combining extension tubes with the micrometer head. The sleeve is rotated to adjust the index line position when setting to a length standard.

  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.
View full details
Specification
  • type Extension Tube Type
  • range 8-60" / 203.2-1524mm
  • display type Digital
  • graduations 0.001mm / 0.0001"
  • data output Yes
  • ip rating IP65
  • measuring units Metric / Imperial
  • extension rod 1" 2" 4" 8" (2 pcs.) 16" (3 pcs.)
  • measuring face Carbide Tipped
  • main unit 8-9" / 200-225mm
description

IP65 (water-proof) protection level that enables use in the presence of cutting fluid. A large-character LCD display. Storage of 2 preset values for use when setting to an inside length standard. A function lock that prevents accidental changing of the reference setting during measurement. An output port for measurement data that enables inclusion in a statistical process control or networked measurement system. Ability to use Interface Input Tools that enable conversion of measurement data to keyboard signals that are then directly input to cells in off-the-shelf spreadsheet software.
