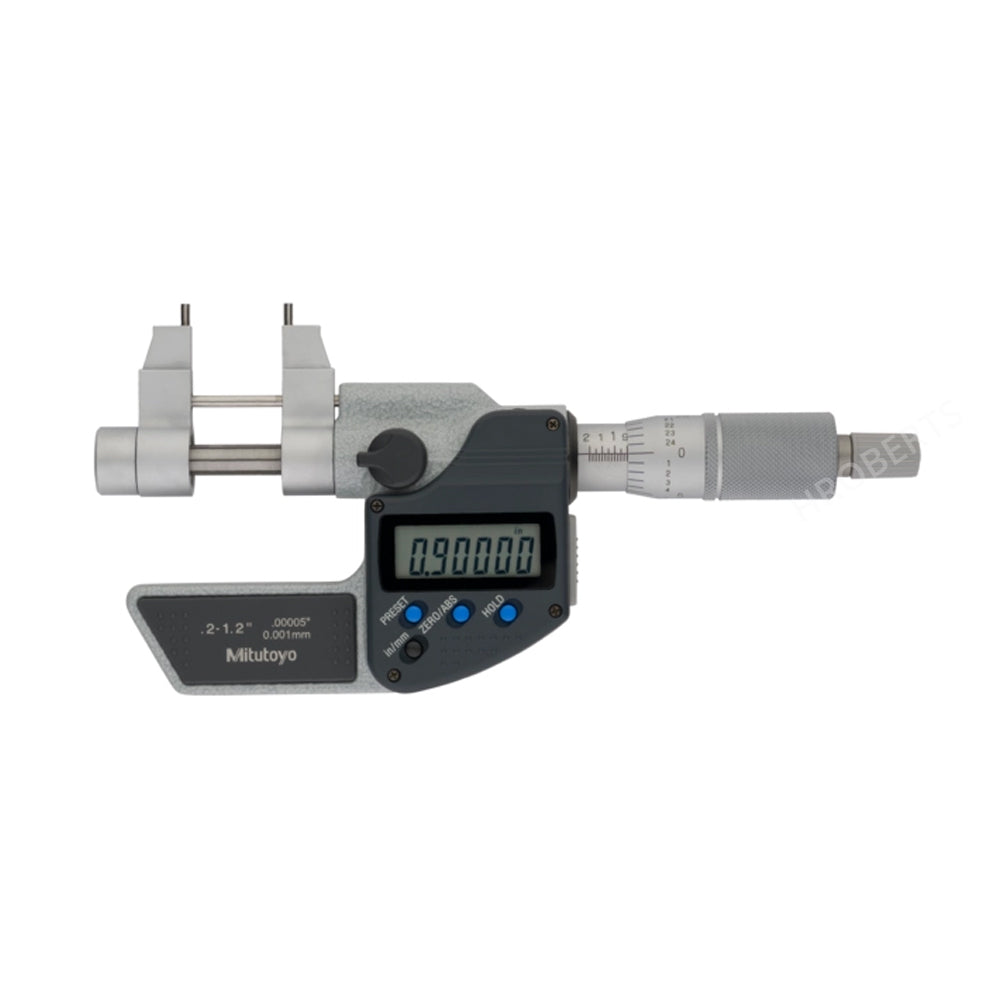

Mitutoyo 345-350-30 Digimatic Digital Caliper Jaw Inside Micrometer, Range 0.2-1.2" / 5.8-30.48mm, Resolution 0.00005" / 0.001mm, with SPC Data Output
SKU:Code: 345-350-30
Sale
Sold out
Regular price
£507.00
Save: 25%
Sold out
Sale price
£507.00
Regular price
£676.00
Excl. VAT
Designed for accurate measurement of the diameter of small and short holes or bores. Carbide measuring faces. Equipped with a constant measuring-force device
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Caliper Jaw Type
- range 0.2-1.2" / 5.8-30.48mm
- display type Digital
- graduations 0.00005" / 0.001mm
- data output Yes
- measuring units Imperial / Metric
- max permissible errors ±0.00025" (±5 µm)
- measuring face Carbide Tipped
- brand Mitutoyo
description
description
The Digimatic Caliper Jaw Inside Micrometer offers you the following benefits:
Carbide measuring faces
A setting standard (optional) is needed to accurately set the micrometer to the reference point.

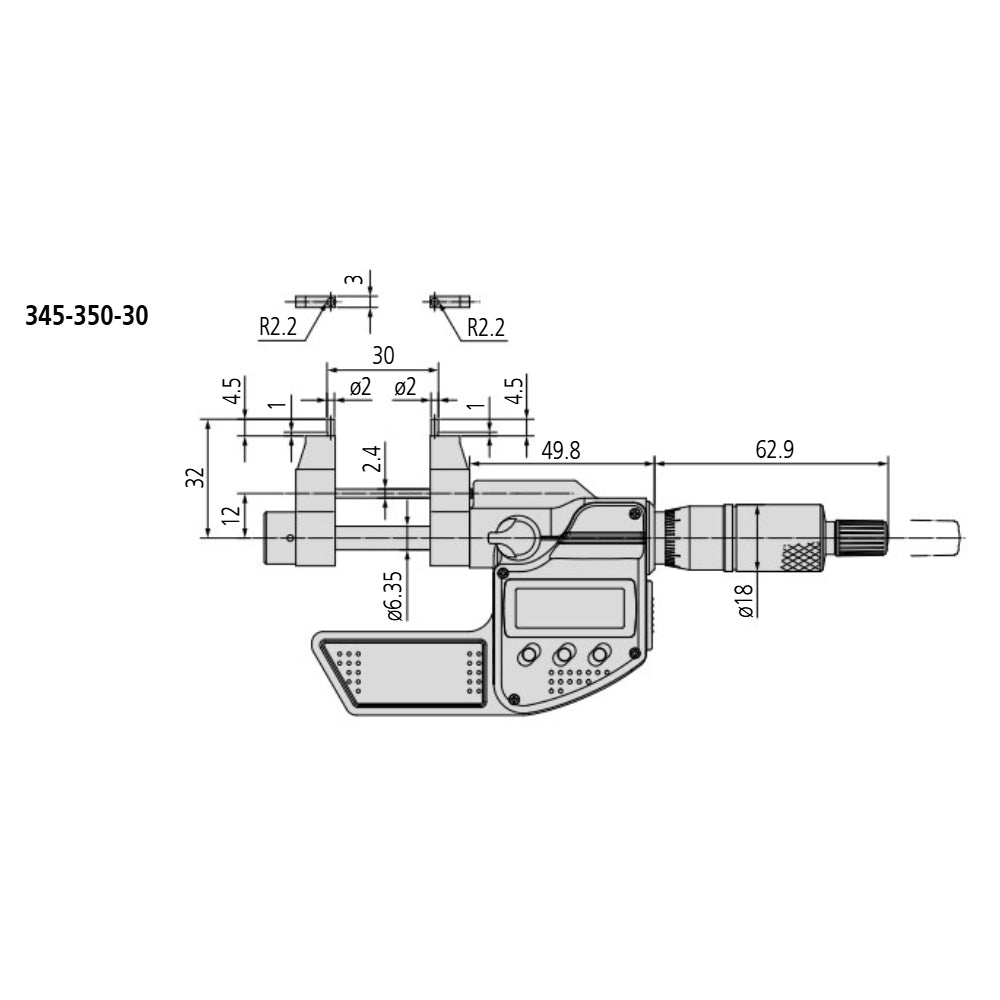

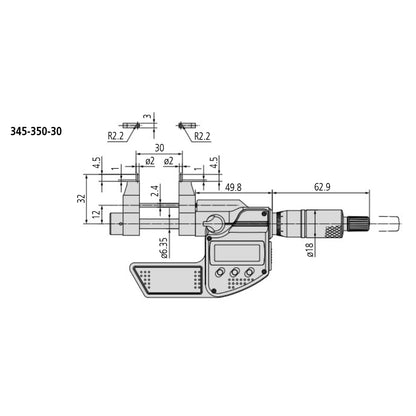

technical drawings
