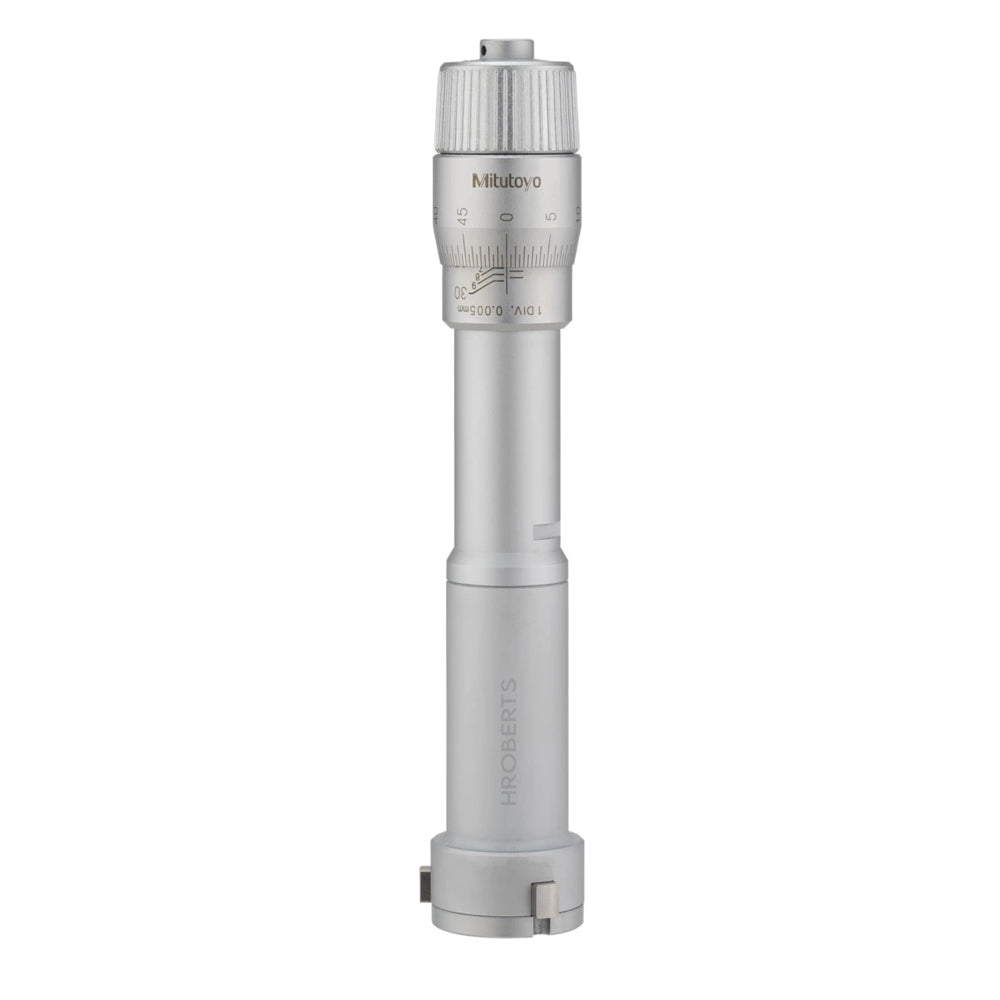

Mitutoyo 368-767 Holtest Bore Micrometer, 3-Point Contact, Range 25-30mm, Graduation 0.005mm
SKU:Code: 368-767
Sale
Sold out
Regular price
£276.75
Save: 25%
Sold out
Sale price
£276.75
Regular price
£369.00
Excl. VAT
Analogue bore gauges are precision measurement instruments used to measure the inside diameter of a hole, cylinder, or other internal surfaces with high accuracy
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Standard
- range 25-30mm
- display type Non-Digital
- graduations 0.005mm
- max measuring depth 94mm
- measuring units Metric
- remarks 3-Point Contact
- measuring face Hardened Steel Anvils
- with rings No
- blind bore measurement No
- brand Mitutoyo
description
description
A non-digital 3-point Mitutoyo bore micrometer with Hardened Steel Anvils. The 3-point design enables stable measurement through automatic centering. The maximum measuring depth can be increased by 150mm using an optional extension rod if required. Ratchet stop guarantees repeatable measurement. Steel setting rings (optional) are available for accurate setting prior to measurement
