Images are for illustration purposes only - Products may differ.
Mitutoyo
368-994 Holtest Bore Micrometer Set, 3-Point Contact, Range 100-200mm, Graduation 0.005mm, Supplied with Setting Rings
SKU:Code: 368-994
Sale
Sold out
Regular price
£2,940.00
Save: 25%
Sold out
Sale price
£2,940.00
Regular price
£3,920.00
Excl. VAT
Analogue bore gauges are precision measurement instruments used to measure the inside diameter of a hole, cylinder, or other internal surfaces with high accuracy
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Standard
- range 100-200mm
- display type Non-Digital
- graduations 0.005mm
- max measuring depth 161mm
- measuring units Metric
- remarks 3-Point Contact
- mass 4630 g
- measuring face Hardened Steel Anvils
- remarks 1 368-774 / 368-775 / 368-776 / 368-777
- with rings Yes
- size rings included 125mm 175mm
- blind bore measurement No
description
description

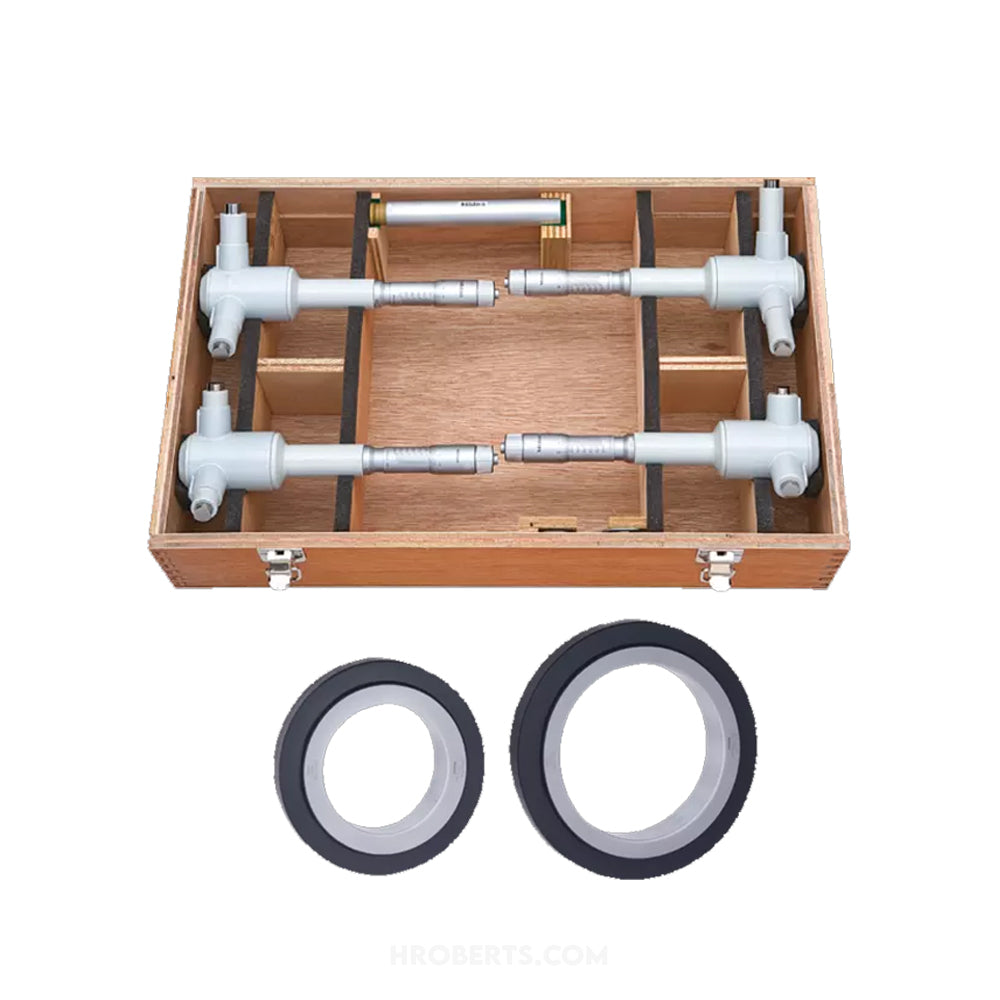

A Mitutoyo internal micrometer set consisting of individual gauges, the appropriate setting rings and an extension tube for depth measurement applications. Contact surfaces made of hardened steel. A ratchet guarantees repeatable measurement.
technical drawings
PDF downloads
accessories
