Mitutoyo

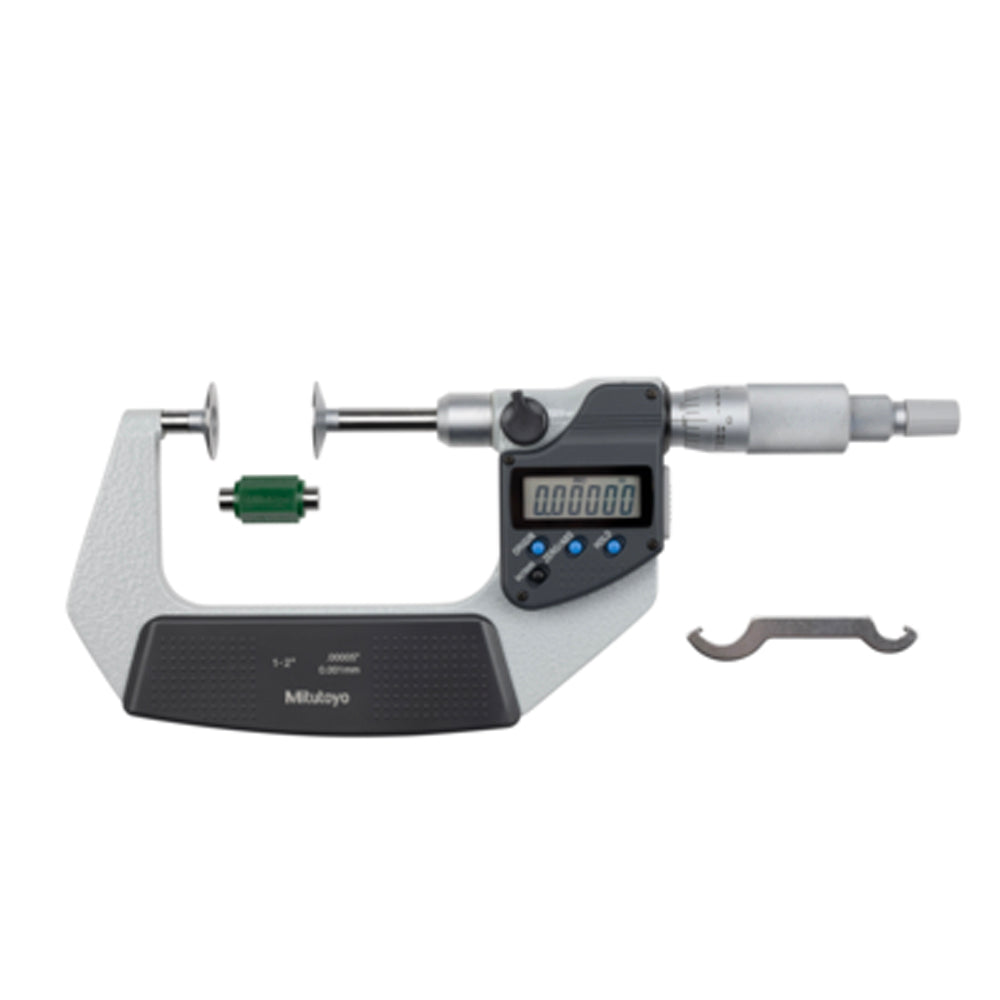

369-351-30 Digimatic Digital Non-Rotating Spindle Disc Micrometer, Range 1-2" / 25.4-50.8mm, Resolution 0.00005" / 0.001mm with SPC Data Output, Disc Dia 20mm
SKU:Code: 369-351-30
Sale
Sold out
Regular price
£635.25
Save: 25%
Sold out
Sale price
£635.25
Regular price
£847.00
Excl. VAT
This Digimatic Disc Micrometer allows you to measure a range of different materials
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Disc
- range 1-2" / 25.4-50.8mm
- display type Digital
- resolution 0.00005" / 0.001mm
- data output Yes
- measuring units Imperial / Metric
description
description
This Digimatic Disc Micrometer allows you to measure a range of different materials. It offers you the following benefits: Non-rotating spindle and disc-shaped measuring surfaces. Measuring the root tangent length of spur and helical gears Measurable range of gear pitch: 0,5-6 module Suitable for measuring felt, rubber, cardboard, fabric etc
