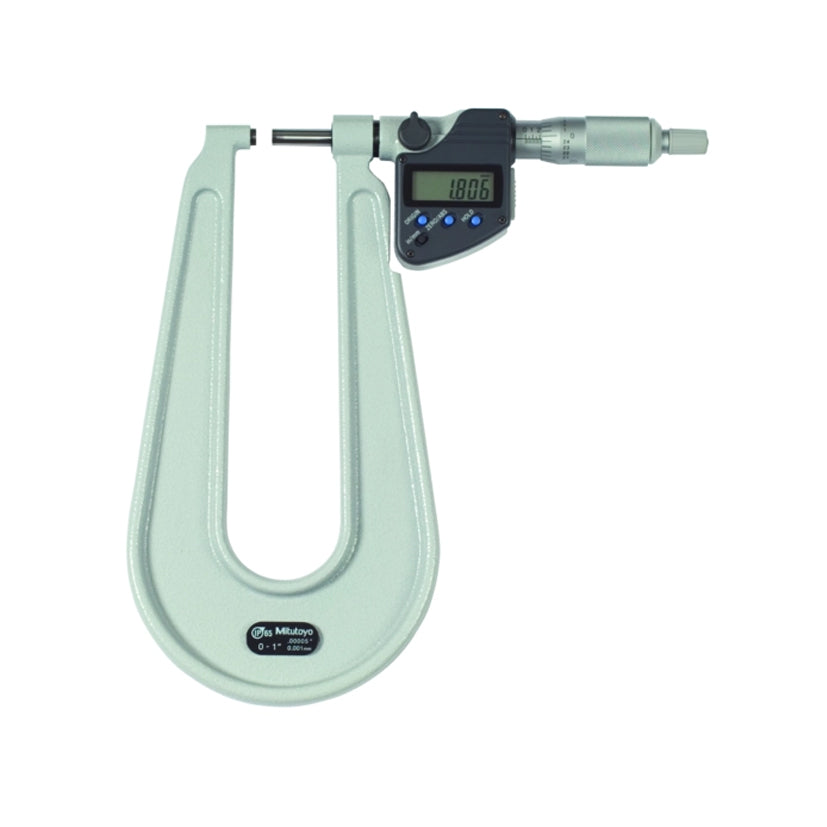

Mitutoyo 389-371-30 Digimatic Digital Sheet Metal Micrometer, Range 0-1" / 0-25.4mm, Resolution 0.00005" / 0.001mm, Throat Depth 150mm, Anvil Spherical, Spindle Spherical, IP65 with SPC Data Output
SKU:Code: 389-371-30
Sale
Sold out
Regular price
£490.50
Save: 25%
Sold out
Sale price
£490.50
Regular price
£654.00
Excl. VAT
The large throat depth makes this micrometer ideal for measuring the thickness of sheet metal at a considerable distance from the edge.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Sheet Metal
- range 0-1" / 0-25.4mm
- display type Digital
- resolution 0.00005" / 0.001mm
- accuracy ±0.0002" (±4 μm)
- data output Yes
- flatness 0.000024" (0.6 μm)
- ip rating IP65
- measuring units Imperial / Metric
- throat depth 6" (150 mm)
- hold button Yes
- zero setting Yes
- parallelism 0.00012" (3 μm)
- brand Mitutoyo
description
description
This Digimatic Sheet Metal Micrometer is designed with a deep frame, for measuring the thickness of sheet material.
