Mitutoyo

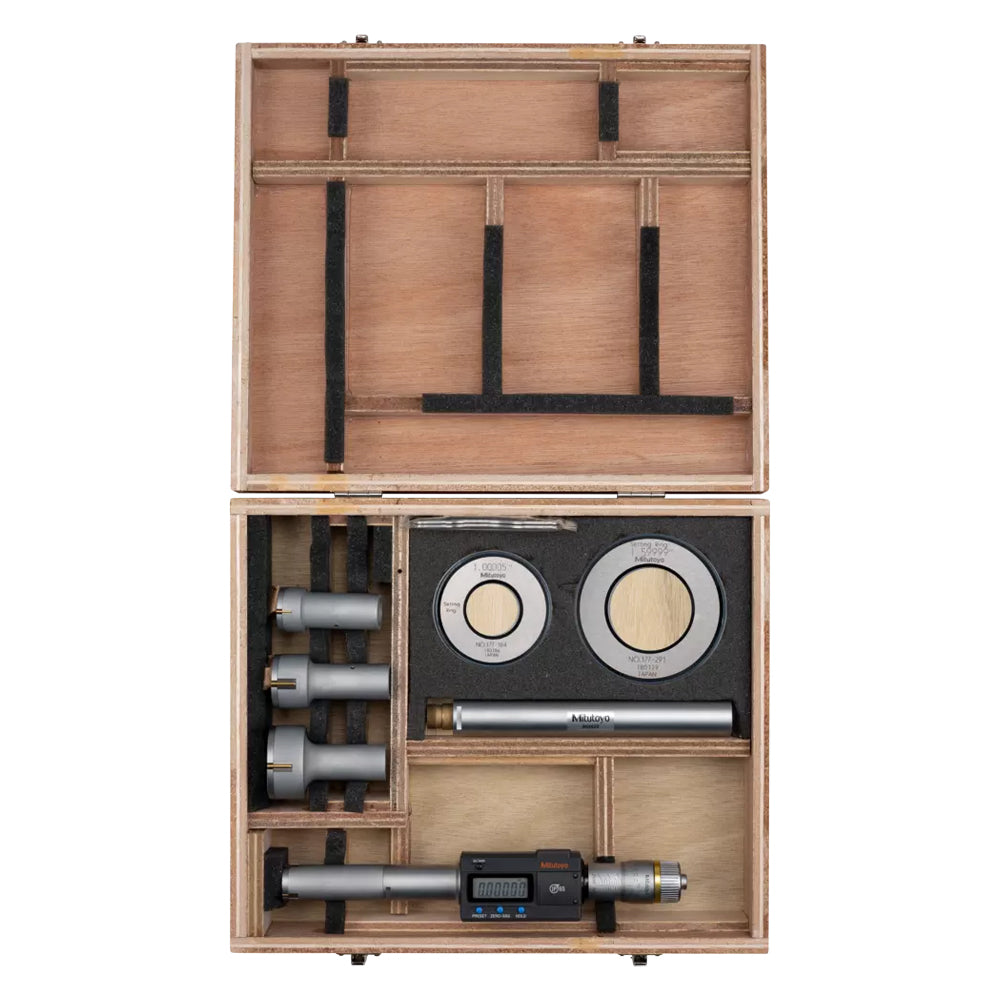

468-978 Digmatic Digital Holtest Bore Micrometer Interchangable-Head Set, 3-Point Contact, Range 0.8-2" / 20.32-50.8mm, Resolution 0.00005" / 0.001mm, IP65, with SPC Data Output, Supplied with Setting Rings and Extension
SKU:Code: 468-978
Sale
Sold out
Regular price
£2,070.00
Sale
Sold out
Sale price
£2,070.00
Regular price
£2,860.00
Excl. VAT
Advantages of digital bore gauging include its speed, precision, and ease of use compared to traditional manual methods. It allows for efficient quality control and ensures that components meet the required specifications.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Standard
- range 0.8-2" / 20.32-50.8mm
- display type Digital
- resolution 0.00005" / 0.001mm
- data output Yes
- ip rating IP65
- max measuring depth 93mm / 103.8mm
- measuring units Imperial / Metric
- remarks 3-Point Contact
- measuring face Titanium-coated measuring pins
- bore gauge heads 4
- digital display units 1
- with rings Yes
- size rings included 1" 1.6"
- blind bore measurement Yes
description
description
A water-resistant Mitutoyo bore gauge comprising a digital/analogue display unit and measuring head. Suitable for measuring to the bottom of blind holes. Titanium-coated contact faces for enhanced durability. Digimatic data output. A ratchet stop guarantees repeatable measurement. Zero-setting, Origin restoration, Data hold, 2-point preset, Function lock, inch/mm readout, Automatic power ON/OFF, Error alarm, Data output
