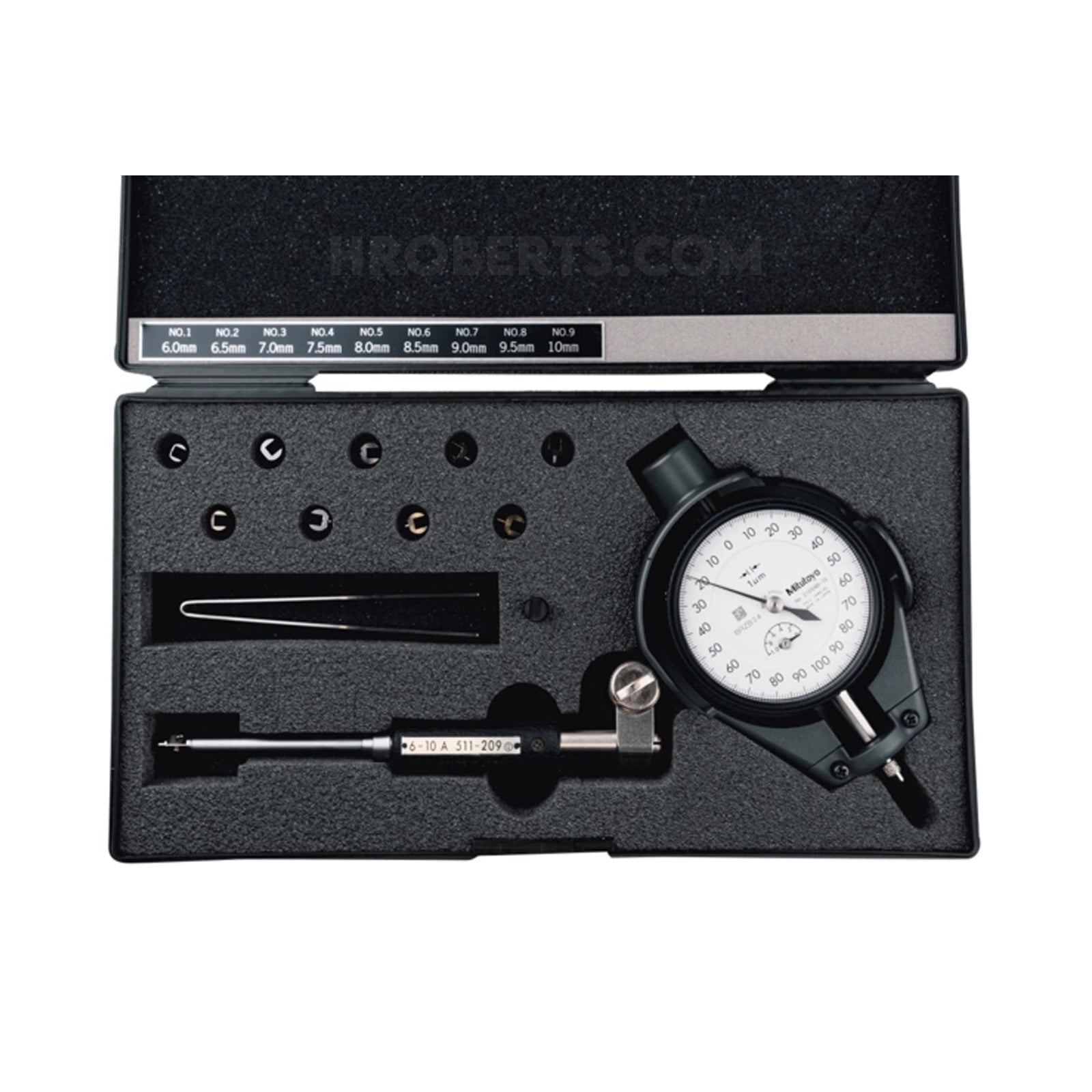

Mitutoyo 511-212 Small Hole Bore Gauge, Range 0.24-0.4", Graduation 0.0001", Probe Depth 2"
SKU:Code: 511-212
This item is no longer available or has been discontinued.
The interchangeable anvils used on this gauge are made of high-grade tool steel.
Need more information? Ask a question or contact us.
Specification
Specification
- type Small Hole Bore Gauges
- range 0.24-0.4"
- display type Non-Digital
- graduations 0.0001"
- accuracy 0.0002"
- measuring force 2 N or less
- measuring units Imperial
- probe depth 2"
- repeatability 0.00008"
- dial indicator 2923AB-10
- anvil 9
- brand Mitutoyo
description
description
The interchangeable anvils used on this gauge are made of high-grade tool steel. Interchangeable washers 0.5 mm thick are supplied as standard accessories to enable setting the 10 - 18.5mm / 0.4 - 0.74" models in small steps. The dial indicator is fully protected by a rugged cover. An optional inside-length standard, such as a setting ring or Inside Micro Checker is required for accurately setting the gauge before measurement.
