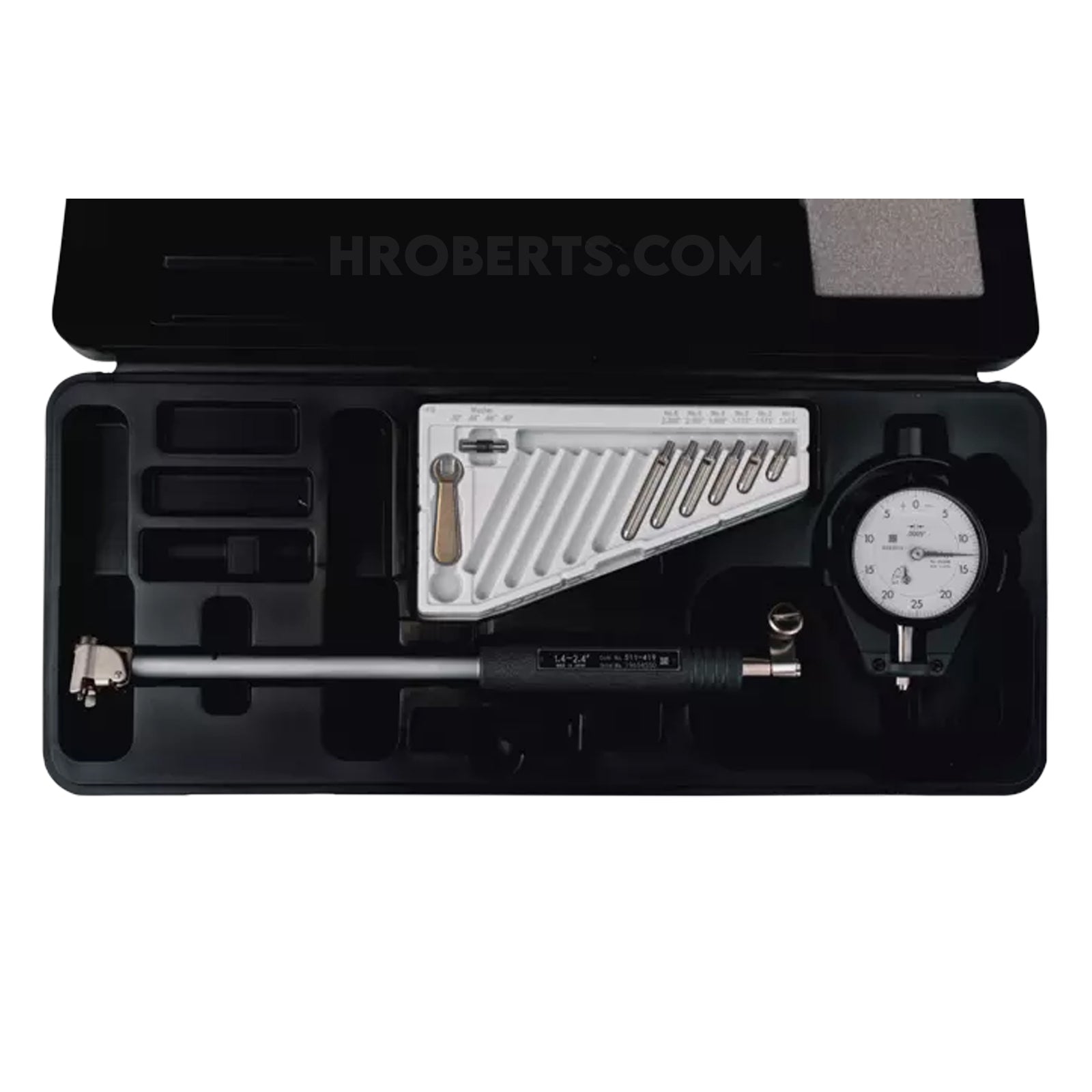

Mitutoyo 511-429-20 Blind Hole Bore Gauge, Range 1.4-2.4", Graduation 0.0005", Probe Depth 6"
SKU:Code: 511-429-20
Sale
Sold out
Regular price
£377.25
Save: 25%
Sold out
Sale price
£377.25
Regular price
£503.00
Excl. VAT
Flat-bottomed head design enables measurement right down to the bottom of blind holes or bores.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Small Hole Bore Gauges
- range 1.4-2.4"
- display type Non-Digital
- graduations 0.0005"
- accuracy 0.0002"
- measuring force 4 N or less
- measuring units Imperial
- probe depth 6"
- repeatability 0.00008"
- dial indicator 2923AB-10
- anvil 6
- brand Mitutoyo
description
description
Flat-bottomed head design enables measurement right down to the bottom of blind holes or bores. Carbide-tipped contact point for durability. Extension rods (optional) can be attached for measuring deep holes. Wide measuring range with sub-anvils. An optional inside-length standard, such as a setting ring or Inside Micro Checker is required for accurately setting the gauge before measurement.
